Page 6
3.

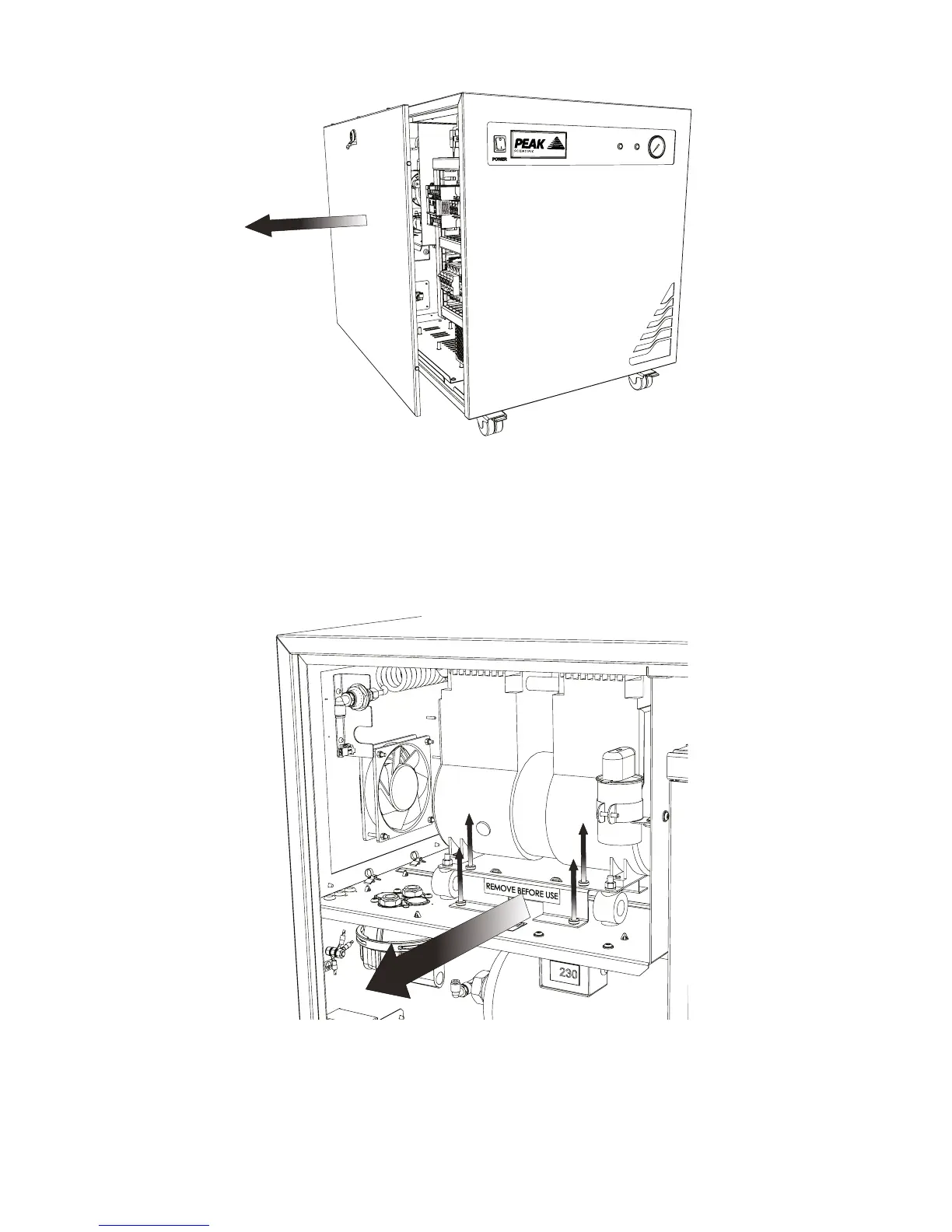

Once unlocked remove the left hand side panel, ensuring you disconnect the earth
lead located in the lower middle of the panel.
4.
The transit bracket is located below the compressor and has a sticker on it stating
‘Remove before use’. To remove the transit bracket, remove the four screws as
indicated, then slide the bracket out from underneath the compressor. Please retain
the bracket and screws for future transportation.
To Next Page
