Page 8
8.
7.

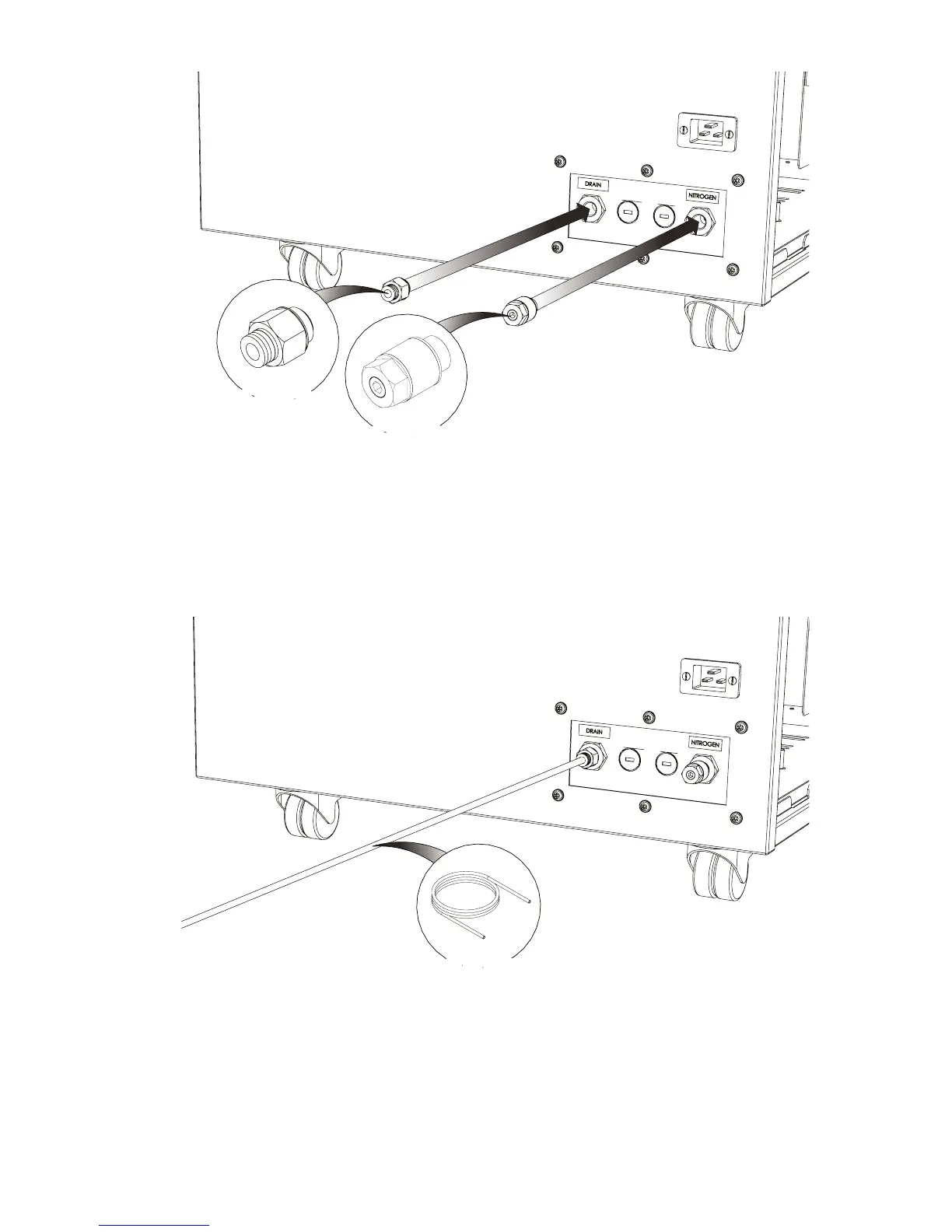

Select the ¼”- 6mm Push Fit Fitting 02-4600 and attach to the Drain port at the rear
of the generator. Attach the Flow Control Silencer 02-1096 to the Nitrogen Port.
Connect the 6mm PE Tubing 00-1282 to the ¼”- 6mm Push Fit Fitting 02-4600.
Fit the other end of the tubing to a suitable drain connection or container. The
container MUST NOT have an airtight seal as water and air will be expelled
periodically under a slight pressure.
02-4600
02-1096
00-1282
To Next Page
