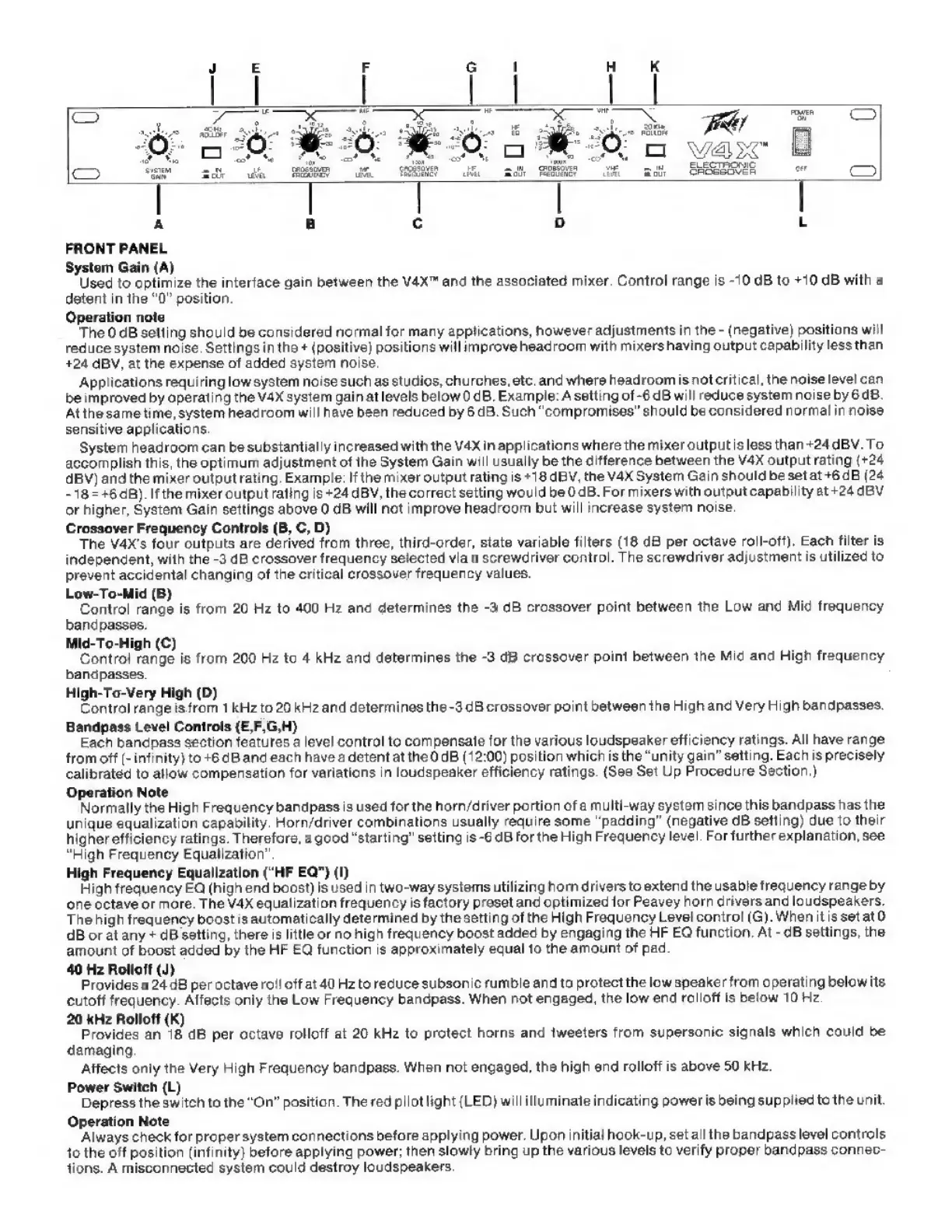

FRONT
PANEL
System
Gain
(A)
Used
to
optimize
the
interface
gain
between
the
V4X™
and
the
associated
mixer.
Control
range
is
-10
dB
to
+10
dB
with
a
detent
in
the
"0"
position.
Operation
note
The
0
dB
setting
should
be
considered
normal
for
many
applications,
however
adjustments
in
the
-
(negative)
positions
will
reduce
system
noise.
Settings
in
the
*
(positive)
positions
will
improve
headroom
with
mixers
having
output
capability
less
than
+24
dBV,
at
the
expense
of
added
system
noise.
Applications
requiring
low
system
noise
such
as
studios,
churches,
etc.
and
where
headroom
is
not
critical,
the
noise
level
can
be
improved
by
operating
the
VAX
system
gain
at
levels
below
0
dB.
Example:
A
setting
of
-6
dB
will
reduce
system
noise
by
6
dB.
At
the
same
time,
system
headroom
will
have
been
reduced
by
6
dB.
Such
“compromises”
should
be
considered
normal
in
noise
sensitive
applications.
System
headroom
can
be
substantially
increased
with
the
V4X
in
applications
where
the
mixer
output
is
less
than
+24
dBV.
To
accomplish
this,
the
optimum
adjustment
of
the
System
Gain
will
usually
be
the
difference
between
the
V4X
output
rating
(+24
dBV)
and
the
mixer
output
rating.
Example:
If
the
mixer
output
rating
is
+18
dBV,
the
VAX
System
Gain
should
be
set
at
«6dB
(24
-18
=+6
dB).
If
the
mixer
output
rating
is
+24
dBV,
the
correct
setting
would
be
0
dB.
For
mixers
with
output
capability
at*24
dBV
or
higher,
System
Gain
settings
above
0
dB
will
not
improve
headroom
but
will
increase
system
noise.
Crossover
Frequency
Controls
(B,
C,
D)
The
VAX's
four
outputs
are
derived
from
three,
third-order,
state
variable
filters
(18
dB
per
octave
roll-off).
Each
filter
is
independent,
with
the
-3
dB
crossover
frequency
selected
via
a
screwdriver
control.
The
screwdriver
adjustment
is
utilized
to
prevent
accidental
changing
of
the
critical
crossover
frequency
values.
Low-To-Mid
(B)
Control
range
is
from
20
Hz
to
400
Hz
and
determines
the
-3
dB
crossover
point
between
the
Low
and
Mid
frequency
bandpasses.
Mid-To-High
(C)
Control
range
is
from
200
Hz
to
4
kHz
and
determines
the
-3
dB
crossover
point
between
the
Mid
and
High
frequency
bandpasses.
High-To-Very
High
(D)
Control
range
is
from
1
kHz
to
20
kHz and
determines
the
-3
dB
crossover
point
between
the
High
and
Very High
bandpasses.
Bandpass
Level
Controls
(E,F,G,H)
Each
bandpass
section
features
a
level
control
to
compensate
for
the
various
loudspeaker
efficiency
ratings.
All
have
range
from
off
(-
infinity)
to
+6
dB
and
each
have
a
detent
at
the
0
dB
(12:00)
position
which
is
the
“unity
gain”
setting.
Each
is
precisely
calibrated
to
allow
compensation
for
variations
in
loudspeaker
efficiency
ratings.
(See
Set
Up
Procedure
Section.)
Operation
Note
Normally
the
High
Frequency
bandpass
is
used
for
the
horn/driver
partion
of
a
multi-way
system
since
this
bandpass
has
the
unique
equalization
capability.
Horn/driver
combinations
usually
require
some
“padding”
(negative
dB
setting)
due
to
their
higher
efficiency
ratings.
Therefore,
a
good
"starting"
setting
is-6
dB
for
the
High
Frequency
level.
For
further
explanation,
see
“High
Frequency
Equalization”
High
Frequency
Equalization
("HF EQ")
(I)
High
frequency
EQ
(high
end
boost)
is
used
in
two-way
systems
utilizing
horn
drivers
to
extend
the
usable
frequency
range
by
one
octave
or
more.
The
VAX
equalization
frequency
is
factory
preset
and
optimized
for
Peavey
horn
drivers
and
loudspeakers.
The
high
frequency
boost
is
automatically
determined
by
the
setting
of
the
High
Frequency
Level
control
(G).
When
itis
set
at
O
dB
or
at
any
+
dB
setting,
there
is
little
or
no
high
frequency
boost added
by
engaging
the
HF
EQ
function.
At
-
dB
settings,
the
amount
of
boost
added
by
the
HF
EQ
function
is
approximately
equal
to
the
amount
of
pad.
40
Hz
Rolloff
(J)
Provides
a
24
dB
per
octave
roll
off
at
40
Hz
to
reduce
subsonic
rumble
and
to
protect
the
low
speaker
from
operating
below
its
cutoff
frequency.
Affects
only
the
Low
Frequency
bandpass.
When
not
engaged,
the
low
end
rolloff
is
below
10
Hz
20
kHz
Rolloff
(К)
Provides
an
18
dB
per
octave
rolloff
at
20
kHz
to
protect
horns
and
tweeters
from
supersonic
signals
which
could
be
damaging
Affects
only
the
Very
High
Frequency
bandpass.
When
not
engaged,
the
high
end
rolloff
is
above
50
kHz.
Power
Switch
(L)
Depress
the
switch
to
the
"On"
position.
The
red
pilot
light
(LED)
will
illuminate
indicating
power
is
being
supplied
to
the
unit.
Operation
Note
‘Always
check
for
proper
system
connections
before
applying
power.
Upon
initial
hook-up,
set
all
the
bandpass
level
controls
to
the
off
position
(infinity)
before
applying
power;
then
slowly
bring
up
the
various
levels
to
verify
proper
bandpass
connec-
tions.
A
misconnected
system
could
destroy
loudspeakers.
