Pecron E2000LFP - Page 13

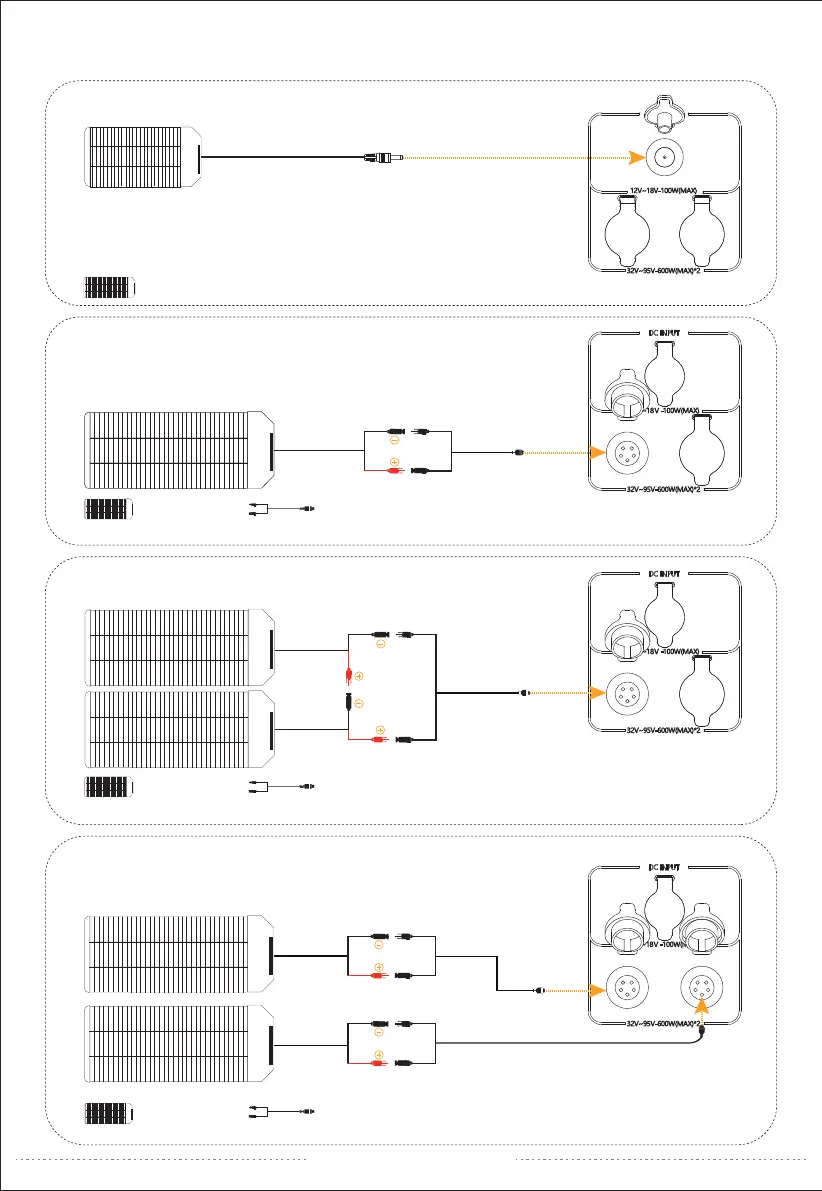

USING SOLAR PANELS TO CHARGE THE E2000 LFP
Using the pecron 100W /18V*1 （100W）to charge the E2000 LFP
18V
pecron 100W
pecron 100W*1 ※ 18V is the operating voltage of the solar panels
Using the pecron 200W /36V*1 （200W）to charge the E2000 LFP
36V
36V
MC4 Solar Charging Cable*1
※ 36V is the operating voltage of the solar panels
pecron 200W*1
Using the pecron 200W /36V*2 （400W）to charge the E2000 LFP
MC4 Solar Charging Cable*2
※ 36V is the operating voltage of the solar panels
pecron 200W*2
Using the pecron 200W /36V*2 （400W）to charge the E2000 LFP
MC4 Solar Charging Cable*1
※ 36V is the operating voltage of the solar panels
pecron 200W*2
36V
72V
36V
36V
36V
36V
36V
