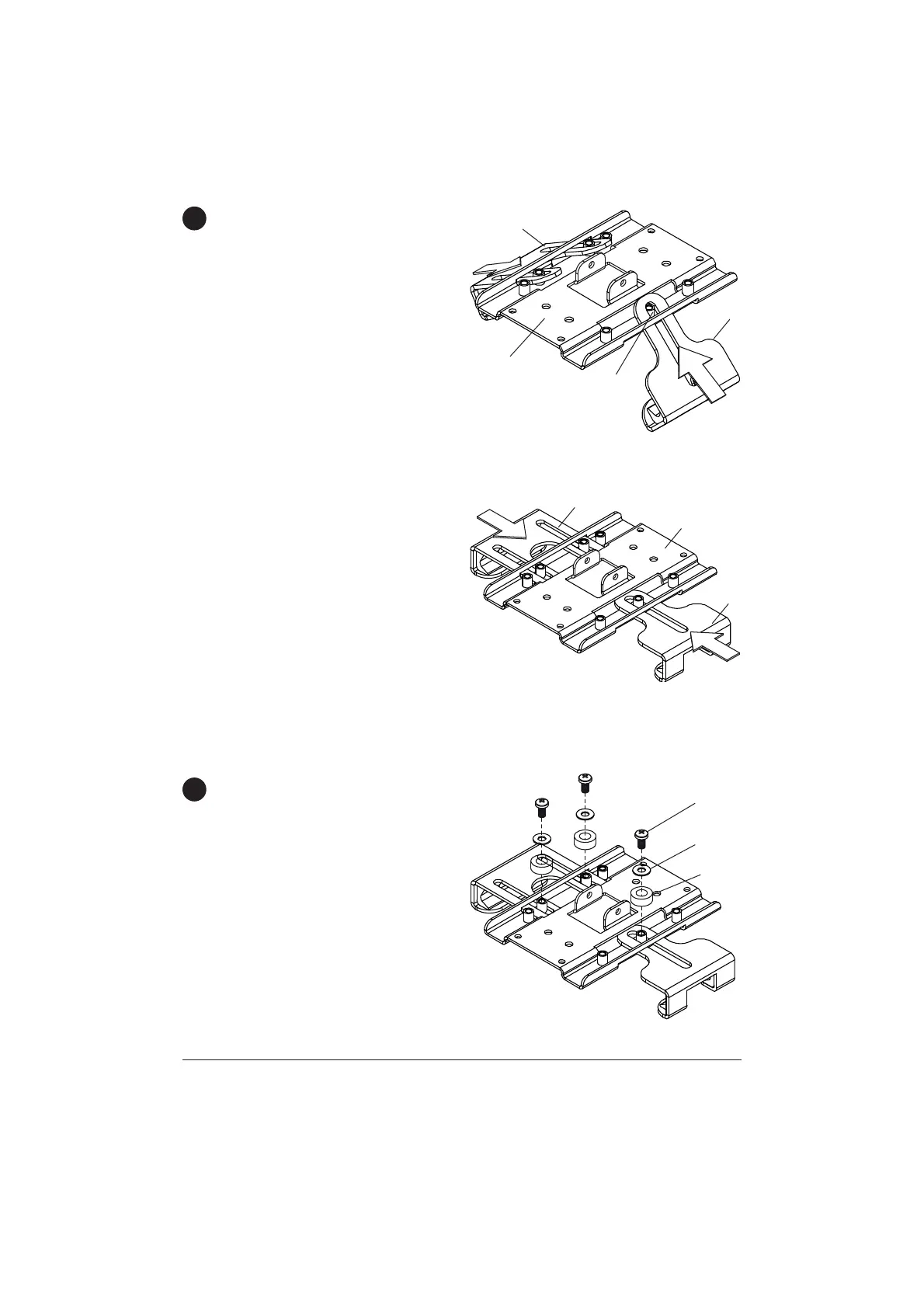

Fit top clamp (C) and bottom clamp (D) into main
plate (A) and over pins as shown in fi gures 1.1
and 1.2.
Secure with three 1/4" spacers (H), three M5
washers (F), and three M5 x 8 mm screws (G).
Do not tighten screws.
A
C
D
D
C
A
fi g. 1.1
fi g. 1.2
G
H
F
PINS
