4
2015-10-15 #:180-9068-1
Battery Installation and Replacement

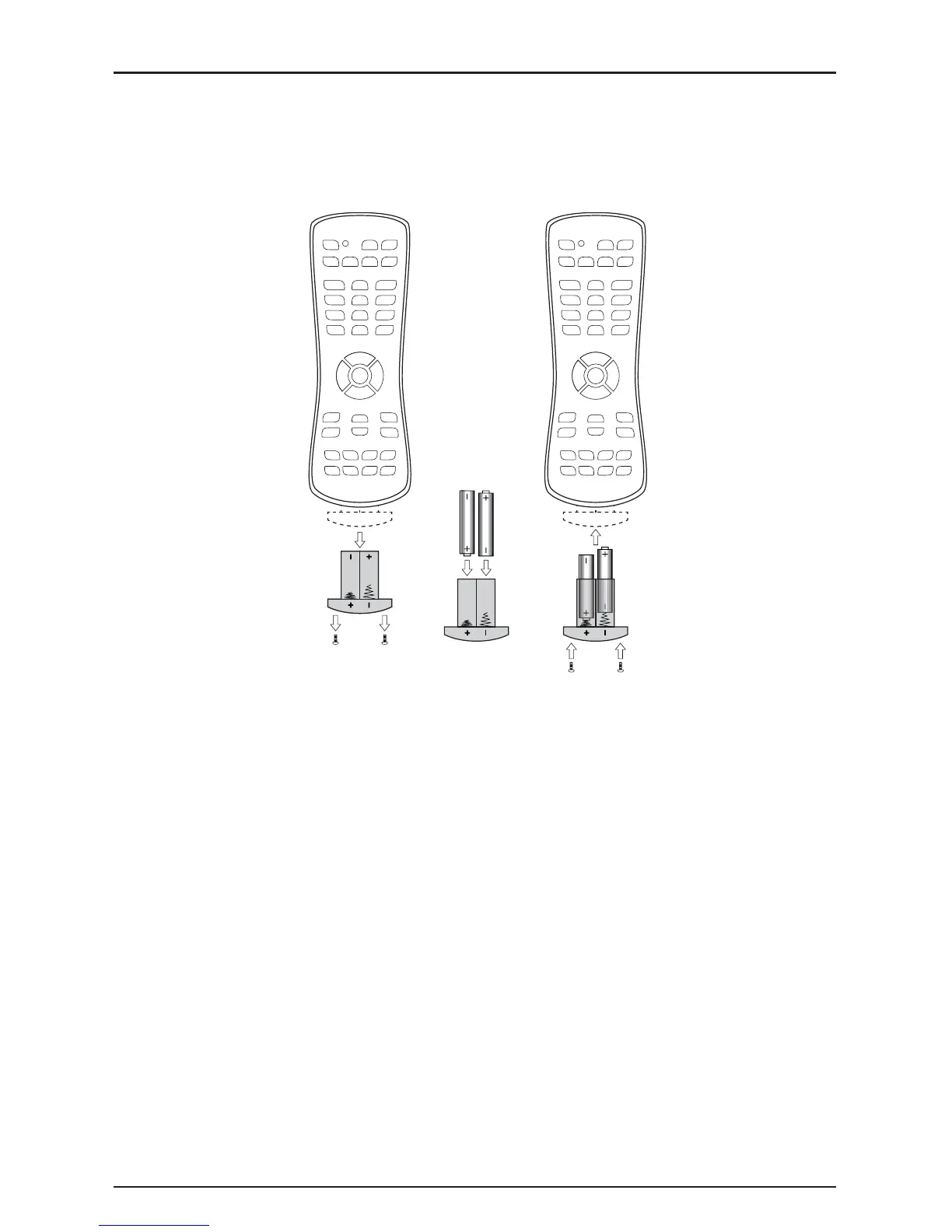

Remove the two screws from the battery holder as shown. Pull the battery holder out of the bottom of
the remote control and remove the batteries.
Insert two new 1.5V AAA batteries into the battery holder as shown. Ensure the positive and negative
marks on the batteries are correctly oriented with the markings on the inside of the remove control's
battery compartment.
Insert the battery holder back into the battery compartment of the remote control. Tighten both battery
holder screws, making sure the screws are tightened all the way to maintain a waterproof seal (do not
over tighten).
Note: The Peerless-AV Waterproof Universal Remote Control is supplied with batteries already
installed.
If the Red LED light on the remote fails to illuminate when a button is pressed, the batteries may need
to be replaced. Follow the directions below to replace the batteries.
