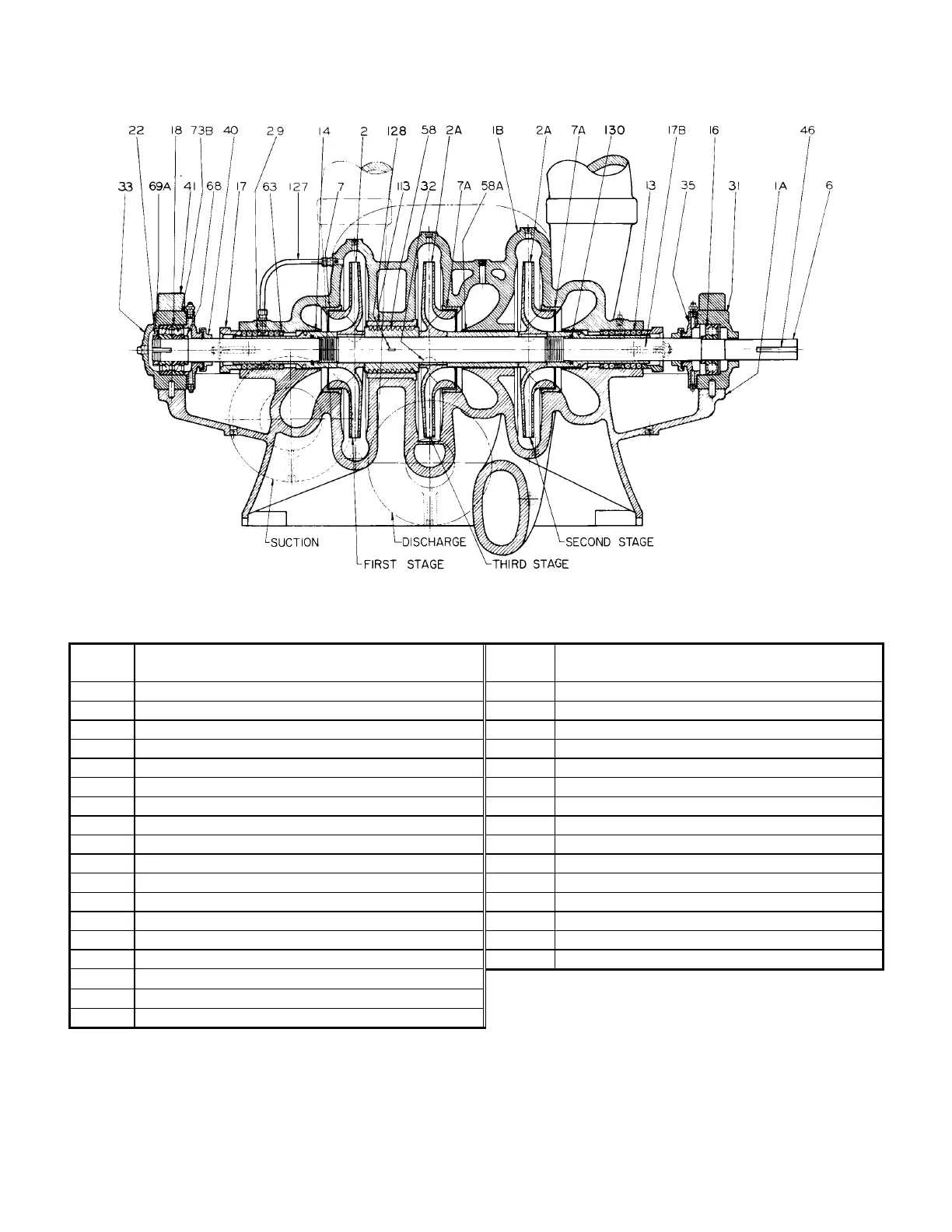

FIGURE 2 – TUT, TUTF 3 STAGE
GREASE LUBRICATED BEARINGS
2874541
Rev. 3-88
Parts List
Item
No.
Description Item
No.
Description
1A Lower Casing 35 Bearing Cover
1B Upper Casing 40 Water Deflector
2 Right Hand Impeller 41 Bearing Cap
2A Left Hand Impeller 46 Coupling Key
6 Shaft 58 Inter-stage Sleeve
7 Right Hand Casing Ring 58A Inter-stage Sleeve A
7A Left Hand Casing Ring 63 Stuffing Box Bushing
13 Packing 68 Shaft Collar
14 Shaft Sleeve 69A Bearing Lock washer
16 Outboard Bearing 73A Casing Gasket (Not Shown)
17 Packing Gland 73B Bearing Cover Gasket
17B Gland Bolt 113 Inter-stage Bushing
18 Outboard Bearing 127 Seal Piping
22 Bearing Locknut 128 Inter-stage Sleeve Key
29 Lantern Ring 130 Shaft Sleeve “O”-Ring
31 Inboard Bearing Housing
32 Impeller Key
33 Outboard Bearing Housing
5
2883820
