PEERLESS Pinnacle PO-70 User Manual

7
F. STANDARD VENT KITS
1. Common Vent Kit (54044): The common vent kit
is required for each Pinnacle Oil Boiler. This includes:
a) (54000) Concentric Sample Port Adapter
b) (54001) Concentric Clean-out Tee
c) (54006) Adjustable Length Vent Pipe - 19-1/2"
Max.
d) (54002) Concentric 90° Support Elbow
e) (54048) Vent Pipe Support
2. Concentric Sidewall Vent Kit (54045): A
concentric sidewall vent kit is used for boilers that are
vented through a building wall. This type of
installation is shown in Figure 3.2. This kit includes:
a) (54029) Concentric Sidewall Termination
b) (54003) Concentric 90° Elbow
c) (54007) Concentric Wall Plate
Additional vent pipe and fittings may be required to
complete the installation. Refer to the component list
for vent pipe in Table 3.2.
3. Concentric Vertical Chimney Vent Kit (54047):
A concentric vertical chimney vent kit is used to pipe
both the exhaust vent and the inlet air through an
existing chimney. An example of this type of
installation is shown in Figure 3.3. This kit includes:
a) (54012) Aluminum Shaft Cover Assembly
b) (54015) Vertical Vent Termination
Additional concentric vent pipe components may be
required to complete the installation. Refer to the
component list for vent pipe in Table 3.2.
4. Single Wall Vertical Chimney Vent Kit (54046):
A single wall vertical chimney vent kit is used to pipe
the exhaust vent through an existing chimney while
drawing the inlet air down through the chimney
around the exhaust vent pipe. An example of this type
of installation is shown in Figure 3.4. This kit includes:
a) (54036) Stainless Steel End Pipe
b) (54013) Aluminum Shaft Cover
Additional vent pipe components may be required to
complete the installation. Refer to the component list
for vent pipe in Table 3.2.
VENTING, INLET AIR & CONDENSATE

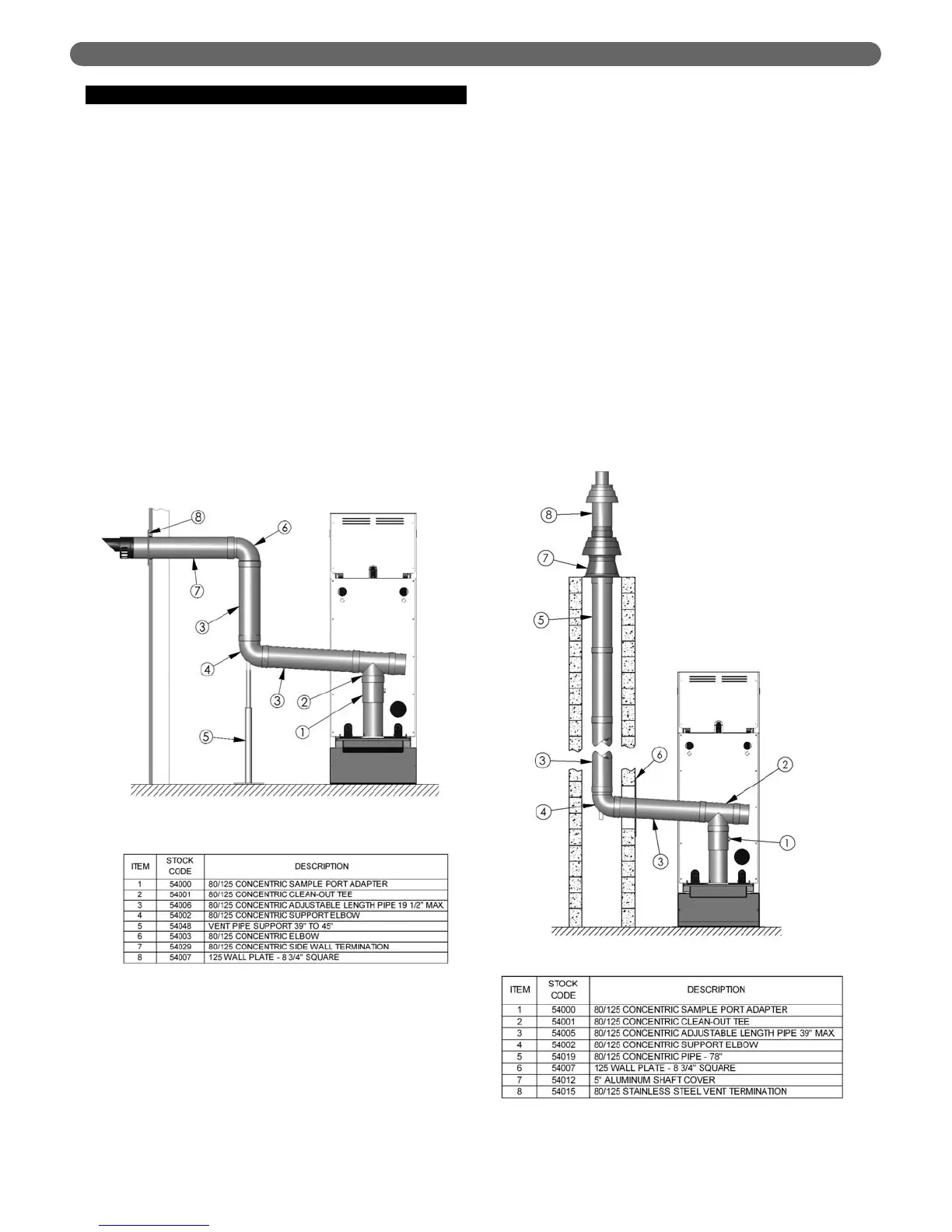

Figure 3.2: Sidewall Venting
Figure 3.3: Concentric Vertical Chimney Venting
