Peg-Perego Polaris Ranger RZR User Manual

b
MEVA0054
ELECTRONIC BOARD
MASTER
ACCELERATOR
HOUSING
SAGI8960JNGL
POLARIS
MOTOR
LEFT
MEIE0828
bk
SAGI9988
SAGI9988 MOTOR
RIGHT
9
7
5
10
8
6
b b
b
w
THERMO PROTECTOR
PUSH BUTTON MEPU0003 REVERSE
9 7
5
r/r
r
b
b/b
10
r/r
6 8
b/b
REVERSE CONNECTOR PUSH BUTTON
rr
b r
SAGI8996N
DASHBOARD WITH LED
b
r
MEIE0826
bk
r
MEIE0829
b w bk
r
RANGER RZR
brbkw
RUEF800 POLYSWITCH
RUEF800 POLYSWITCH
b = blue bk = black r = red w = white
b = bleu bk = noir r = rouge w = blanc
b = azul bk = negro r = rojo w = blanco

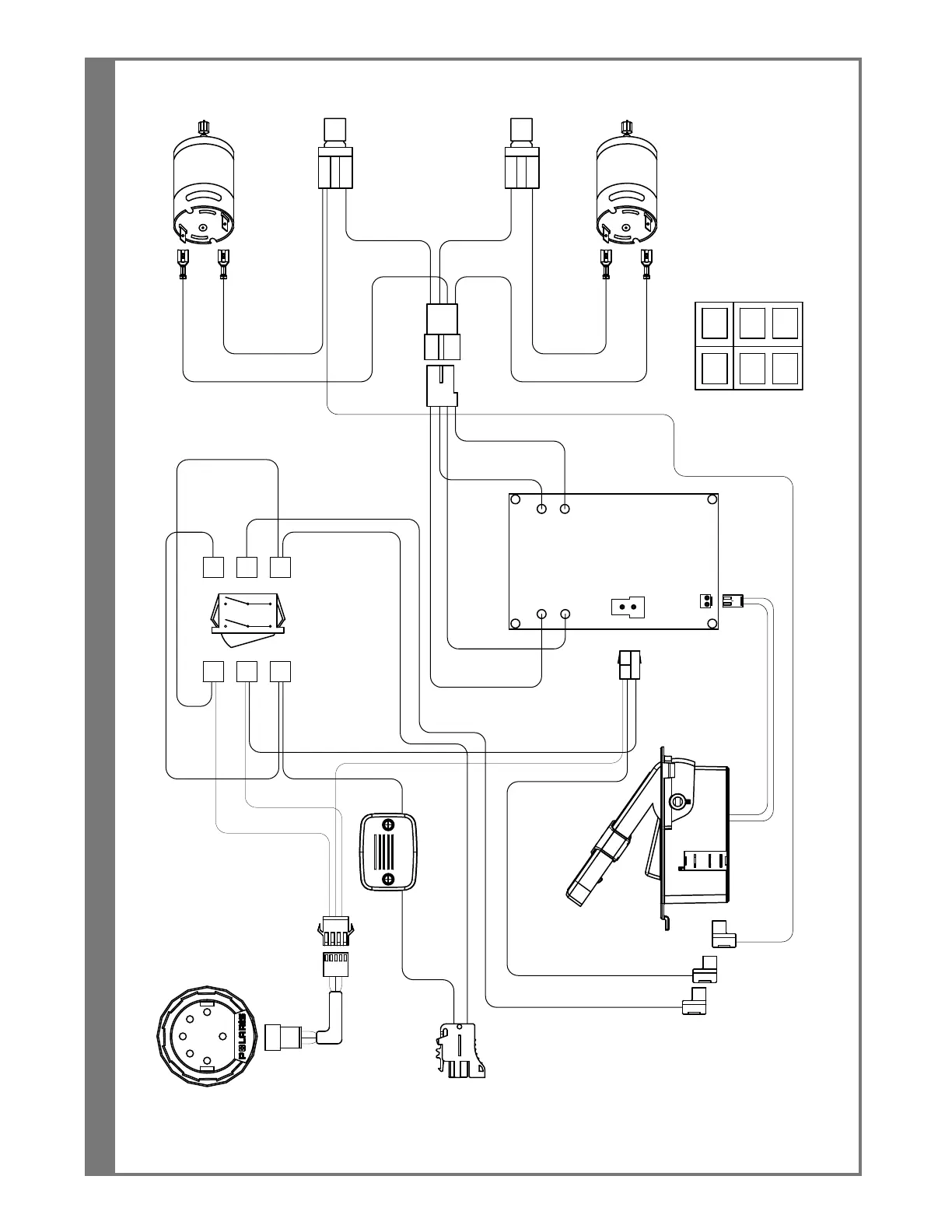

ELECTRICAL DIAGRAM DIAGRAMA ELÉCTRICO DIAGRAMME ÉLECTRIQUE
