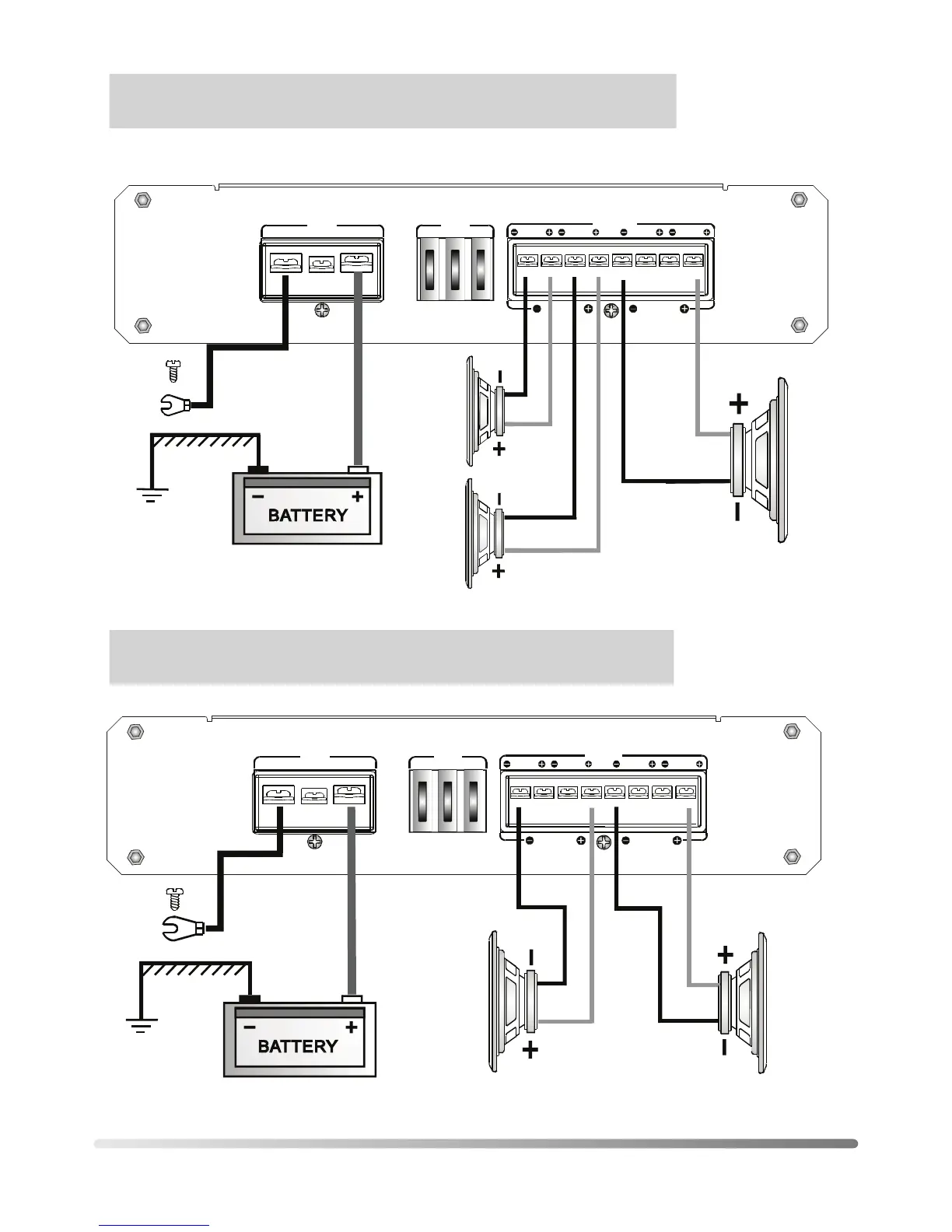

SYSTEM WIRING
2 CHANNEL BRIDGED MODE CONFIGURATION
SYSTEM WIRING
2 CHANNEL BRIDGED MODE CONFIGURATION
4
Fuse
Fuse
Speaker
Speaker
Bridged
Bridged
Bridged
Bridged
CH4
CH4
CH3
CH3
CH2
CH2
CH1
CH1
Power
Power
REM
REM
GND
GND
+12V
+12V
Connect to chassis
ground of vehicle*
SPEAKER 4~ 8 Ohm
SPEAKER 2~ 4 Ohm
Connect to chassis
ground of vehicle*
SPEAKER IMPEDANCE 2~ 4 Ohm
