Pelco KBD300 - Page 8

6 Pelco Manual C527M (11/97)

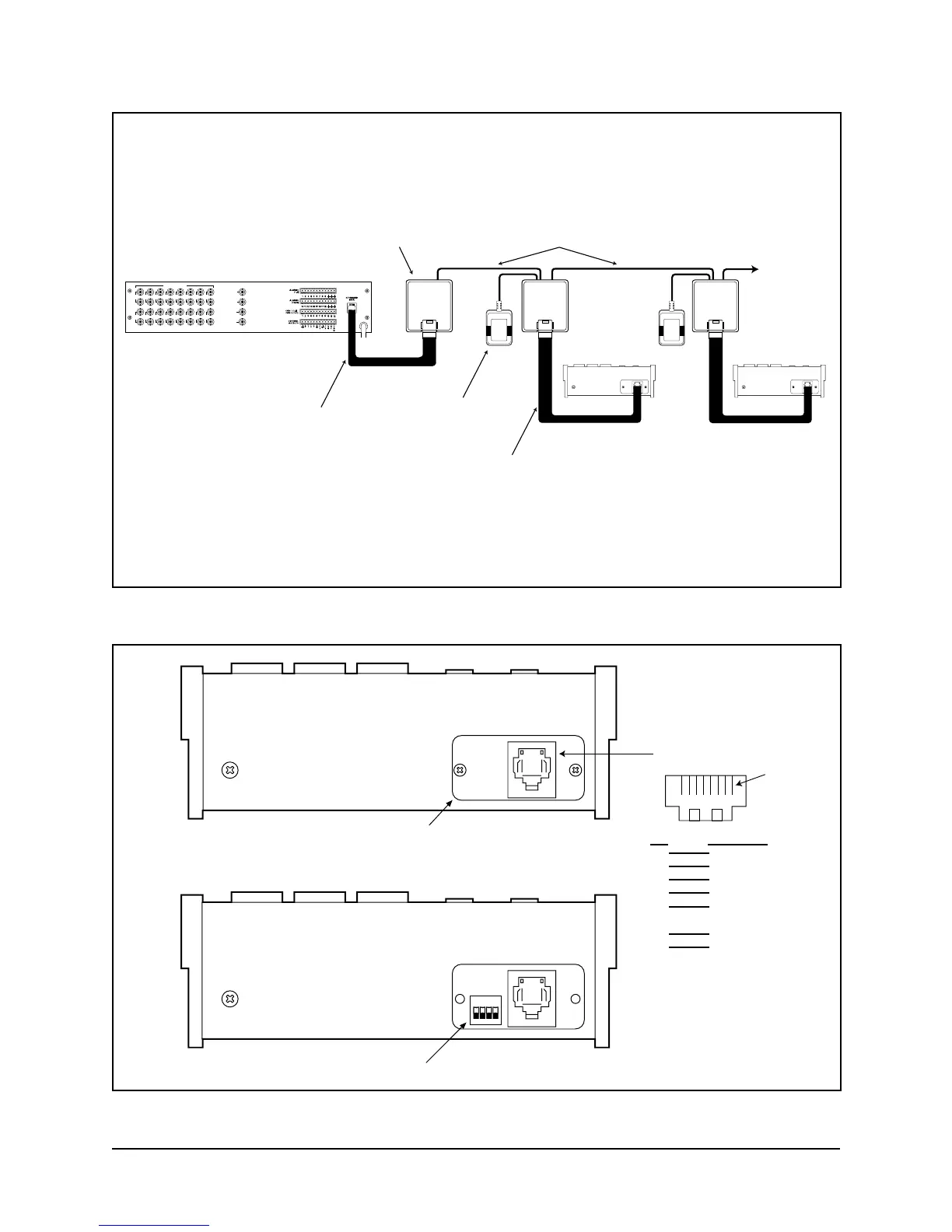

Figure 3. Keyboard Cabling Diagram
1234
KEYBOARD
DATA
KEYBOARD
DIP SWITCH
DIP SWITCH
COVER PLATE
Figure 4. Keyboard Rear Panel
VIDEO INPUTS
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16
VIDEO OUTPUTS
1
2
3
4
CM6700 SCU
WALL
TRANSFORMER
SCU
WALL JACK
6' CABLE
10' CABLE
KBD
KBD
ADDITIONAL
KEYBOARDS
AS NEEDED
USER SUPPLIED
CABLE (SEE FIGURE 2)
SWITCHER/CONTROLLER
DATA CABLE
KEYBOARD
DATA CABLE
PIN FUNCTION
1 TxD+
2 TxD-
3 12 VAC/DC
4 NON POLAR
5 GND
6
7 RxD-
8 RxD+
PIN 1
KBD300 RJ-45
CONNECTOR
}
