16

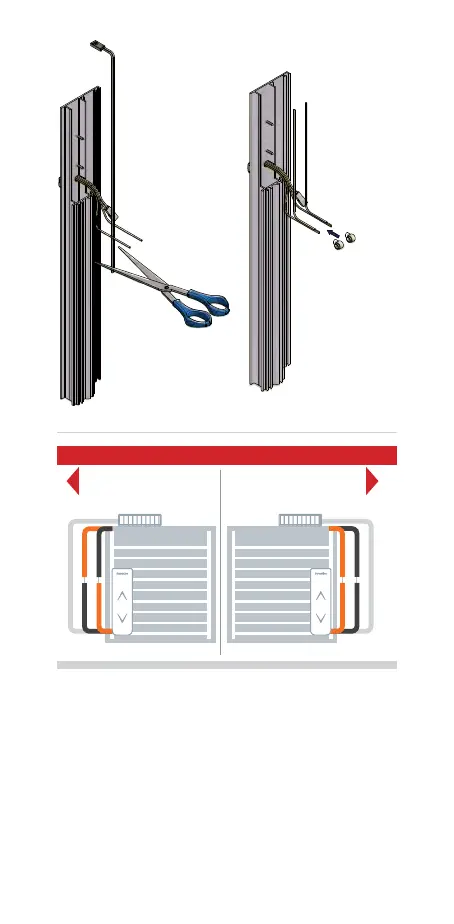

MOTOR CONNECTION THROUGH INSULATED CRIMP WIRE
CONNECTORS
It is possible to use other types of connection (e.g.
screw block terminals, insulated crimps, insulated heat
shrinkable wire connectors, etc.), provided that they
ensure a stable contact and wire insulation.
1
K-K ( 1 : 1 )
2
3a
3c
3b
1
K K
2
3
3a
3c
7 mm
0.35 mm
²
1 mm²
Collegare arancio-grigio e grigio-arancio
Connect orange-grey and grey-orange
Collegare arancio-arancio e grigio-grigio
Connect orange-orange and grey-grey
ATTENZIONE - WARNING
motore SINISTRO/LEFT motor motore DESTRO - RIGHT motor
grigio • grey
grigio • grey
grigio • grey grigio • grey
arancio • orange
arancio • orange arancio • orange
arancio • orange
