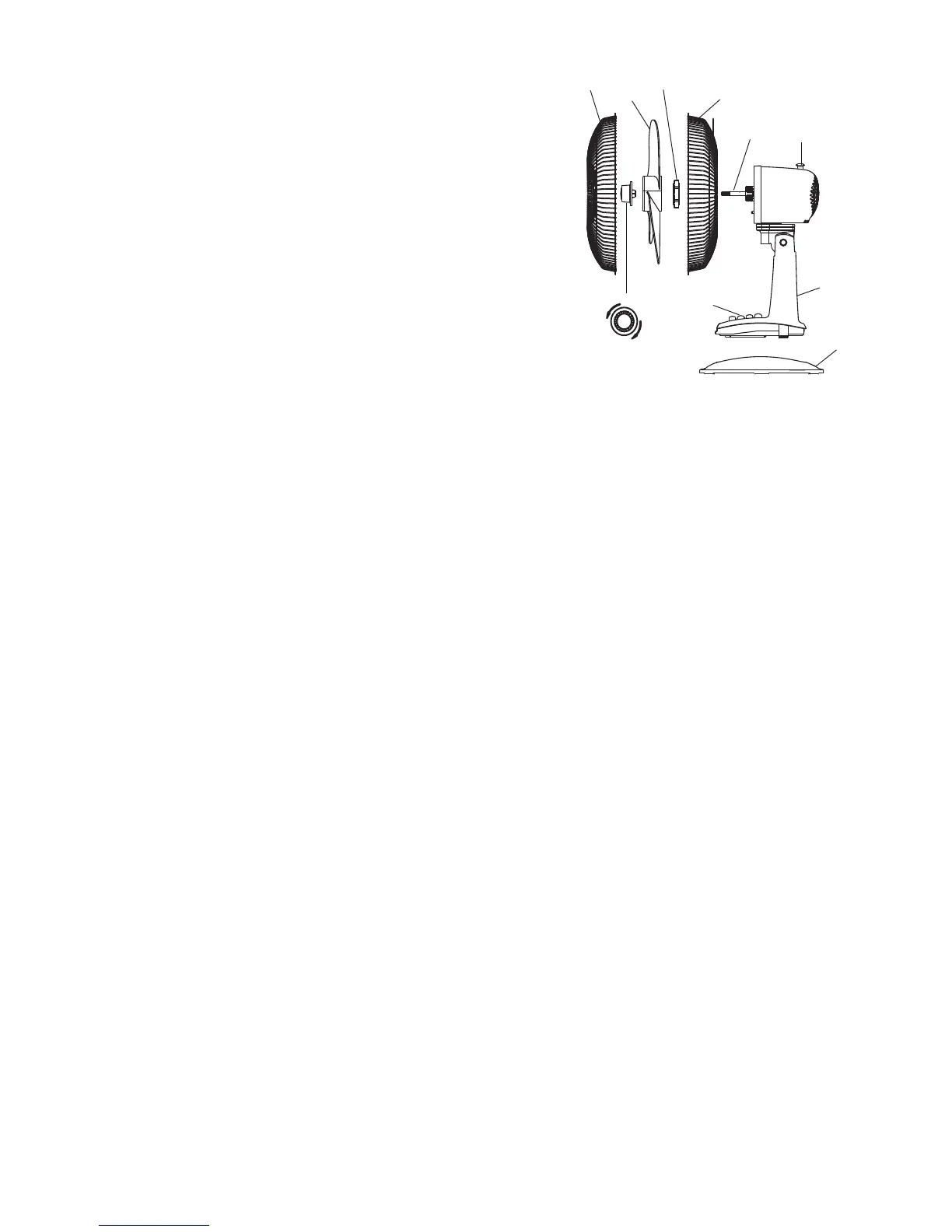

PARTS NAME
BASE ASSEMBLY
1. Detach screw from base of the fan.
2. Match locking tab to base and click into position.
3. Tighten the screw in the base to secure the fan to the base.
ASSEMBLY OF BLADE AND GRILLS
1. Take the spinner from the instruction manual bag and unscrew the plastic nut
counter-clockwise to remove it.
2. Set the rear grill in the proper position with the handle up.
3. Screw on plastic nut tightly to attach grill.
4. Install the blade onto the shaft until the retaining pin fits into the notch on
the blade.
5. Screw spinner on to motor shaft counterclockwise.
6. Mount the Front Grill and join both Grills together using the Clips.
OPERATION INSTRUCTION
Speed control
Speed is controlled by the button switch or rotary switch
Off-Off L--Low M--Medium H--High
Oscillation control
To make the fan oscillate, push down on the oscillation knob located on the top
of the motor housing. To stop the fan down from oscillating in the position desired,
push on the oscillating knob once more.
Alternative, there is a oscillation switch on the fan body, push down the switch,
you can also make the fan oscillate.
Tilting control
The airflow can be adjusted upward or downward by tilting the fan head to a
vertical angle as desired.
Base
Front Guard
Blade
Plastic Nut
Rear Guard
Motor Shaft Oscillating
Fan Body
Piano-key
Spinner
unscrew
2
