PEM CWT - THE INTEGRATOR

February 2011
5
10kV peak 10kV peak

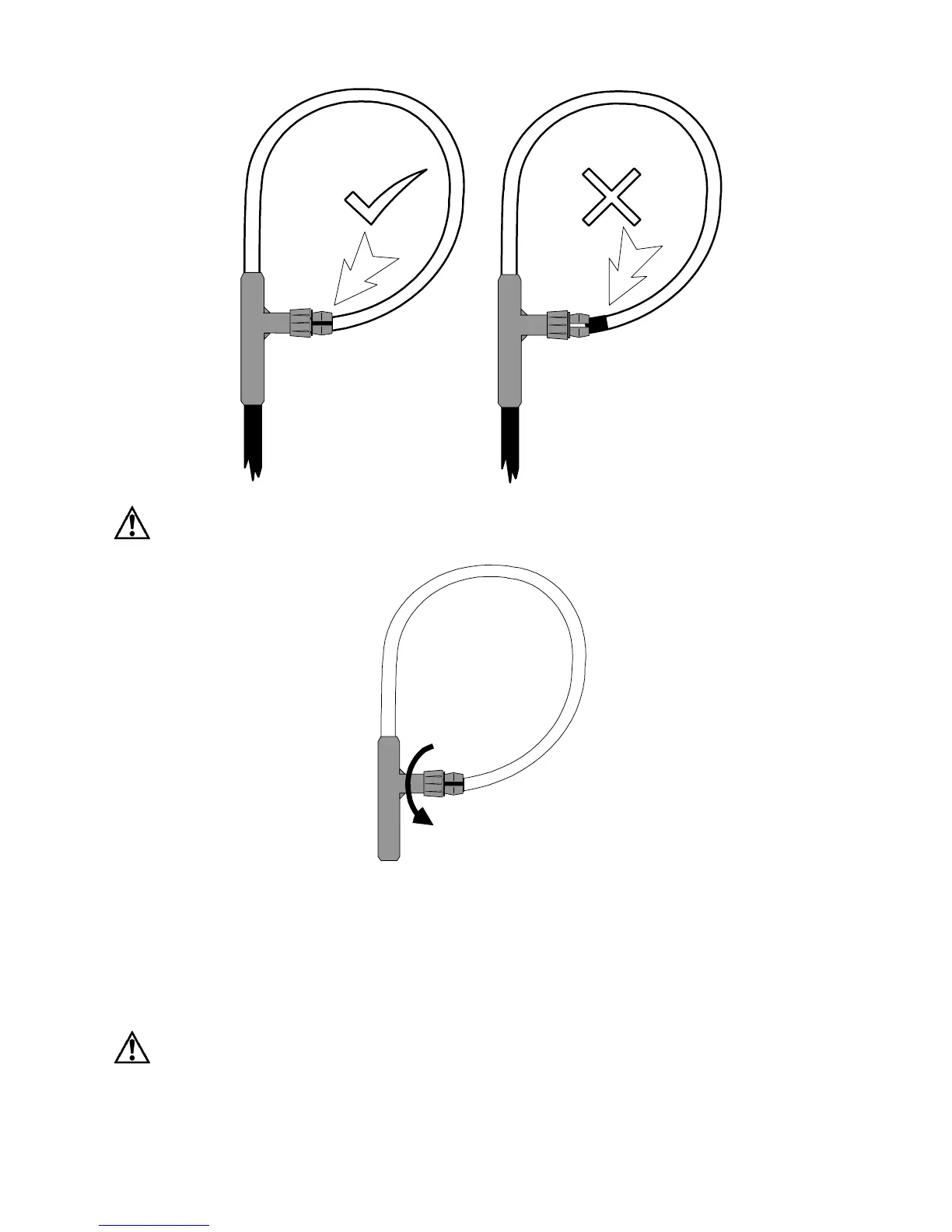

If the coil is to be left in-situ for any period of time or is used in an environment where the
coil is subject to vibration, the locking nut should be engaged as shown in the diagram
below.
To lock
the jaws
The locking mechanism must not be actuated at temperatures below 0
o
C
Care must be taken not to over-tighten the locking nut.
THE INTEGRATOR
The CWT must only be used with oscilloscopes or monitoring equipment which have
their BNC INPUTS PROPERLY GROUNDED.
