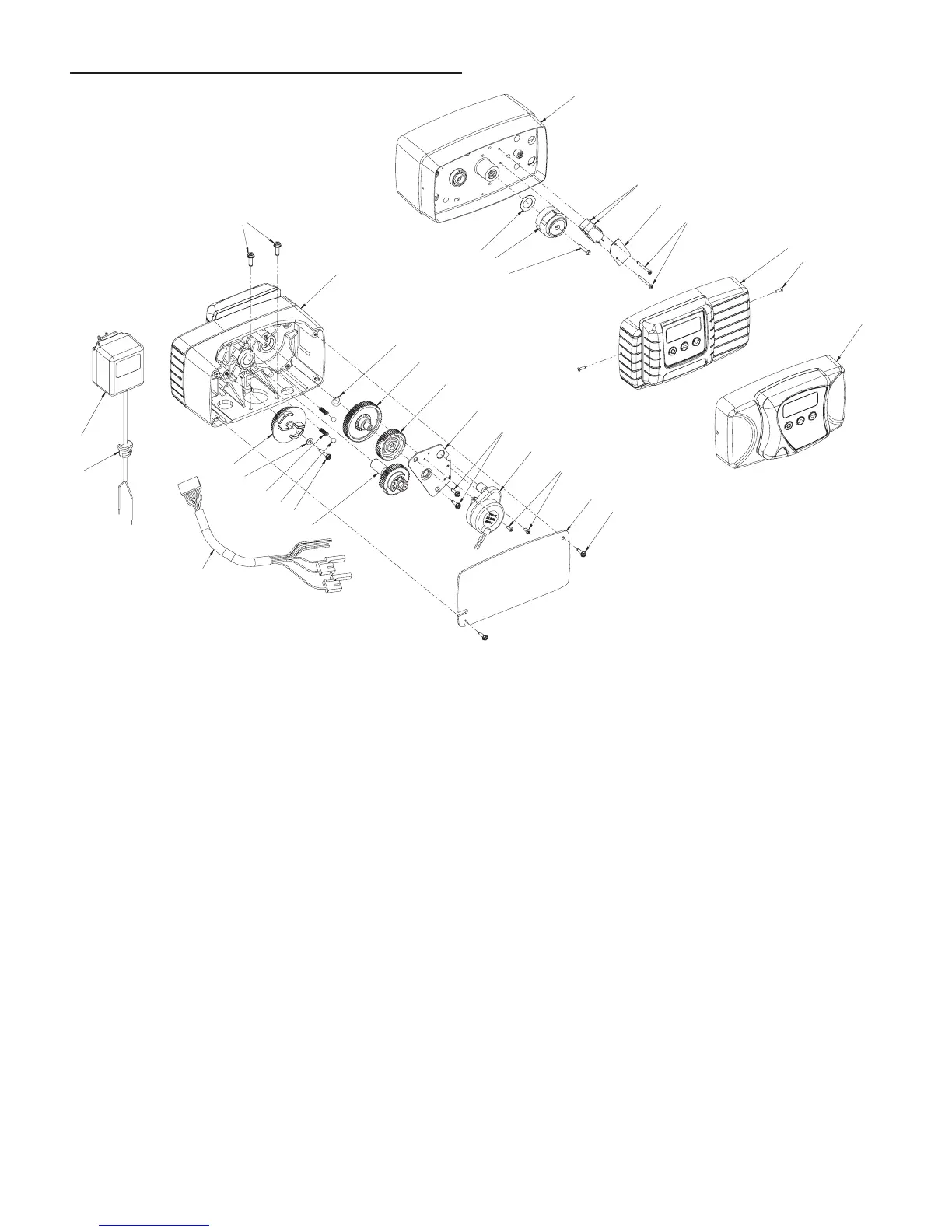

Pentair FLECK 5600SXT - Valve Powerhead Assembly

1
5
6
7
9
10
19
8
8
16
15
14
12
11
18
17
3
2
4
1
20
21
22
23
24
25
26A
27
26
B
14
VALVE POWERHEAD ASSEMBLY
Item No. QTY Part No. Description
1 ..............1 ...... 14448-100 .......Drive Housing Assy, with Pin,
56SXT
2 ..............2 ...... 12473 ..............Screw, Hex Wsh 10-24 x 5/8
3 ..............1 ...... 19474 ..............Harness, Power, 56SXT,
Elect
4 ..............1 ...... 13299 ..............Washer, Spring, 3/8
5 ..............1 ...... 13017 ..............Gear, Idler
6 ..............1 ...... 23045 ..............Gear, Drive, 6700
7 ..............1 ...... 13175 ..............Plate, Motor Mounting
8 ..............4 ...... 13296 ..............Screw, Hex Wsh, 6-20 x 1/2
9 ..............1 ...... 16944 ..............Motor, Drive, 24V
60 Hz 2 rpm
10 ............2 ...... 11384 ..............Screw, Phil, 6-32 x 1/4 Zinc
11 ............1 ...... 18722 ..............Cam, Brine Valve,
56SXT/6700 Blk
12 ............1 ...... 12037 ..............Washer, Plain, #10 18-8
Stainless Steel
13 ............1 ...... 40214 ..............Screw, Hex Wsh, #6-20 x 3/4
14 ............2 ...... 19080 ..............Spring, Compression, 6700
15 ............2 ...... 13300 ..............Ball, 1/4-inch Stainless Steel
16 ............1 ...... 42933 ..............Gear, Main Drive, Downflow
17 ............1 ...... 13547 ..............Strain Relief, Flat Cord
18 ............1 ...... 44147 ..............Transformer, 24V, 9.6VA,
Residential Valves
....... 41475 ..............Transformer, 24V, 9.6VA,
European
19 ............1 ...... 40338 ..............Cover, Back Drive Housing
20 ............1 ...... 19079 ..............Washer, Friction
21 ............1 ...... 17438 ..............Cam, 56SXT/6700, Downflow
....... 40609 ..............Cam, Double Backwash,
Downflow
22 ............1 ...... 15151 ..............Screw, Flat Hd St, 6-20 x 3/4
23 ............2 ...... 10218 ..............Switch, Micro
24 ............1 ...... 10302 ..............Insulator, Limit Switch
25 ............2 ...... 17876 ..............Screw, Phil, Pan,
4-40 x 1-1/8
26A .......... 1 ...... 61672-0201 ..... Front Panel Assy, 56SXT,
Square, Black
26B ..........1 ...... 61673-0201 ..... Front Panel Assy, 56SXT,
Curved, Black
27 ............2 ...... 13898 ..............Screw, Flat Hd, Phil Steel
Not Shown:
4 ...... 40422 ..............Wire, Nut, Beige
Item No. QTY Part No. Description
61501-56SXT Rev C
14 • FLECK
5600SXT Downflow Service Manual
