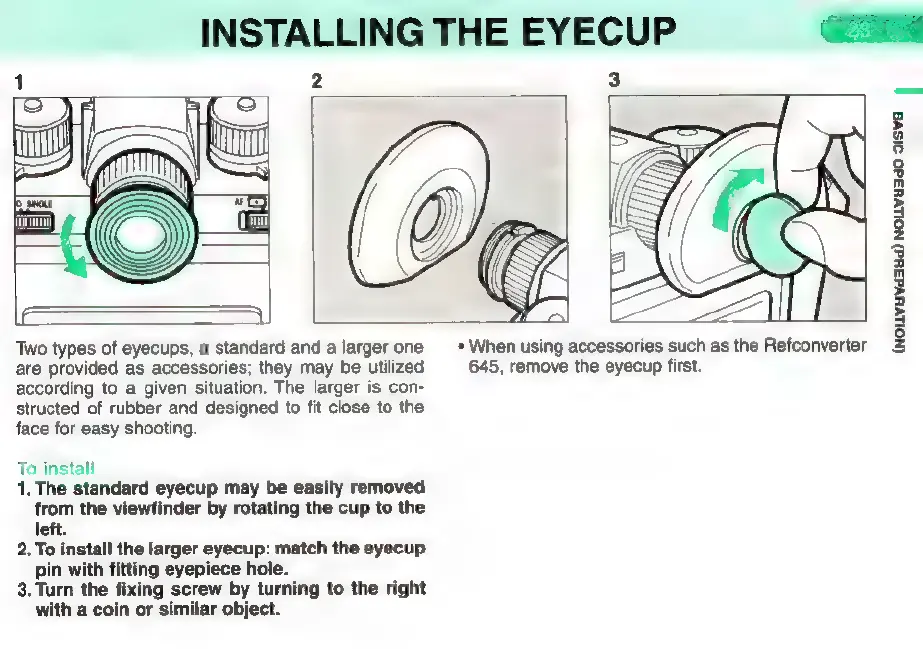

INSTALLING THE EYECUP
1 2
[o eJ
E 2
— —
Two types of eyecups, a standard and a larger one
are provided as accessories; they may be utilized
according to a given situation. The larger is con-
structed of rubber and designed to fit close to the
face for easy shooting.
To install
1. The standard eyecup may be easily removed
from the viewfinder by rotating the cup to the
left.
2. To install the larger eyecup: match the eyecup
pin with fitting eyepiece hole.
3. Turn the fixing screw by turning to the right
with a coin or similar object.
* When using accessories such as the Refconverter
645, remove the eyecup first.
