Playing Back and Deleting Images
Connecting the Camera to AV
Equipment

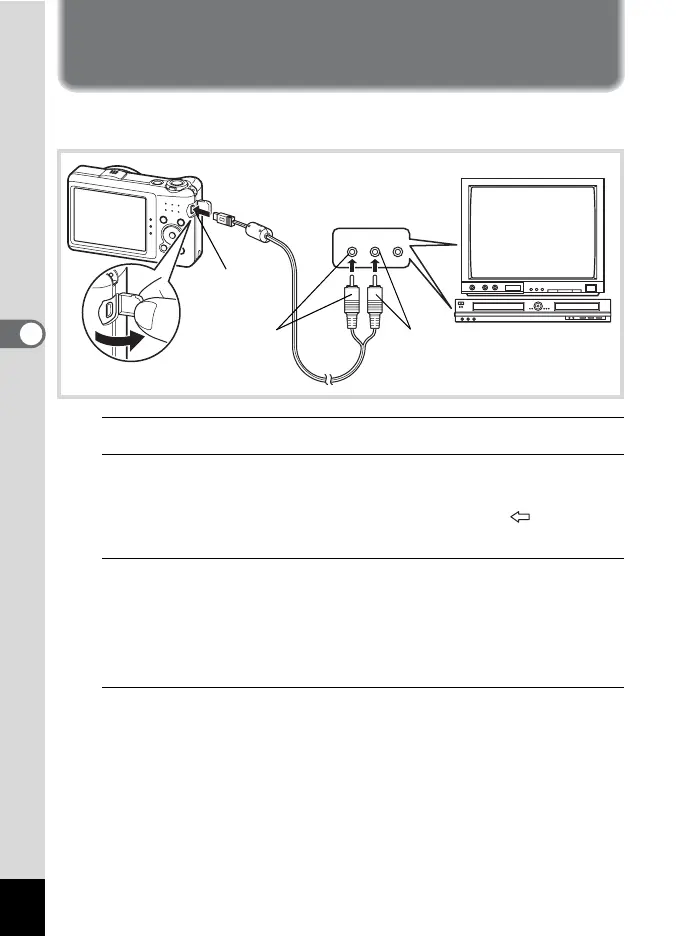

By using the supplied AV cable (I-AVC7), you can capture and play back
images on equipment with a video IN jack, such as a TV.
1
Turn the AV device and camera off.
2
Connect the AV cable to the PC/AV terminal of the
camera.
Connect the terminal of the AV cable with arrow mark facing the
side of the display.
3
Connect the other ends of the AV cable to the video
input terminal and audio input terminal of the AV
device.
When using stereo sound equipment, insert the sound terminal into the
L (white) terminal.
4
Turn the AV device on.
When the device that the camera is connected to and the device that
plays back images are different, turn both devices on.
When viewing images on AV equipment with multiple video input
terminals (such as a TV), refer to the operation manual of the device
and select the video input terminal to which the camera is connected.
VIDEO
AUDIO
(L) (R)
PC/AV
terminal
Yellow White
External input
terminal
