2018-12
16
Functional Safety KCD2-SR-(Ex)*(.LB)(.SP), HiC282*
Planning
Maximum Switching Power of Output Contacts
The useful life time is limited by the maximum number of switching cycles under load
conditions. The maximum number of switching cycles is depending on the electrical load
and may be higher when reduced currents and voltages are applied.
You can see the relationship between the maximum switching power and the load conditions
in the figures below.

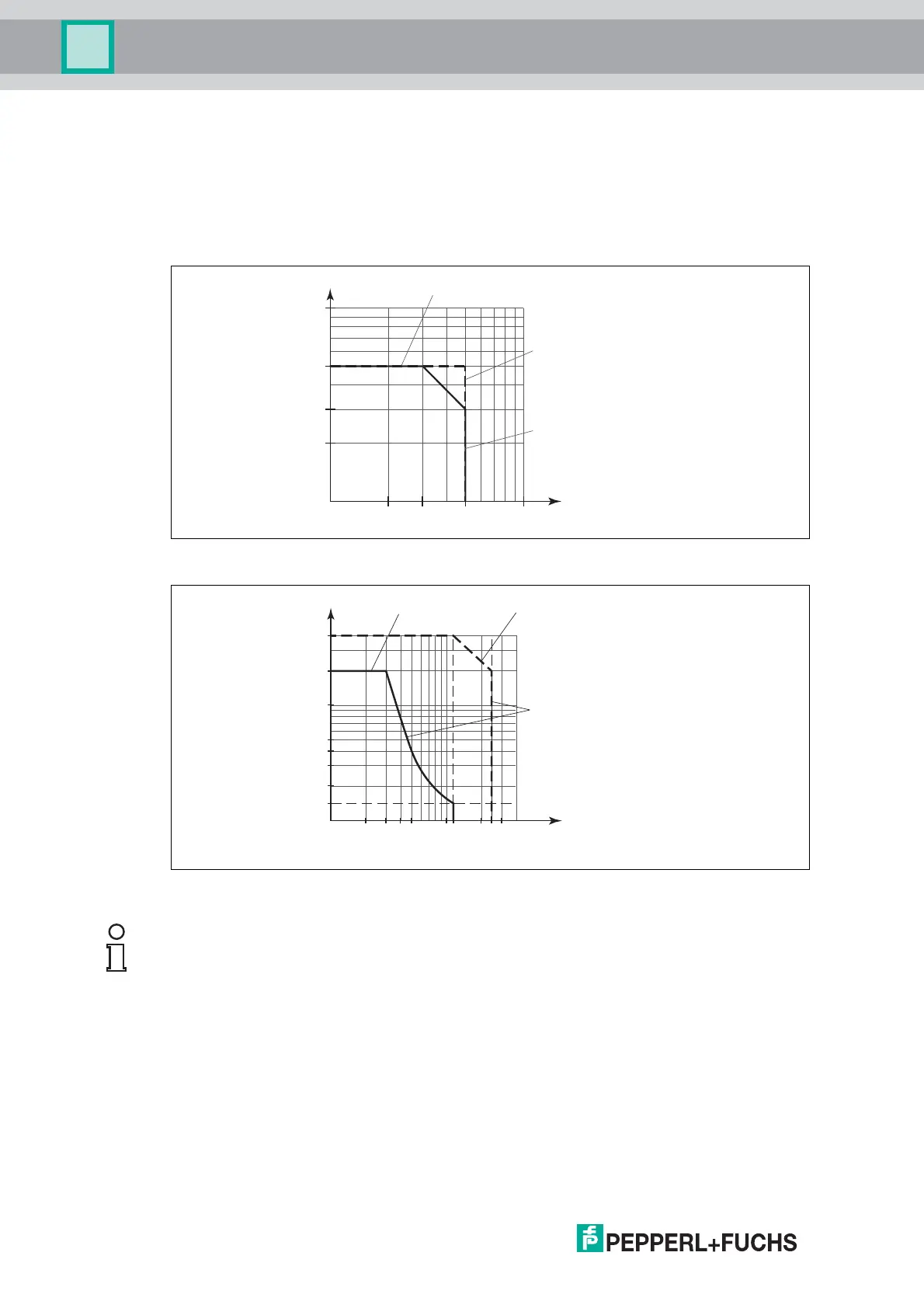

Figure 3.1 Maximum switching power of HiC282*
Figure 3.2 Maximum switching power of KCD2-SR-(Ex)*(.LB)(.SP)
1
I (A)
10050
U (V)
30
0.5
0.3
Resistive load DC
Electrical life
max. 1 x 10
5
switching cycles
Electrical life
max. 2.5 x 10
5
switching cycles
1
I (A)
2
4
40
10030 50
200
115 253
U (V)
20
Electrical life
max. 1 x 10
5
switching cycles
0.5
0.4
0.15
Resistive load DC Resistive load AC
Note!
See corresponding datasheets for further information.
