Perel BG58000V2 - Page 3

BG58000V2
V. 01 – 14/09/2022 3 ©Velleman Group nv

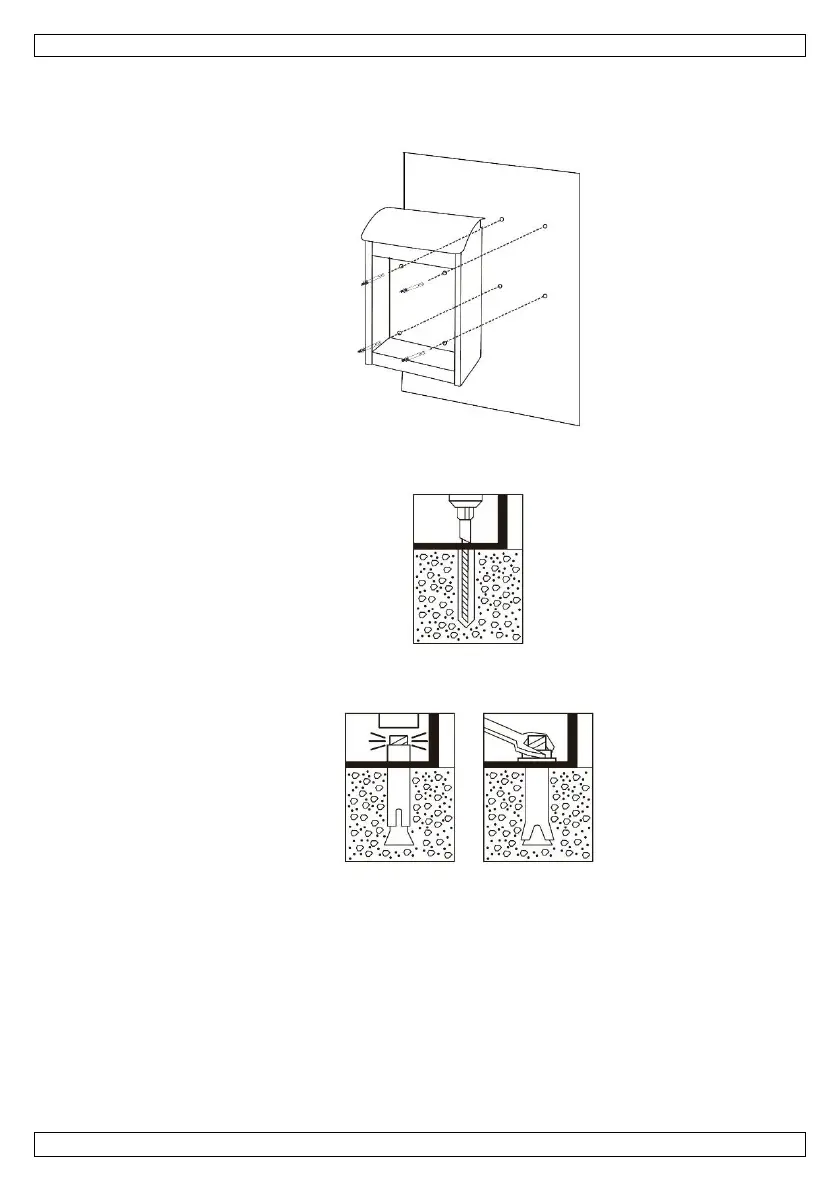

5. Installation
1. Measure the actual hole distance according to the back plate.
2. Drill the holes accordingly (depth 70 mm, Ø 12 mm).
3. Fix an anchor inside each hole and use a spanner to fasten the drop box.
6. Cleaning and Maintenance
Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals,
cleaning solvents or strong detergents.
