30622-01A - Page 2

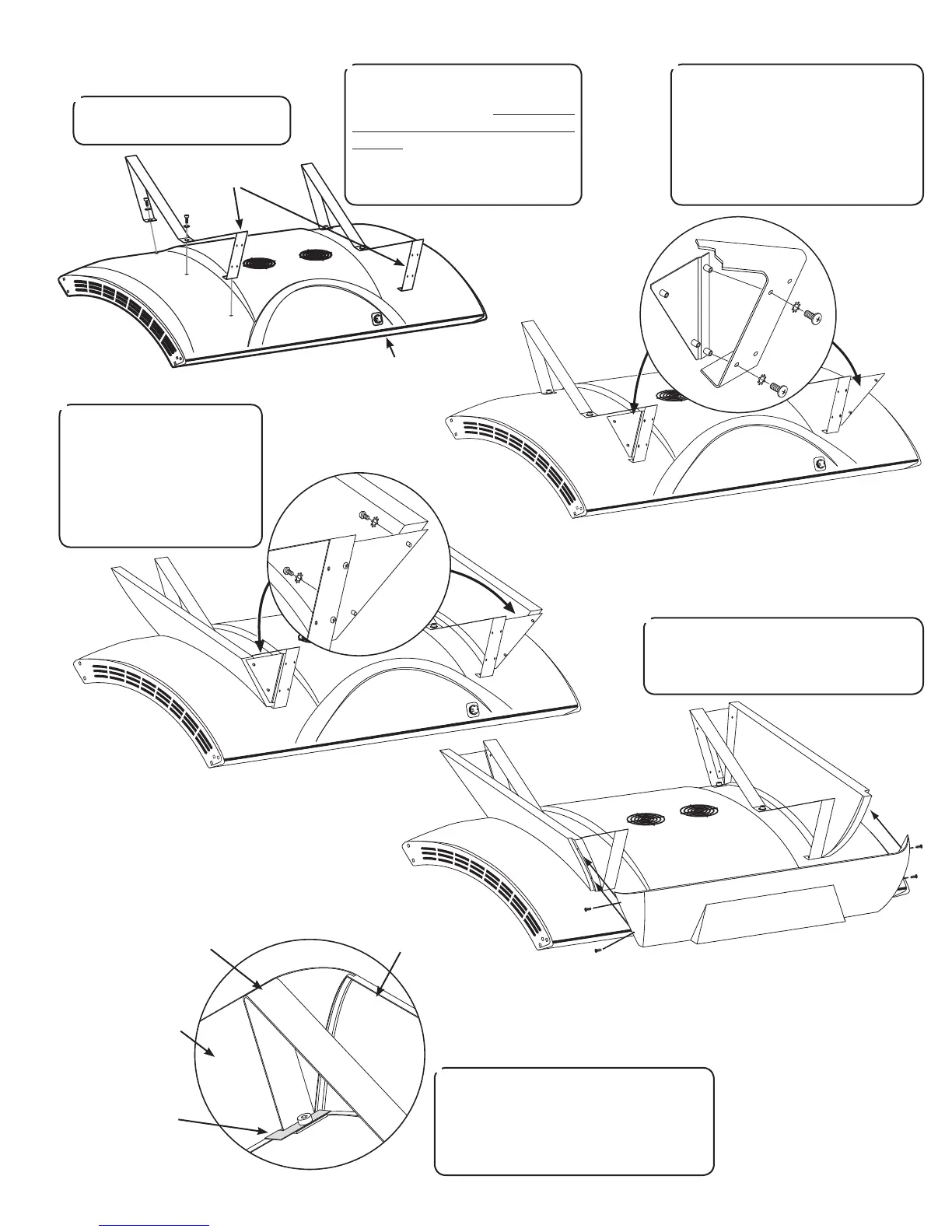

Assembly Procedures
Lay the bench upside down on the
fl oor. Locate the two stand legs.
1
Remove the six 5/16” x 1” bolts and
5/16” washers installed in the bench.
Attach the stand legs, with the four
small skirt mounting holes toward
the back, by installing the center bolt
fi rst. You may have to gently push
the sides of the legs in to align holes.
Tighten with the Allen wrench.
2
SKIRT MOUNTING
HOLES
ELECTRICAL CONNECTOR
INDICATES BACK OF BENCH
While the bench is upside-down attach
the triangular skirt mounting brackets.
Locate the two brackets and attach them
as shown with two #10-32 x 1/2” screws
and star lock washers. Make sure the
threaded inserts point toward the stand
legs and the wide end is toward what
will be the fl oor.
3
Attach the side skirts to the
mounting brackets with two
#10-32 x 1/2” screws and star
lock washers from inside the
skirt and into the brackets. The
rounded part of the side skirts
points toward the front of the
bed.
4
Using 2 tree fasteners in each end, attach
the front skirt panel to the side skirts. Simply
hold the pieces together, lining up the holes,
and insert the fasteners until they are tight.
5
Using the front leg mounting bolt, secure
the L-shaped Skirt Retaining Bracket so it
clamps the front and side skirt to the bench
cover. Place the retainer bracket so the tab
holds the front skirt as shown. Repeat for the
other side.
6
FRONT SKIRT
SIDE SKIRT
LEG
RETAINING BRACKET
