STEP 2

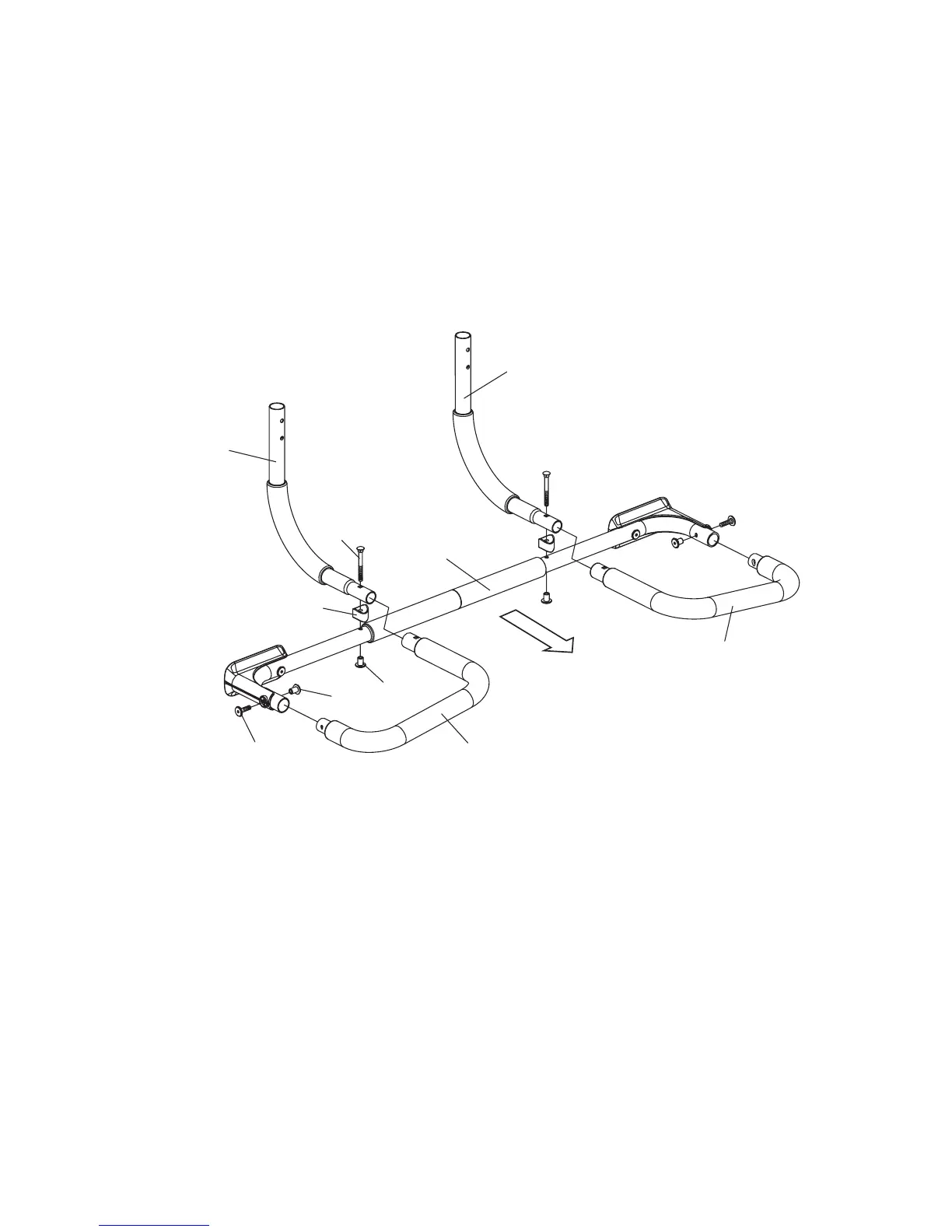

A) Locate the holes on the LEFT and RIGHT Curved Tube Assembly. Insert the LONG
Allen Bolt into the hole of the LEFT and RIGHT Curved Tube Assemblies.
B) Place the Plastic O-Ring onto the end of the Allen Bolt prior to assembly with the
Crossbar. Insert the end of the Short Allen Bolt into the top hole of the Crossbar, and
insert an Allen Nut into the bottom hole of the Crossbar. Start by hand-tightening the
nut into the bolt.
C) Repeat step “B” for both of the Curved Tube Assemblies. NOTE: Hand-tighten only, wait
until fully assembled to tighten with the Allen Wrench.
Carriage Bolt
Short Allen Bolt
Plastic O-Ring
Allen Nut
Allen Nut
Left Curved Tube
Assembly
Left Bent
Tube Assembly
Right Bent
Tube Assembly
Right Curved Tube
Assembly
Crossbar
(Left and Right Assemblies)
Front
To Next Page
