11

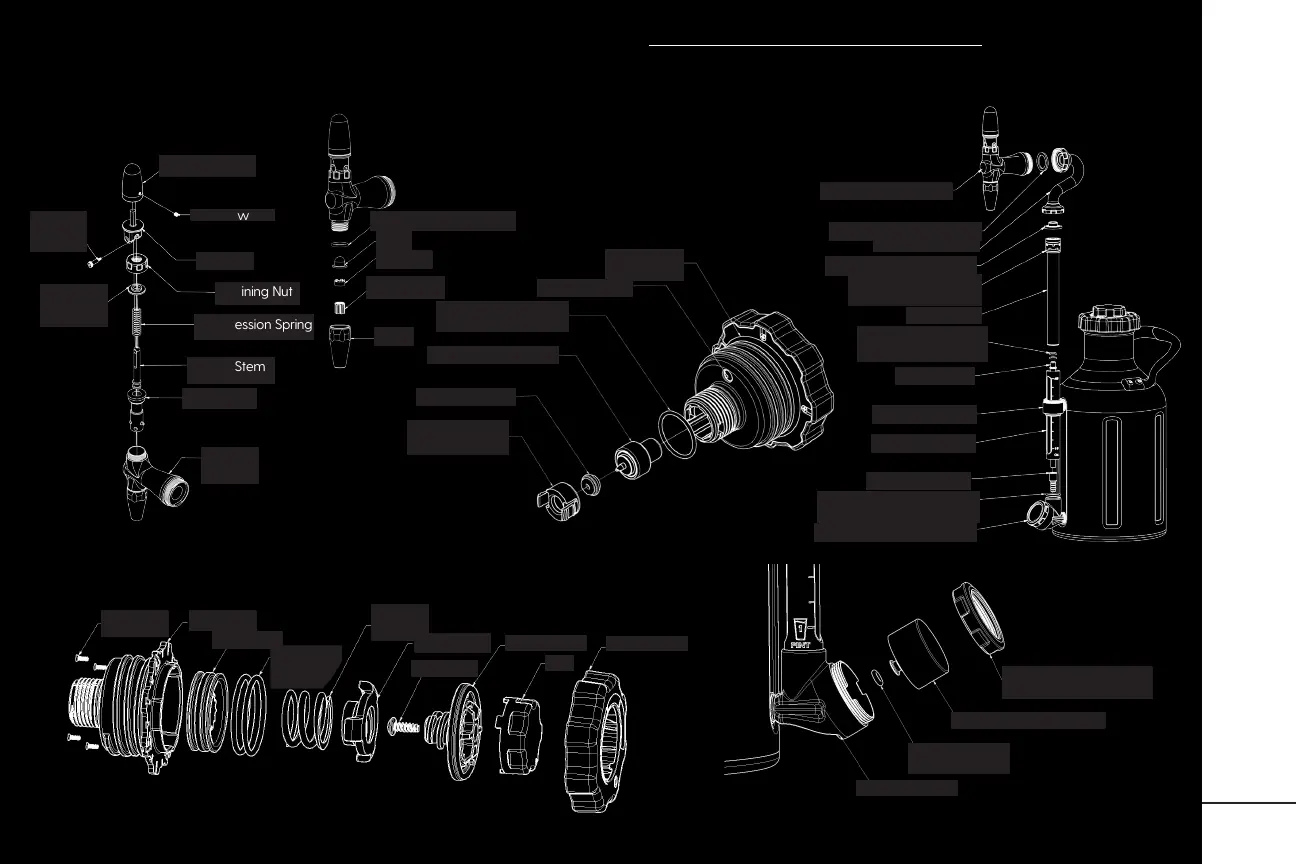

COMPONENT DIAGRAMS
SIGHT TUBE ASSEMBLY
TAP ASSEMBLY
CAP BOTTOM ASSEMBLY
Umbrella Seal
Cap Seal
Size -224
Piercer Assembly
Cartridge Seal
Cartridge Seal
Retainer
Tap Assembly
Upper Gooseneck Seal
Lower Gooseneck Seal
Sight Tube O-ring (x2)
Size -015
Lower Fitting O-ring
Size -015
Lower Fitting Assembly
Riser Tube O-ring (x2)
Size -009
Riser Tube
Upper Fitting
Sight Guard
Riser Socket
Sight Tube
Gooseneck
CAP TOP ASSEMBLY
Cap Screw
(x4)
Cap Body
Low Side
Spring
Spring Hat
Dial Screw
Dial
Drive Screw
Cap Grip
Diaphragm
Diaphragm
O-ring
Size -126
Lower Fitting
Pressure Gauge
O-ring Size -007
Pressure Gauge
Pressure Gauge
Retaining Nut
PRESSURE GAUGE
ASSEMBLY
For Troubleshooting, please see our support page at: www.perfectwerks.com/howto
Sleeve Seal
Size -019
Handle
Set Screw
Tap Body
Plunger Stem
Plunger
Compression Spring
Retaining Nut
Rocker
Shoulder
Screw
Alignment
Plate
Nozzle O-ring Size -013
Filter
Restrictor
Straightener
Nozzle
