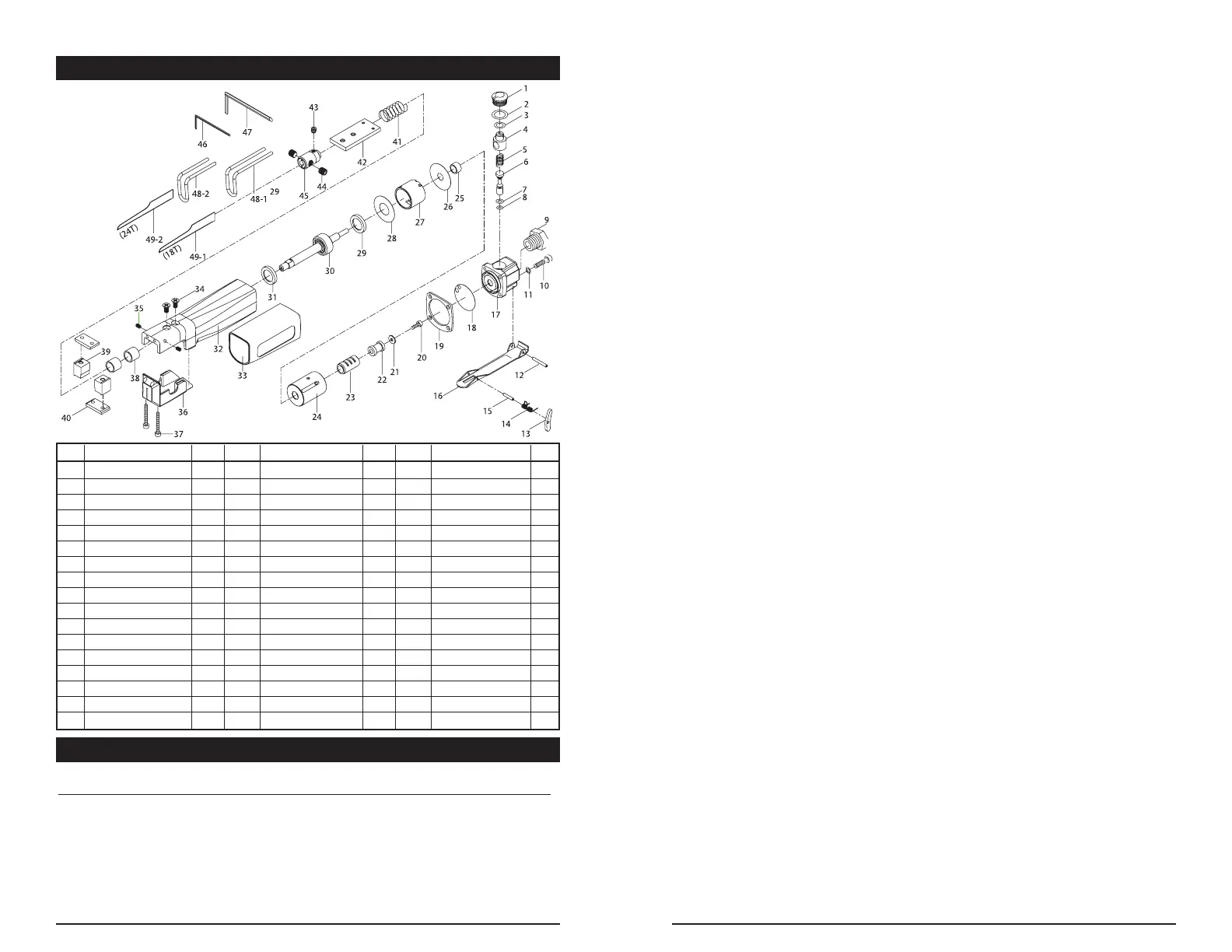

REPLACEMENT PARTS
1 Cap Screw 1
2 O-Ring 1
3 O-Ring 1
4 Fluid Controller 1
5 Spring 1
6 Pin 1
7 O-Ring 1
8 O-Ring 1
9 Connector 1
10 Screw 1
11 Gasket 1
12 Trigger Pin 4
13 Stem 3
14 Spring 3
15 Pin 1
16 Trigger 1
17 Cylinder 1
18 Washer 1
19 Washer 2
20 Screw 1
21 Washer 2
22 Valve 1
23 Valve Sleeve 1
24 Valve Body 4
25 Bushing 1
26 Washer 1
27 Cylinder 1
28 Washer 1
29 Front Bumper 2
30 Piston Rod 1
31 Rear Bumper 1
32 Housing 1
33 Sleeve 1
34 Screw 2
35 Screw 2
36 Cover 1
37 Screw 2
38 Bushing 2
39 Washer 2
40 Plate 2
41 Spring 1
42 Guide Plate 1
43 Set Screw 2
44 Set Screw 2
45 Blade Chuck 1
46 Wrench, 2 mm 1
47 Wrench, 4 mm 1
48 Work Guide (Short) 1
48 Work Guide (Long) 1
49 Blade 2
NO. DESCRIPTION QTY NO. DESCRIPTION QTY
INSUFFICIENT POWER:
Probable Cause Solution
Dirty or clogged air passages..................Flush and lubricate tool, drain air tank and supply line
Insufficient air supply ...............................Increase line pressure, Make sure compressor
matches tool's air pressure and consumption needs
Air leakage ...............................................Use PTFE tape at all fittings and joints. Check tool for
worn or damaged O-rings & seals.
Worn/damaged wear & tear parts ...........Replace as necessary.
Tool matching ..........................................Be sure you are using a tool suited for the torque
requirements of the job at hand.
TROUBLESHOOTING
NO. DESCRIPTION QTY
3 4
