WARNING! Do Not use diagnostic equipment on or near rotating engine parts.
Entanglement or ying parts may occur.
Do Not use as a screwdriver, pry bar, chisel or punch.
Wear Safety Goggles (Users and bystanders).
This digital LCD circuit tester is designed to detect voltage, power and ground integrity.
WARNING! Test lights can set off a supplemental restraint system if the wrong wires
are probed. These wires are generally, but not always, marked with a yellow loom or tape
and likely have yellow connector housings. If you probe one of these wires, which could
be in ANY factory wiring harness in your vehicle, you could set off one or all of the airbags.
TEST FOR CIRCUIT GROUND:
1. Connect the Spring Clip (1) to a good power supply.
2. Touch the pointed probe (2) to circuit terminals, wires or chassis to locate grounds.
3. The green LED (4) illuminates and the LCD will display the measured voltage as a
negative number at good ground connections.
TEST FOR CIRCUIT POWER:
1 Connect Spring Clip (1) to a good chassis ground.
2. Touch the pointed probe (2) to a circuit terminal or wire.
3. The red LED (3) illuninates and the LCD will display the measured voltage if the
terminal has power.
INSTRUCTIONS
1
2
3 4 5
6
7

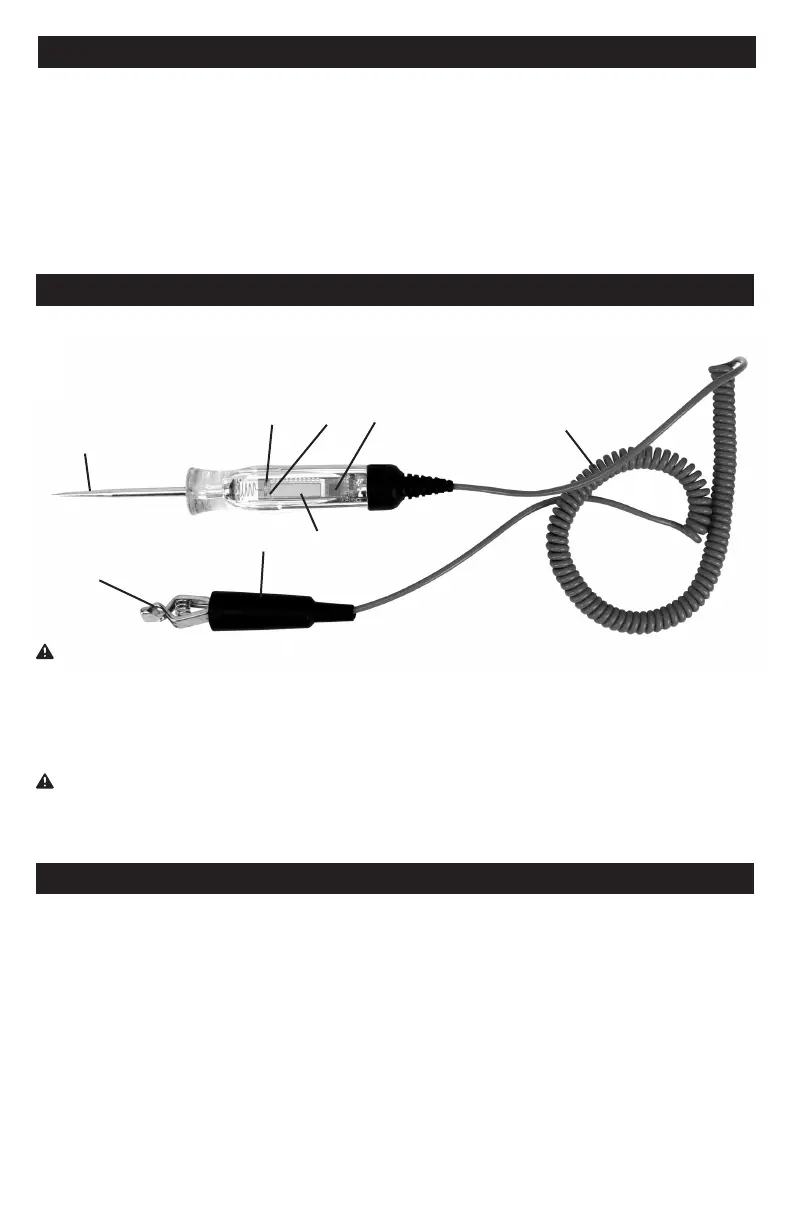

1. Spring Clip
2. Probe
3. L.E.D. Red
4. L.E.D. Green
8
5. Logic Processor
6. Memory Cord
7. Protective Boot
8. LCD Screen
DESCRIPTION
SPECIFICATIONS
Range: 3 to 48V (DC) Resolution: 0.1V (DC)
Accuracy:
-
0.3V Display type Backlit 200 count LCD
Red LED: Power Connection Red LED: Ground Connection
Polarity: Bi-Directional Operating Temp.: 0° to 120° F (-18° to 50° C)
Surge Protected: Yes Coiled Cord Length: 12ft. (14 m)
Clip: Large Solid Copper Shank Material: Stainless Steel
Shank Length: 3.5 inches (8.9 cm) Weight: 0.4 lbs. (0.18 kg)
Cumputer Safe: Yes
NOT AIRBAG SAFE NOT A JUMPER LEAD
+
