Perfomance Tool W41044 - Assembly Diagram and Parts List; Parts Identification

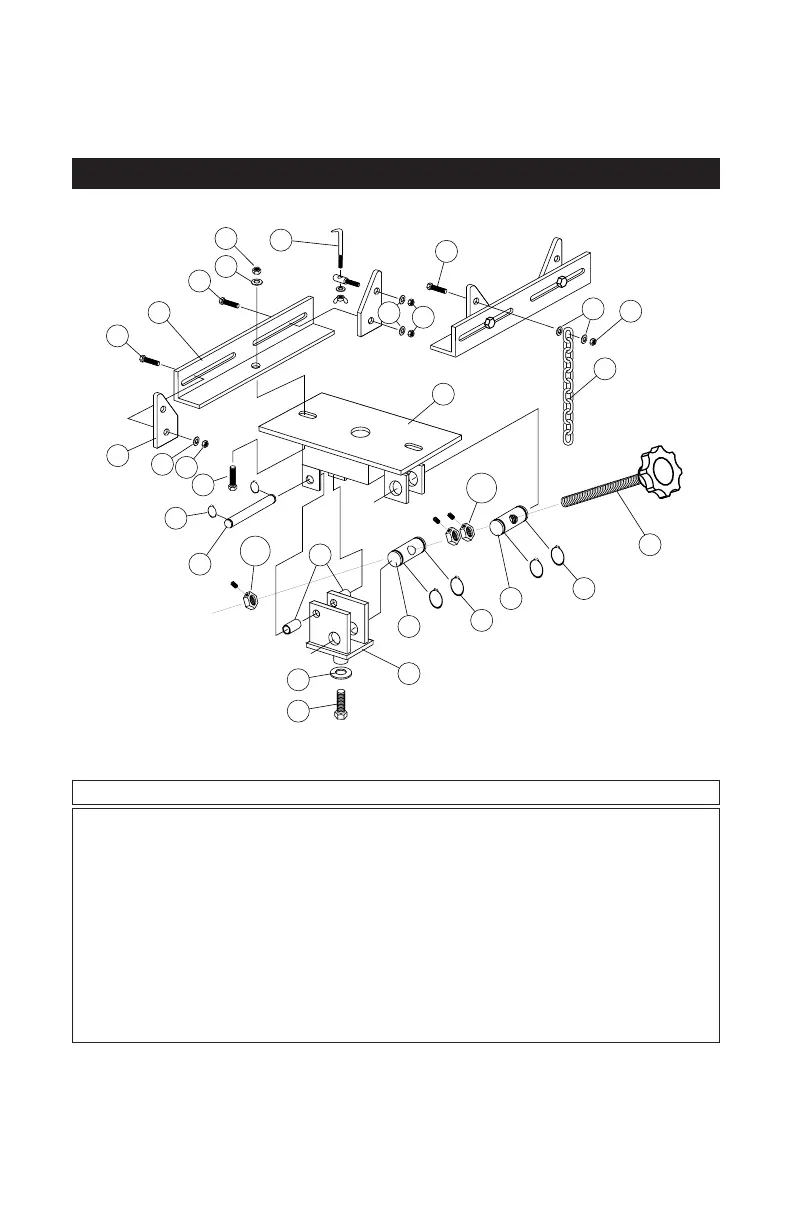

Assembly Diagram
1
14
14
15
15
16
18
16
14
14
20
15
16
17
10
19
2
11
11
13A
21
12
3
4
5
6
7
8
9
13B
1 Platform 1
2 Adjustable Tilt Knob 1
3 Threaded Bushing 1
4 Non-Threaded Bushing 1
5 Pivot Frame 1
6 Pivot Pin 1
7 Mounting Bracket Frame 2
8 Mounting Bracket 4
9 Chain Hook Assembly 1
10 Safety Chain 1
11 Large Snap Ring 4
12 Small Snap Ring 2
13 Lock Nut with Set Screw 3
14 M10 x 25 Bolt 7
15 M10 Washer 7
16 M10 Nut 7
17 M8 x 25 Bolt 1
18 M8 Washer 2
19 M8 Nut 1
20 Large Retaining Washer 1
21 Spacer 2
Part # Description Qty. Part # Description Qty.
Parts List
8. Install Chain Hook Assembly (9) and Safety Chain (10) as shown.
9. Install Assembled Adaptor onto Service Jack Saddle Frame securing with Bolt (14)
and Washer (20).
