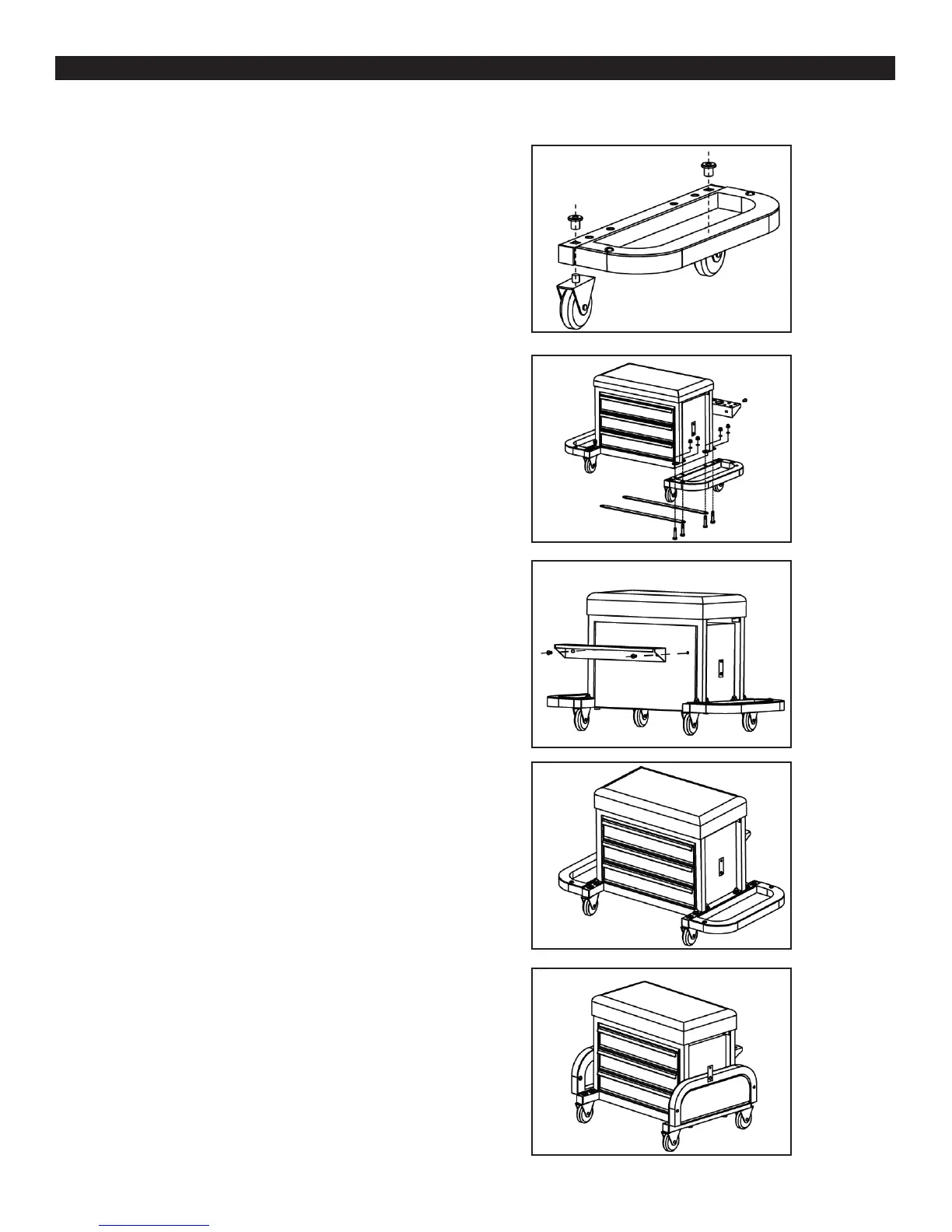

Step 1: Assemble 4 casters (No. 9), through the
hole on the side tray’s frame (No. 4) as shown in
Fig. A. Then tighten the sleeve nut using an inner
hexagon wrench.
Step 2: To assemble two magnetic tool trays, insert
the bolt (No. 10) through the support bar (No. 18),
then through the holes on the frame of side tray
(No. 4), then through the body frame (No. 2), then
add the washer (No. 12) to tighten the nut
(No. 11), as shown (Fig. B).
Step 3: To assemble the rear tool and screwdriver
holder, screw the bolt (No. 5) into the hole on the
back side of the body, as shown (Fig. C).
Step 4: Final assembled product shown (Fig. D).
Step 5: The side tray folds down using the Buckle
(No. 19), which is inserted in the hole in the
frame, as shown (Fig. E).
ASSEMBLY
3
Fig. A
Fig.B
Fig. C
Fig. D
Fig. E
Before assembly of this product, make sure all parts are present. Compare parts with the contents list and diagram.
If any part is missing or damaged, do not attempt to assemble, install or operate the product.
