PERGOLUX Skydance - Page 38

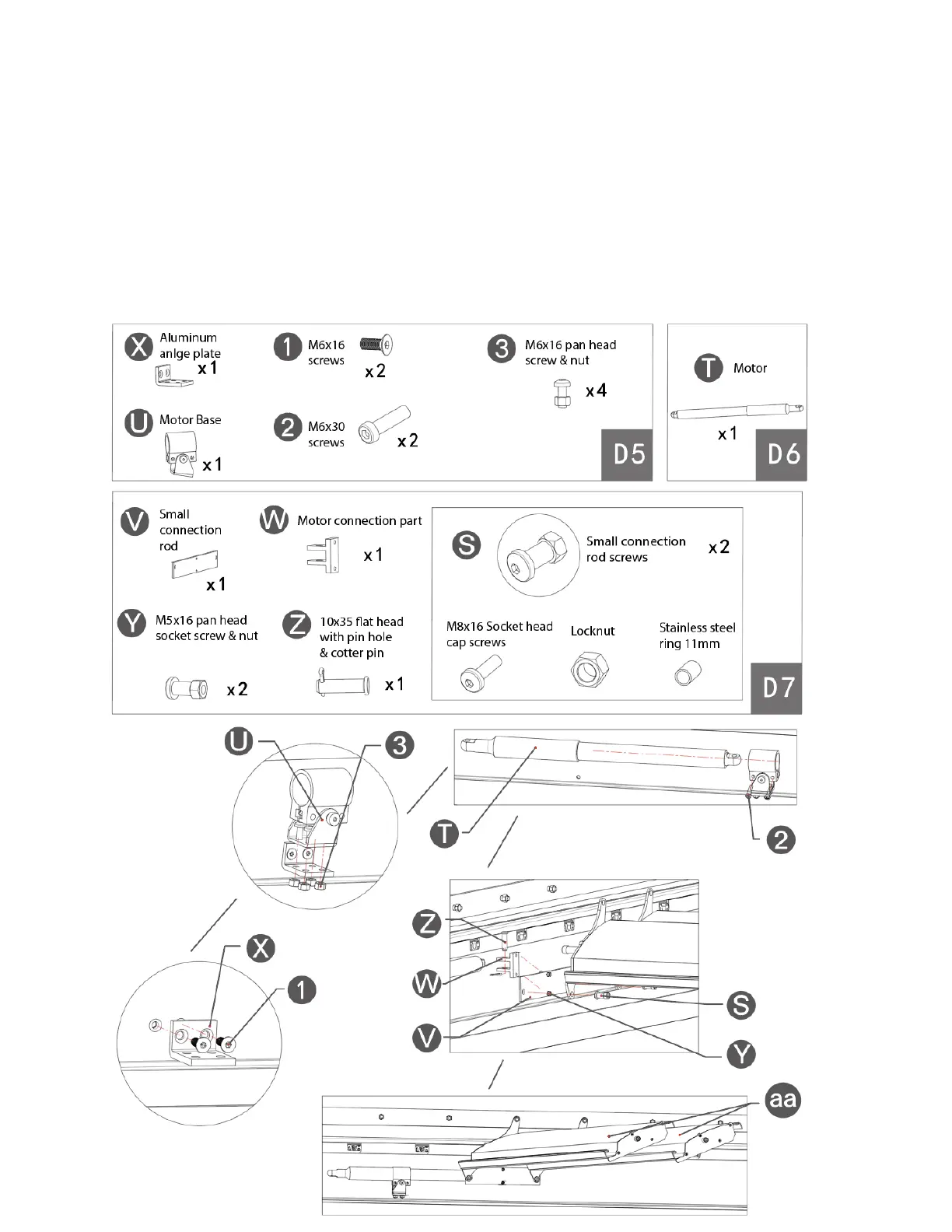

Step 12 Attach the aluminum angle Ⓧ with screws ①.
Install the mounting bracket for the motor Ⓤ with screws ③.
Install the electric motor Ⓣ to the mounting bracket Ⓤ. Connect the
(aa) louvers to the motor with the small connection rod Ⓥ. Fasten
with screws and nuts Ⓨ.
38
