Now it’s time to put the radio back into the dash. You may need to guide the extra cable and connectors
to the side of the dash in order to fit the radio back in.
Please take note that the radio has a pin sticking out its bottom back that fits into a bracket located at the
back of the dash.

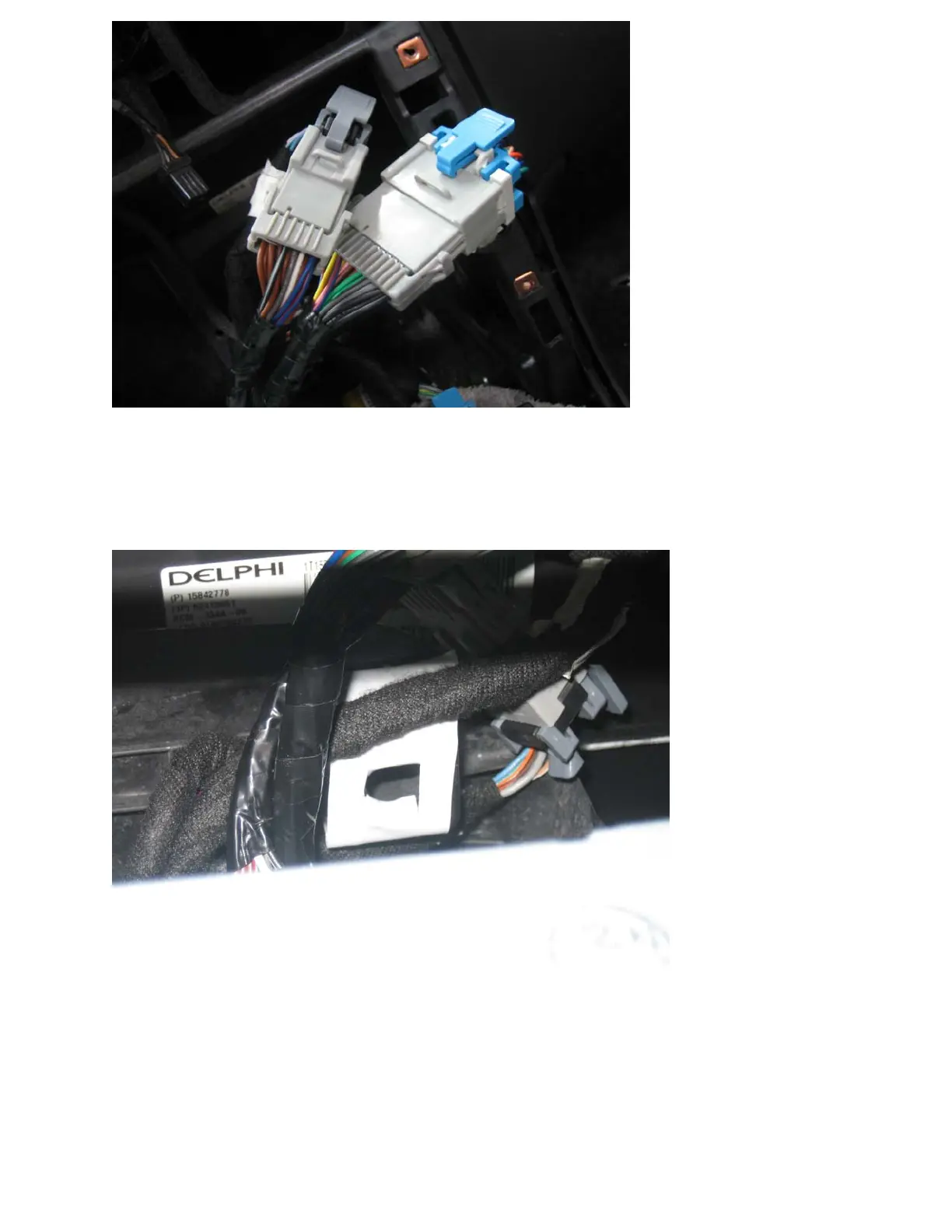

Here is a picture of the bracket the radio “plugs” into
Once the radio is back in the dash, temporary place two screws into it to hold it in place. Now reinstall the
CC Module. Once this was completed, I ran the cable that goes to the PXAMG under the CC Module.
