CTU MEGA 20 Diamagnetic Pump MOD07-2-5 Rev.13 of 28/08/2019
12
PERISO SA

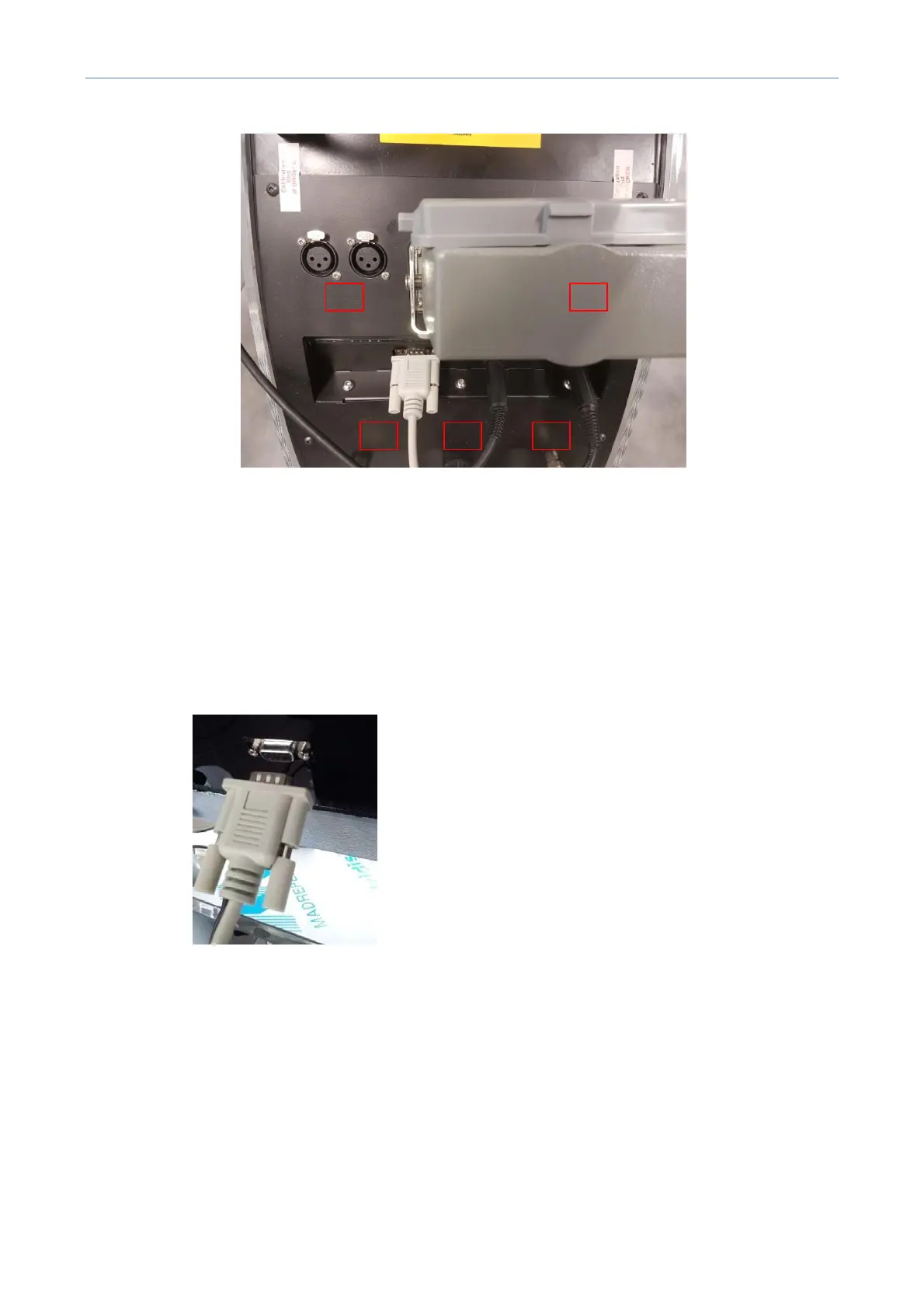

1) Connect the female DB9 pin connector to its male connector on the back of the
power module.
2) Connect the plug of the control module to the socket.
3) Connect the motor plug of the arm to the connector.
4) Connect the plugs of the neutral plates to connectors.
5) Connect the handpiece connector to its socket.
CAUTION: Connect the handpiece to the connector of the power module always
when the device is disconnected to the power supply.
6) Connect the female DB9 pin
connector to its male
connector on the back of the
control module.
1
2
3
4
5
