Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
Installation and Operating Instructions

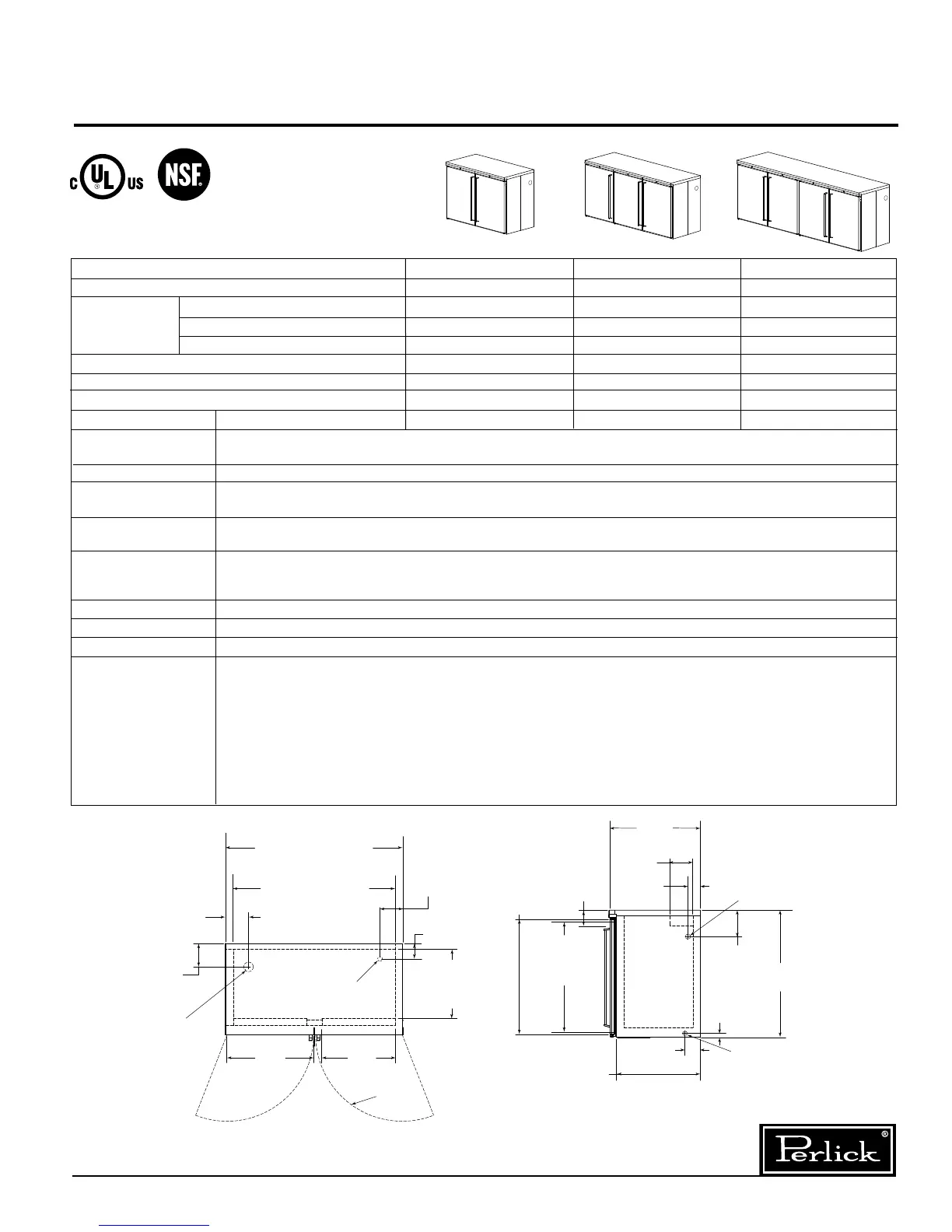

Sizes and Specifications, Custom Back Bar Cabinets – Remote
Form No. Z2278
Rev. 05.06.10
MODEL NOS. BR48 BR72 BR96
NUMBER OF DOORS 2 Door 3 Door 4 Door
CABINET Length 48” (1219) 72” (1829) 96” (2439)
DIMENSIONS Depth 24
3
/
4
” (629) 24
3
/
4
” (629) 24
3
/
4
” (629)
(mm) Height 34
1
/
2
” (876) 34
1
/
2
” (876) 34
1
/
2
” (876)
CASE CAPACITY
(based on 12oz. Long Neck bottle) 15 24 32
AMPS 1.6 2.0 2.5
EVAPORATOR CAPACITY @ 20° F (BTU/HR) 1900 2300 2300
SHIP WT. Lbs. (kg.) 310 (140) 400 (181) 540 (245)
INTERIOR
Door sill: High strength polyethylene. Door pan and ceiling: High strength polystyrene.
Floor pan: Stainless steel. Includes pilasters, (2) vinyl coated shelves and floor rack per door, and interior lights.
EXTERIOR Front, back, top and sides, stainless steel. Bottom galvanized steel. See optional accessories for door finishes.
DOOR HINGING Stainless steel hinges with standard locations as illustrated. For special hinging specify
hinge locations starting from left to right. Field reversible.
DOOR HARDWARE
Door handles: Choice of full length stainless steel, classic 6” black vinyl wrapped pull or top mounted
stainless steel pull tab. Lock finish:
chrome
REFRIGERATION Aluminum fin and copper tube evaporator, epoxy coated coil. Factory installed expansion valve. Choice of R22
or R404A. Copper tube connection stubbed out left side of evaporator assembly. Suction line accepts
3
/
8
” O.D.
copper tubing. Liquid line accepts
1
/
4
” O.D. copper tubing.
ELECTRICAL 115V, 60Hz., 1 phase AC. Contact Perlick for other voltage/ frequency requirements.
PLUMBING Independent floor drain or condensate evap. pan is req’d. Optional 2
1
/
8
” I.D. floor access kit-left rear corner.
INSULATION Foamed-in-place polyurethane, 2” walls, 1
1
/
2
” top.
OPTIONAL • Leg set • Brass hardware Door finishes
ACCESSORIES & • Tapping kit (classic and full length only) Black vinyl coated
MODIFICATIONS • Laminated top • Caster sets Stainless steel
• Laminated ends • Base plates Customers choice of laminate
• Floor access kit Painted in color of choice
Prepared for field lamination
Glass door with black vinyl coated frame
Glass door with stainless steel frame
Glass door with laminated frame
23-1/2”
[597]
DOOR
R23-1/2”
6-3/16”
[157]
6-5/16”
[161]
4-1/2”
[107]
OPTIONAL
FLOOR
ACCESS
KIT 2”
5-1/8”
[130]
19 7/8”
[505]
DOOR
OPENING
18-3/4” [476]
BACK LINER
TO INSIDE OF
DOOR SILL
NOTE “A” 3/4” NPT DRAIN EXIT
NOTE “B” 1” NPS DRAIN ACCESS
6-3/8”
[163]
7-3/4”
[197]
24-3/4”
[629]
7-3/16”
[182]
34 1/2”
[876]
4-3/16”
[106]
22-3/4”
[578]
NOTE “A”
NOTE “B”
1-1/8”
[29]
3-7/16”
[87]
31-1/4”
[794]
DOOR
HEIGHT
27-7/16”
[697]
DOOR
OPENING
96” [2439] 4 DOOR
72” [1829] 3 DOOR
48” [1219] 2 DOOR
92” [2337] 4 DOOR
68” [1727] 3 DOOR
44” [1118] 2 DOOR
REFRIGERATION &
ELECTRICAL ACCESS
RIGHT OR LEFT
