10

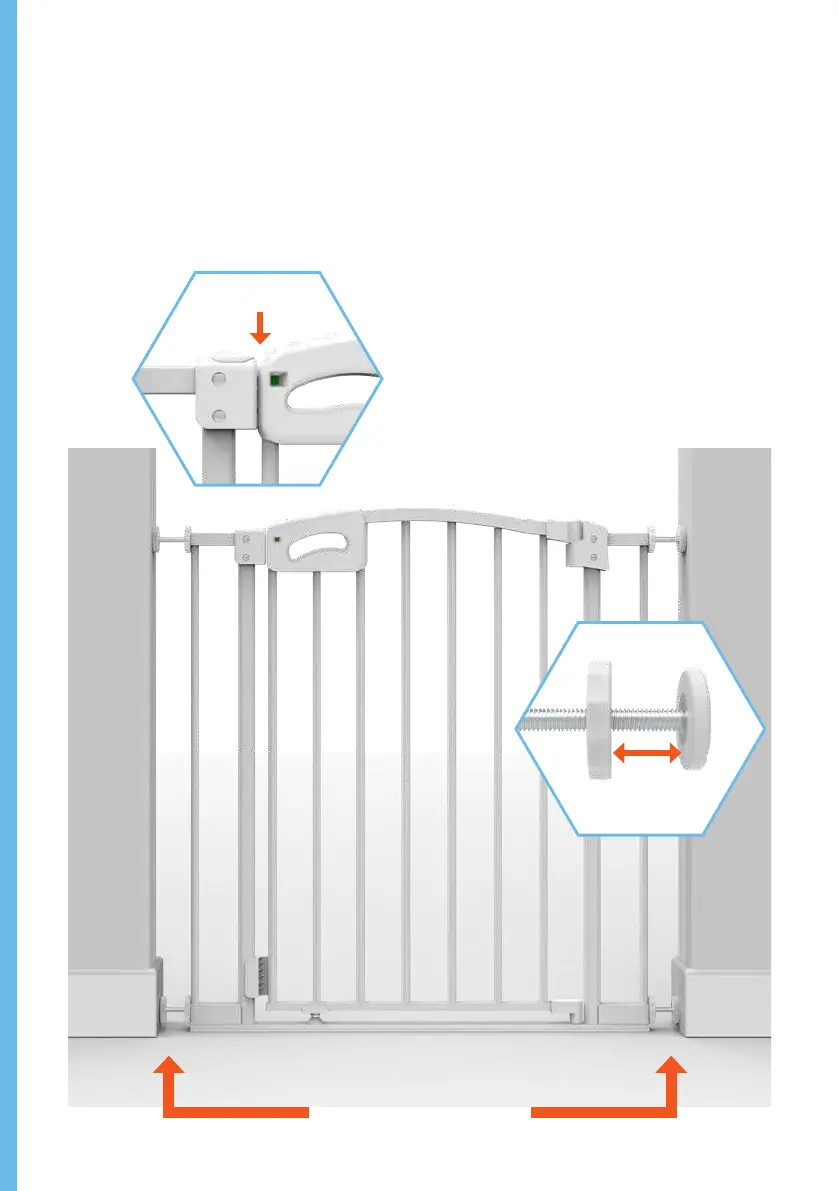

Align gate with Mounting Cups and tighten Adjuster Screws by
turning clockwise, start with the bottom Adjuster Screws, then
do the top. Tighten equally until there is only a 0.05” gap in the
locking mechanism. Regularly check tension of all mounting
bolts and adjust if required.
4.
EQUAL
Note: Do not extend Adjuster Bolt further than 2.4”.
Max. 2.4”
Max. 0.05”
