PERMCO Bushing Series - Page 2

Tool List and Kits
1. Arbor Press
2. Bearing Puller
3. Bushing Removal Kit
4. Collets
5. Bushing Installation Kit
6. Soft Face Hammer
7. Medium Grit Stone
8. Oil and Grease
9. Torque Wrench
10. Bench Vise
11. Crayon or Marker
12. Permatex Aviation
Form-A-Gasket #3
13. Snap Ring Pliers
14. Lip Seal Install Plug
15. Motor Seal Expansion
Sleeve
Bushing Insertion Kits
124 Series - T-1194
197 Series - T-1188
257 Series - T-1175
360 Series - T-1199
Kits includes insertion tool and
guide or see sketches to right.

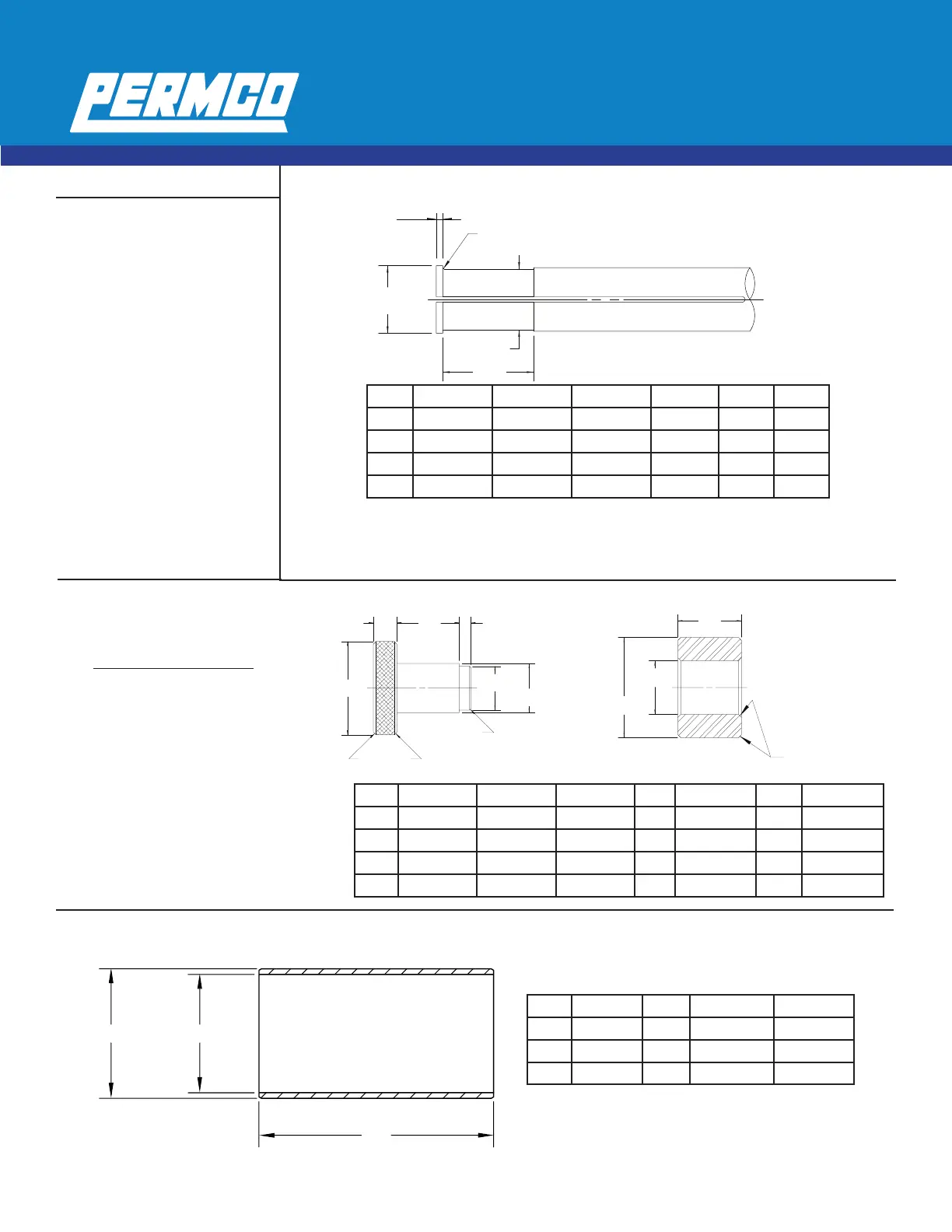

Tool List
Motor Seal Expansion Sleeve
Series A Dia. B Dia. C D Collet OTC #
124 0.920/0.940 0.830/0.850 0.085/0.095 1.22/1.28 T-1195 33863
197 Stock Stock 0.085/0.095 Stock T-1170 33863
257 1.260/1.280 1.140/1.160 0.060/0.070 As Shown T-1174 33865
360 1.372/1.382 1.250/1.260 0.100/0.120 As Shown T-1202 33865
Series A B Dia. C Dia. D Dia. E F Dia. G. Dia.
124 1.307/1.312 0.939/0.941 1.057/1.059 2.00 1.298/1.302 2.000 1.067/1.069
197 1.410/1.415 1.119/1.121 1.275/1.277 2.00 1.395/1.400 2.375 1.285/1.287
257 1.811/1.815 1.286/1.288 1.443/1.445 1.94 1.800/1.804 1.940 1.453/1.457
360 2.002/2.004 1.496/1.498 1.655/1.657 2.50 1.999/2.001 2.500 1.665/1.667
Series Tool Part # A B Dia. C Dia.
124 Q-1956-5 2.500 0.885/0.889 0.940/0.944
257 Q-1956-3 2.500 1.250/1.254 1.286/1.290
360 Q-1956-2 2.500 1.259/1.263 1.379/1.383
Bushing Removal
Need 1 kit (T-1243) plus the collet for each series or
the OTC collet modified per sketch shown above.
Bushing Insertion
“C”
R 0.020 MAX.
“A” DIA.
“B” DIA.
“D”
“D” DIA.
0.50 “A”
0.25
“B” DIA.
“C” DIA.
0.03 x 45°
0.06 x 45°
“E”
“G” DIA.
0.06 x 45°
4 Places
“B” DIA.“C” DIA.
“A”
“F” DIA.
