Before beginning installation, please
ensure you have all the parts you’ll
need: 2 orange wand brackets (top &
bottom), 4 Phillips machine screws, 4
hex nuts.

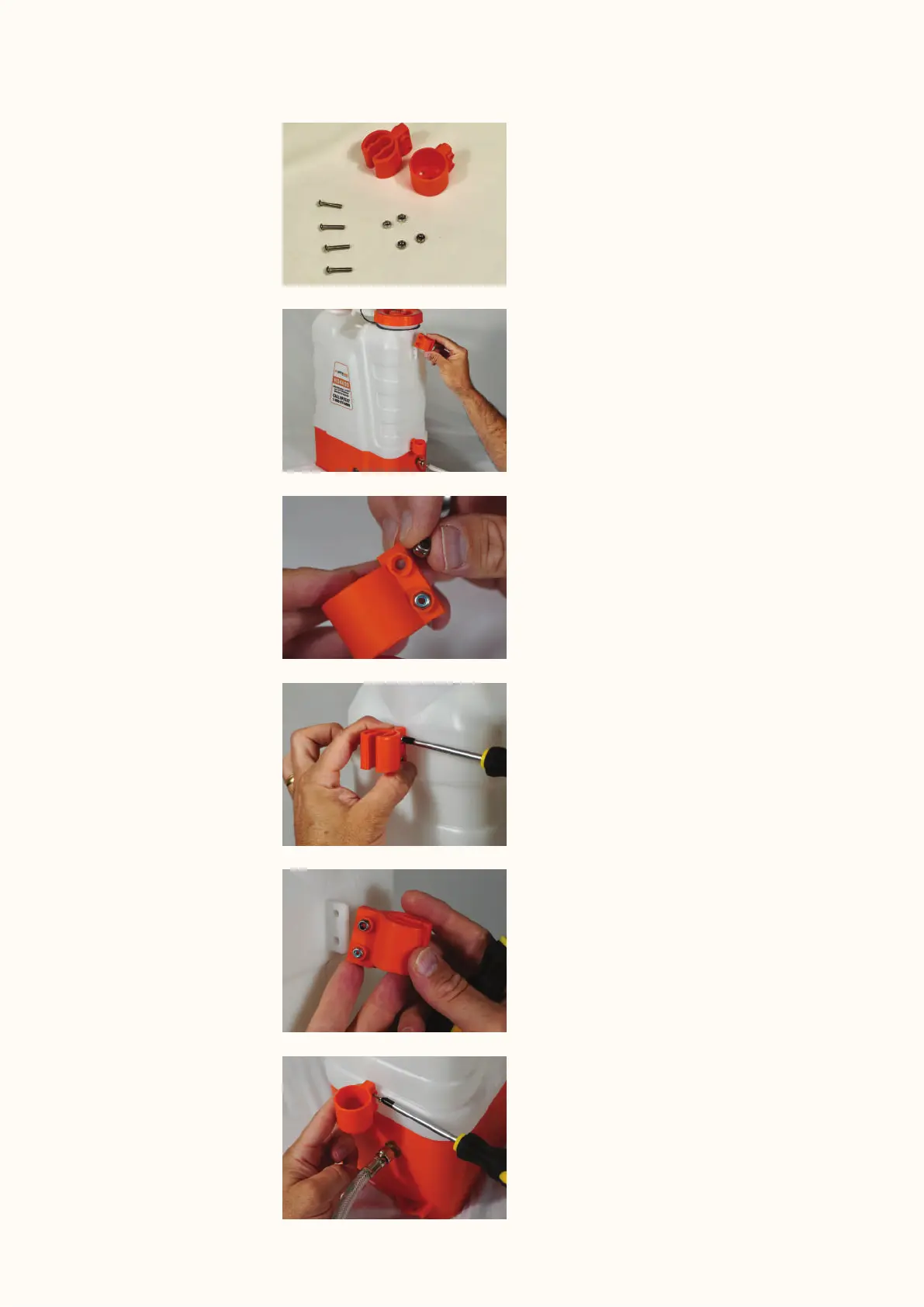

ATTACHING THE WAND CLIP – HD4000
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
STEP 1
The orange wand clip bracket goes
on the top, while the orange wand
tray bracket goes on the bottom.
Insert two hex nuts into the hex
shaped openings on the front of the
orange wand tray bracket and then
place it onto the bottom tab that
protrudes from the bottom of the
tank.
Using a Phillips screwdriver, thread
two screws through the bracket &
the hex nuts. You may need to press
the nut into the bracket while
tightening.
Insert two hex nuts into the hex
shaped openings on the front of the
orange clip tray bracket and then
place it onto the top tab on the tank.
Thread two screws as in step #4.
