49
(k) To fit a nozzle assembly to the nozzle holder body. hold it hard against
the pressure face and tighten the nozzle nut
(l) To complete the assembly of the injector, grease the spring assembly
and replace it. together with the adjuster and cap nut
(m) Reset the fuel injector release pressure to the figure shown under
Technical Data. A test pump for this purpose can be obtained from
Petters Ltd or their agents. To adjust the release pressure, screw in the
adjusting screw (8) to increase the pressure or out to decrease it
(n) Injectors not required for immediate use should have pipe connections
sealed against the admission of dirt, etc.

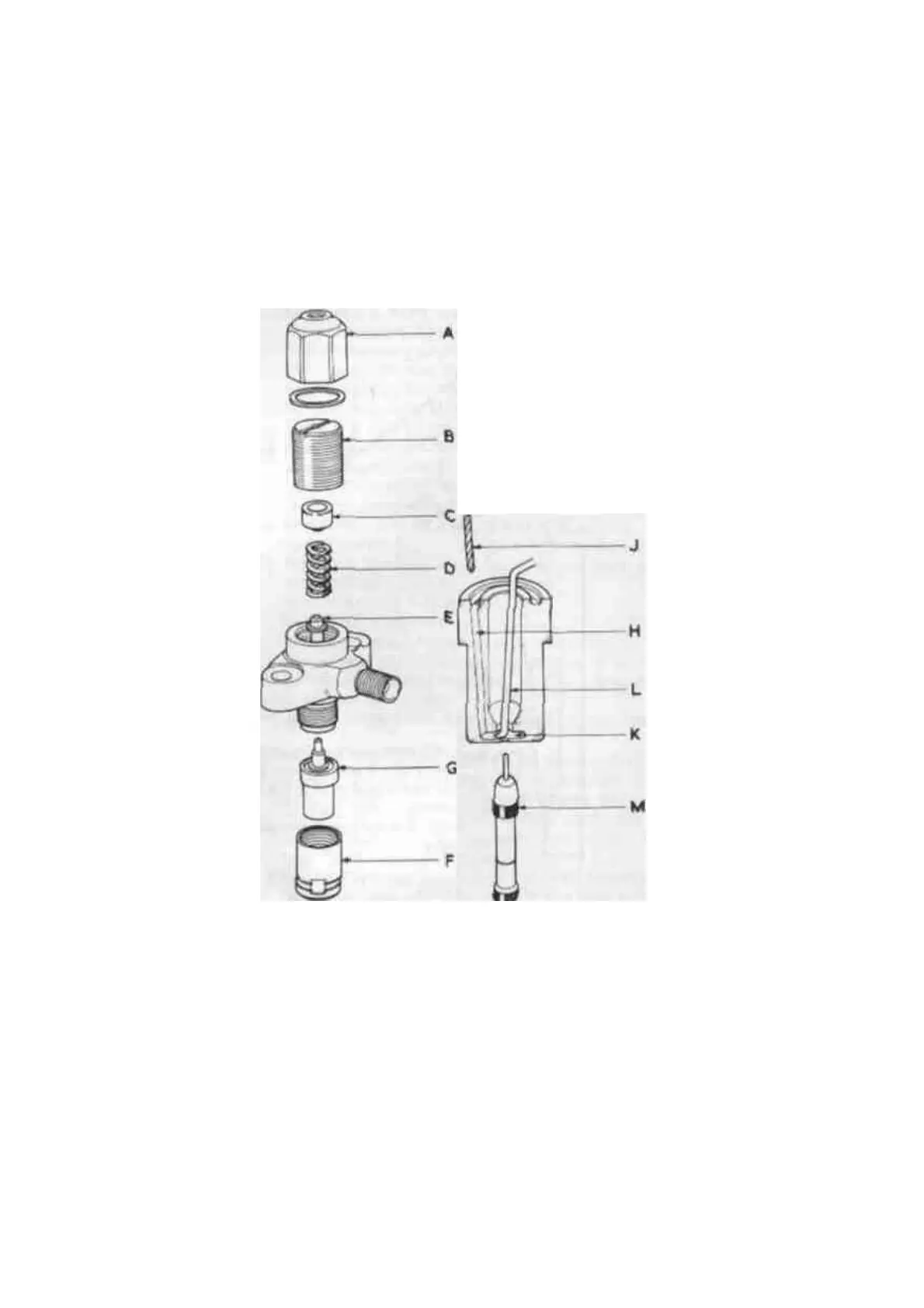

fig 18
