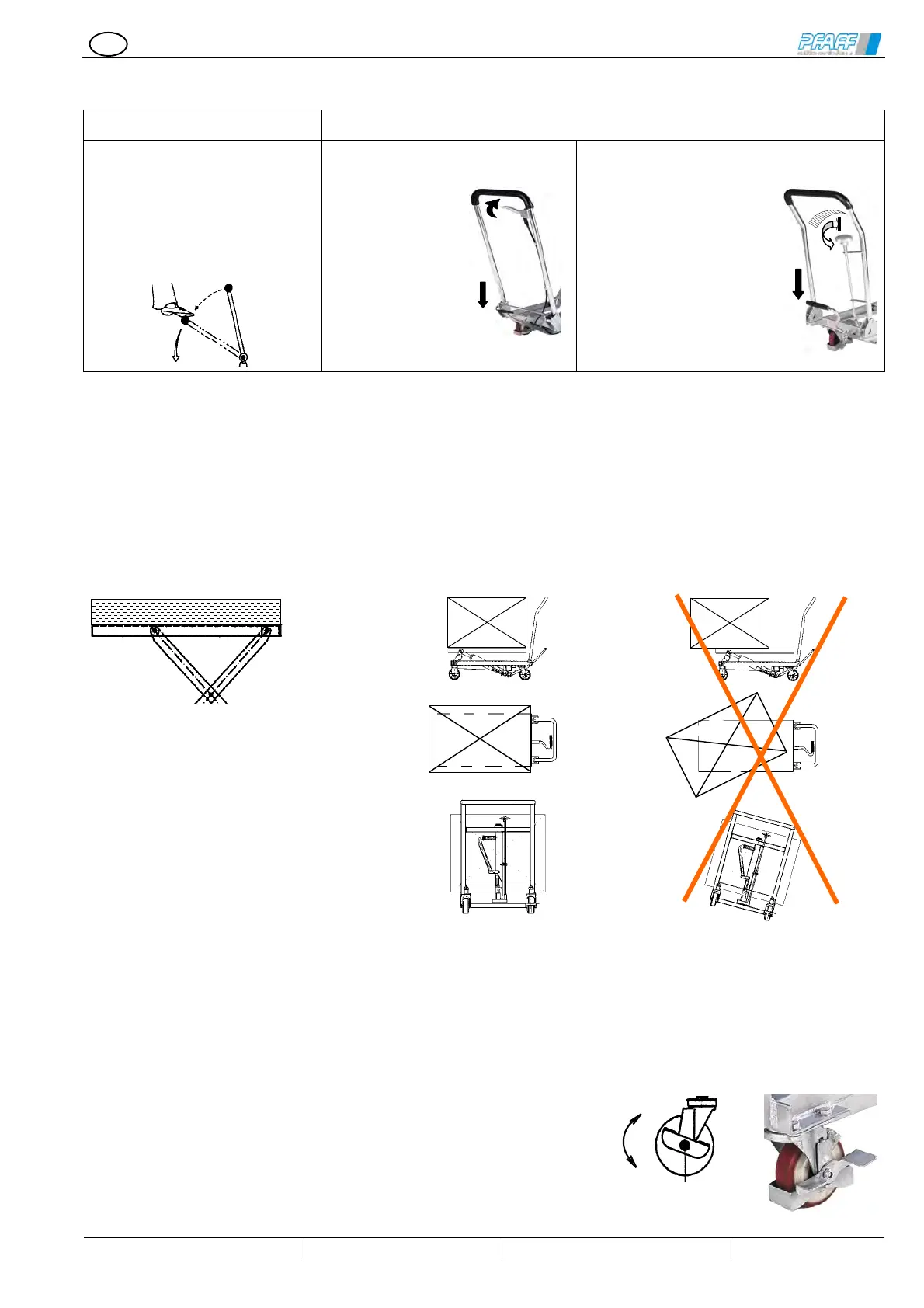

Operating Instructions
RAISING LOWERING
Type HX 150; HX 300; HX 500;
HX 750; HX D 350
Type HX 150 Type HX 300; HX 500; HX 750; HX D 350
The scissors lift truck is
equipped with a hydraulic
pump. Use the foot pedal to
raise the load.
.
Lift up the
lowering lever.
Pressing the
lever further
increases the
lowering speed.
Turn the lowering valve
counterclockwise.
Turning the valve further
increases the lowering
speed.
The operator must adjust
the lowering speed to
meet requirements.
Handling:
Check the following before you start work:
The operator controls work properly
The roller brake works properly
The rollers and roller axles are in good condition
Check for leaks
Check setting, tension and wear of the lifting chains.
Picking up the load
Make sure the load does not exceed the carrying capacity of the scissors lift truck
The load must be evenly distributed
across the platform
Moving with a load
Do not use the scissors lift truck on a sloping surface.
When you transport the load, raise it as little as possible off the ground (max. 100 mm), but watch the clearance
below the load.
Watch out for obstacles in the path of the truck!
When you stop the truck, be sure to apply the roller brake.
Be sure that the load is lowered before you move the truck.
Roller Brake
A brake is mounted on the steering rollers of the scissors lift truck.
Be sure that the brake is applied and locked when you stop the lift truck.
locking
loosening
