The Pflueger Patriarch reel is a high-performance fishing reel designed for durability and smooth operation, suitable for a range of fishing applications. It is part of the Monarch series, indicating a consistent standard of quality and design across related products.

Function Description:

The Pflueger Patriarch reel is primarily designed for casting and retrieving fishing line, providing a controlled and smooth experience for anglers. Its core function revolves around a spool that holds the fishing line, a drag system that allows for controlled line release when a fish pulls, and a handle for manual retrieval. The reel is convertible for both right-hand and left-hand wind, offering versatility to suit individual angler preferences. The drag system is disc-based, ensuring consistent and reliable performance during fights with fish. The reel's construction emphasizes precision and durability, with various components working in concert to deliver a seamless fishing experience.

Important Technical Specifications:

The reel is available in multiple sizes, indicated by designations such as 3/4, 5/6, 7/8, 9/10, and 11/12, which likely correspond to different line weights or capacities. The parts list provides specific part numbers for each size, confirming variations in components like the Frame Assembly, Reel Foot, Spool Assembly, and Shaft O-Ring to accommodate these different sizes.

Key components and their functions include:

Frame Assembly (Part No. 1389384-1389388): The main structural body of the reel, housing all internal components.
Spool Assembly (Part No. 1389675-1389679): The part that holds the fishing line. It is designed for easy removal and replacement.
Clutch Assembly (Part No. 1389654-1389655): A critical component in the drag system, controlling the resistance on the line.
External Key Washer (Part No. 1389656-1389657): Works in conjunction with the clutch assembly to ensure proper drag function.
Push Head (Part No. 1389658): Likely part of the spool release mechanism.
Spool Click Spring (Part No. 1329244) and Spool Click Pin (Part No. 1329245): Components that provide an audible click when the spool is rotating, indicating line movement.
Disk Plate (Part No. 1389659-1389660): Part of the drag system, providing friction.
Axle (Part No. 1389661-1389662): The central shaft around which the spool rotates.
Shaft O-Ring (Part No. 1389663-1389667): Provides a seal to protect internal components from water and debris.
Drag Click Spring (Part No. 1329256): Provides the clicking sound for the drag system.
Handle Assembly: Comprises the Handle Screw (Part No. 1329236), Handle Cup (Part No. 1389670), Handle Knob (Part No. 1389671-1389672), and Handle Rivet (Part No. 1389673-1389674), allowing for manual line retrieval.
Counter Balance (Part No. 1329015-1329030) and Counter Balance Screw (Part No. 1329241): Components designed to ensure smooth and balanced rotation of the handle.

Usage Features:

Convertible for Right/Left Hand Wind: The reel can be easily converted from left-hand to right-hand wind. This involves removing the spool, detaching the axle assembly by gripping and turning its knurling counter-clockwise, removing the external key washer and clutch assembly, rotating the clutch assembly 180 degrees, replacing it along with the key washer (stainless steel side out), and then reassembling the axle and spool. This feature enhances user comfort and adaptability.
Easy Spool Release: The spool can be removed from the frame by rotating it until the spool release button is visible, then depressing the button with an index finger and pulling the spool off the axle. This facilitates line changes and maintenance.
Adjustable Drag System: The disc-drag system should always be set to the minimum setting when not in use to prevent compression, which can prolong the life of the drag components.
Durable Construction: The use of specific part numbers for various sizes suggests a tailored design for different fishing demands, implying robust construction suitable for various conditions.

Maintenance Features:

The Pflueger Patriarch reel is designed for straightforward care and maintenance to ensure long-lasting performance. The maintenance routine is consistent with other reels in the Monarch series.

Regular Cleaning:
1. Remove the fishing line and backing.
2. Remove the spool from the frame.
3. Flush away dirt from both the spool and frame under a stream of warm water.
4. Carefully dry all components with a lint-free cloth.
Lubrication:
1. Lubricate specific points on the reel with a good quality oil, as illustrated in the diagrams. These points typically include moving parts and friction surfaces.
2. Ensure the spindle is adequately greased. This is crucial for smooth spool rotation and to prevent wear.
Drag System Care: Always turn the disc-drag to its minimum setting when storing the reel. This prevents compression of the drag system, which can lead to premature wear or damage to the drag washers.
Storage: Ensure both the reel and the fishing line are completely dry before storing them in a case or pouch. This prevents corrosion and mildew.
Warranty: The reel comes with a one-year warranty, and detailed warranty information is available on the manufacturer's website (www.pfluegerfishing.com). This indicates manufacturer confidence in the product's quality and provides assurance to the user.

Overall, the Pflueger Patriarch reel is presented as a reliable, user-friendly, and maintainable fishing tool, suitable for anglers who value performance and longevity in their equipment.

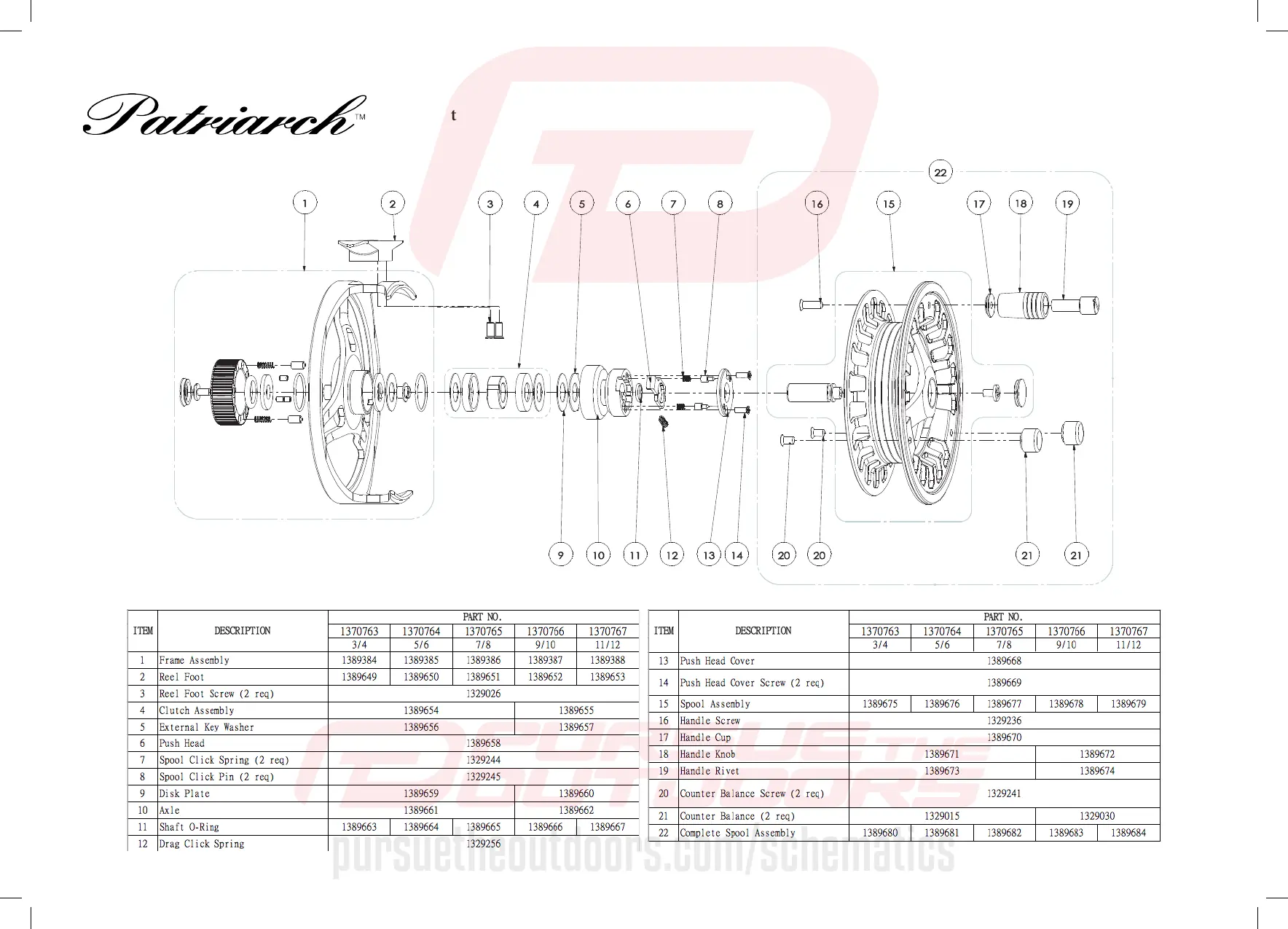

Pflueger Patriarch - Pflueger Patriarch Parts List
