9

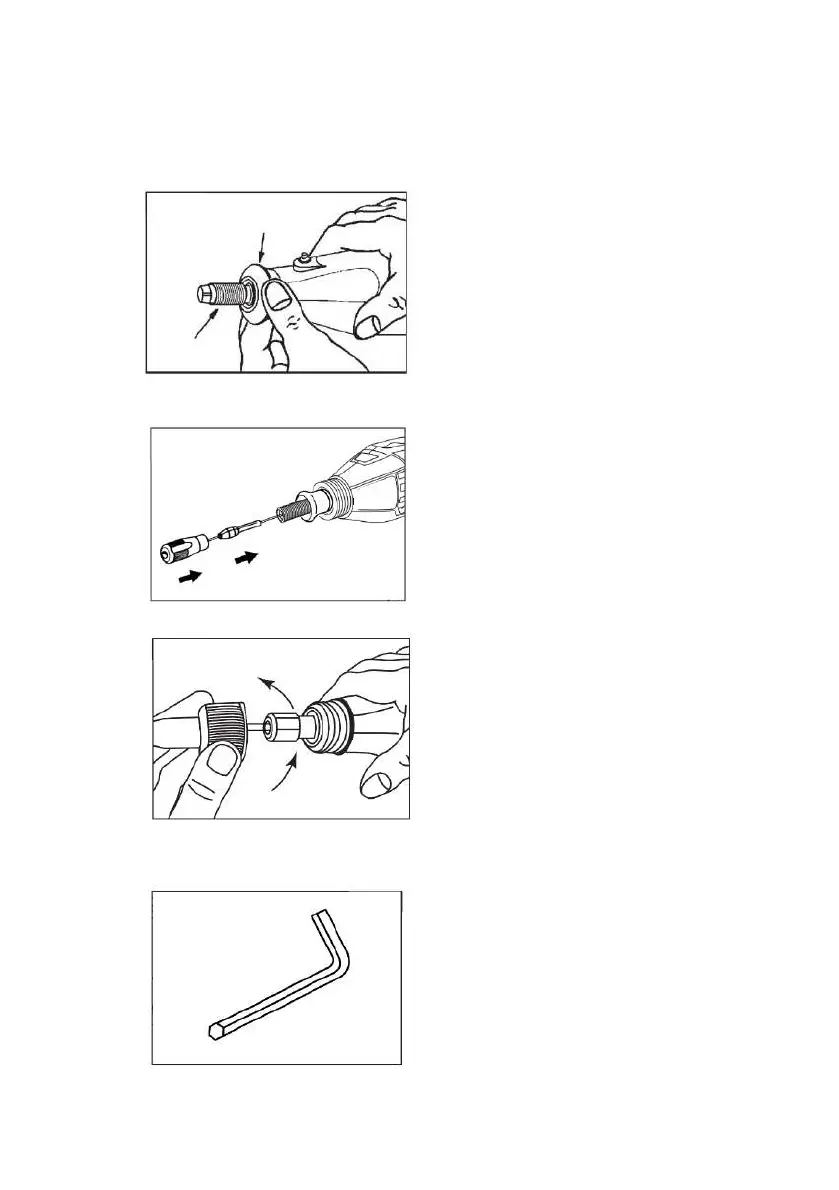

1. Turn and remove the umbrella Cover.
2. Pull put the shaft core and place into the spindle hole. Fix it as per the
instruction for collet assembly.
3. Turn and fit the shaft cover onto the rotary tool head.
4. Attach accessory to flexible head same as above instruction for “installing
accessories”. The only difference is that we need use special included wrench
to lock shaft from rotation.
Flexible Shaft Assembly
