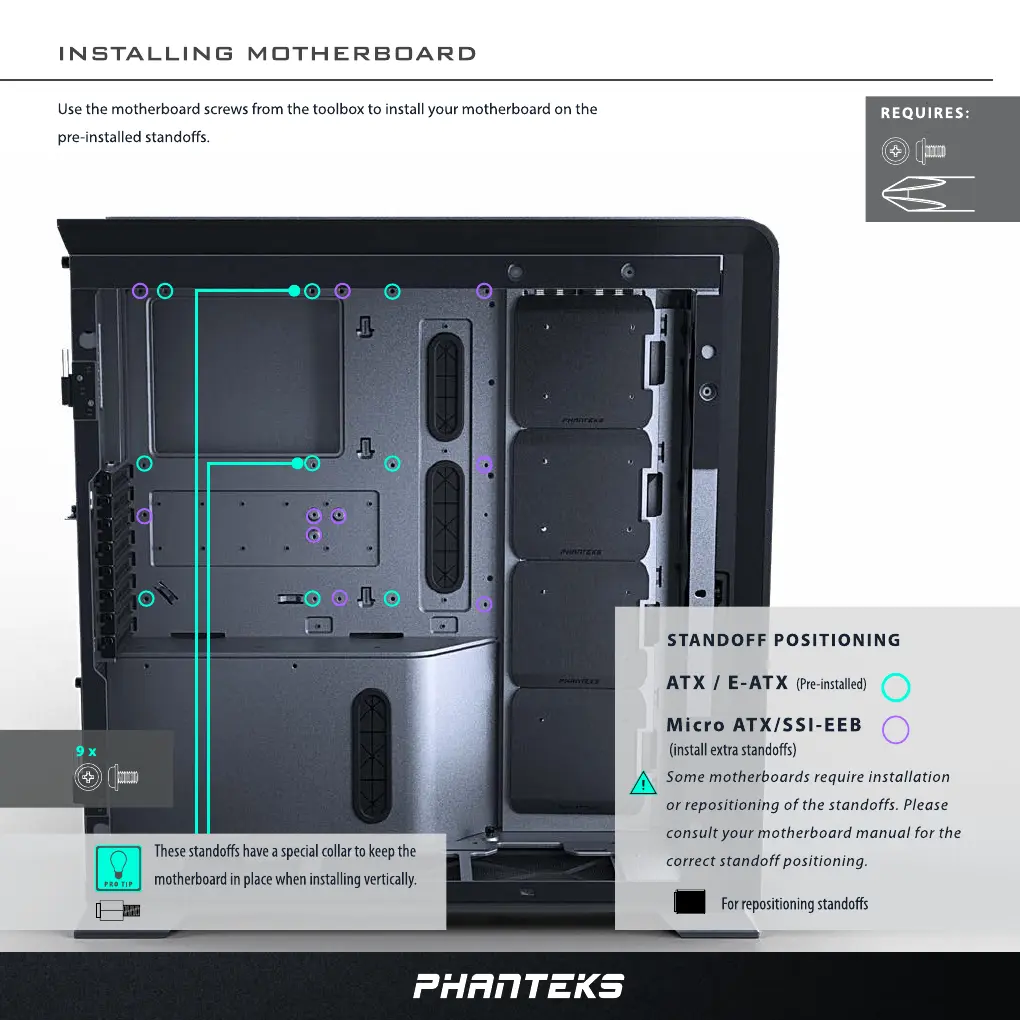

INSTALLING MOTHERBOARD
Use the motherboard screws from the toolbox to install your motherboard on the
pre-installed standoffs.
PRO up
Thesestandoffshaveaspecialcollarto keepthe
motherboardin placewheninstallingvertically.
P HAD TEKS
REQUIRES:
STANDOFF POSITIONING
ATX / E-ATX (Pre-installed)
Micro ATX/SSI-EEB
(installextrastandoffs)
Some motherboards require installation
or repositioning of the standoffs. Please
consult your motherboard manual for the
correct standoff positioning.
Forrepositioningstandoffs
