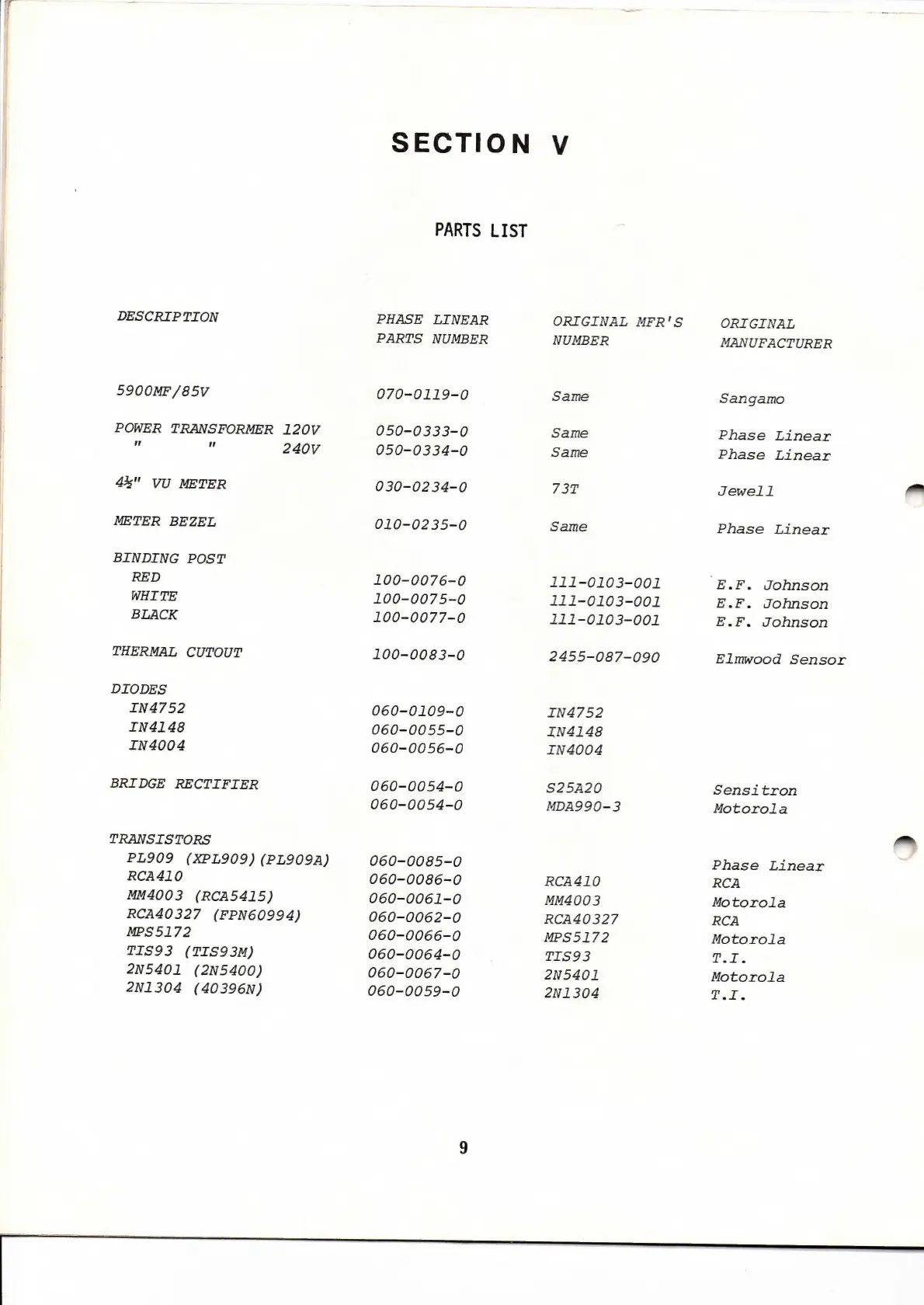

DESCRIPTION
5900MF/85V
POWER TRANSFORMER 120V
m " 240V
4%" VU METER
METER BEZEL
BINDING POST
RED
WHITE
BLACK
THERMAL CUTOUT
DIODES
IN4752
IN4148
IN4004
BRIDGE RECTIFIER
TRANSISTORS
PL909 (XPL909) (PL909A)
RCA410
MM4003 (RCA5415)
RCA40327 (FPN60994)
MPS5172
TIS93 (TIS93M)
2N5401 (2N5400)
2N1304 (40396N)
SECTION У
PARTS LIST
PHASE LINEAR
PARTS NUMBER
070-0119-0
050-0333-0
050-0334-0
030-0234-0
010-0235-0
100-0076-0
100-0075-0
100-0077-0
100-0083-0
060-0109-0
060-0055-0
060-0056-0
060-0054-0
060-0054-0
060-0085-0
060-0086-0
060-0061-0
060-0062-0
060-0066-0
060-0064-0
060-0067-0
060-0059-0
ORIGINAL MFR'S
NUMBER
Same
Same
Same
ТЗТ
Same
111-0103-001
111-0103-001
111-0103-001
2455-087-090
IN4752
IN4148
IN4004
S25A20
MDA990-3
RCA410
MM4003
RCA40327
MPS5172
TIS93
2N5401
2N1304
ORIGINAL
MANUFACTURER
Sangamo
Phase Linear
Phase Linear
Jewell
Phase Linear
Е.Е. Johnson
E.F. Johnson
E.F. Johnson
Elmwood Sensor
Sensitron
Motorola
Phase Linear
RCA
Motorola
RCA
Motorola
TE.
Motorola
TS.
