17” CDT Color Monitor 107S7
24
3. Main panel

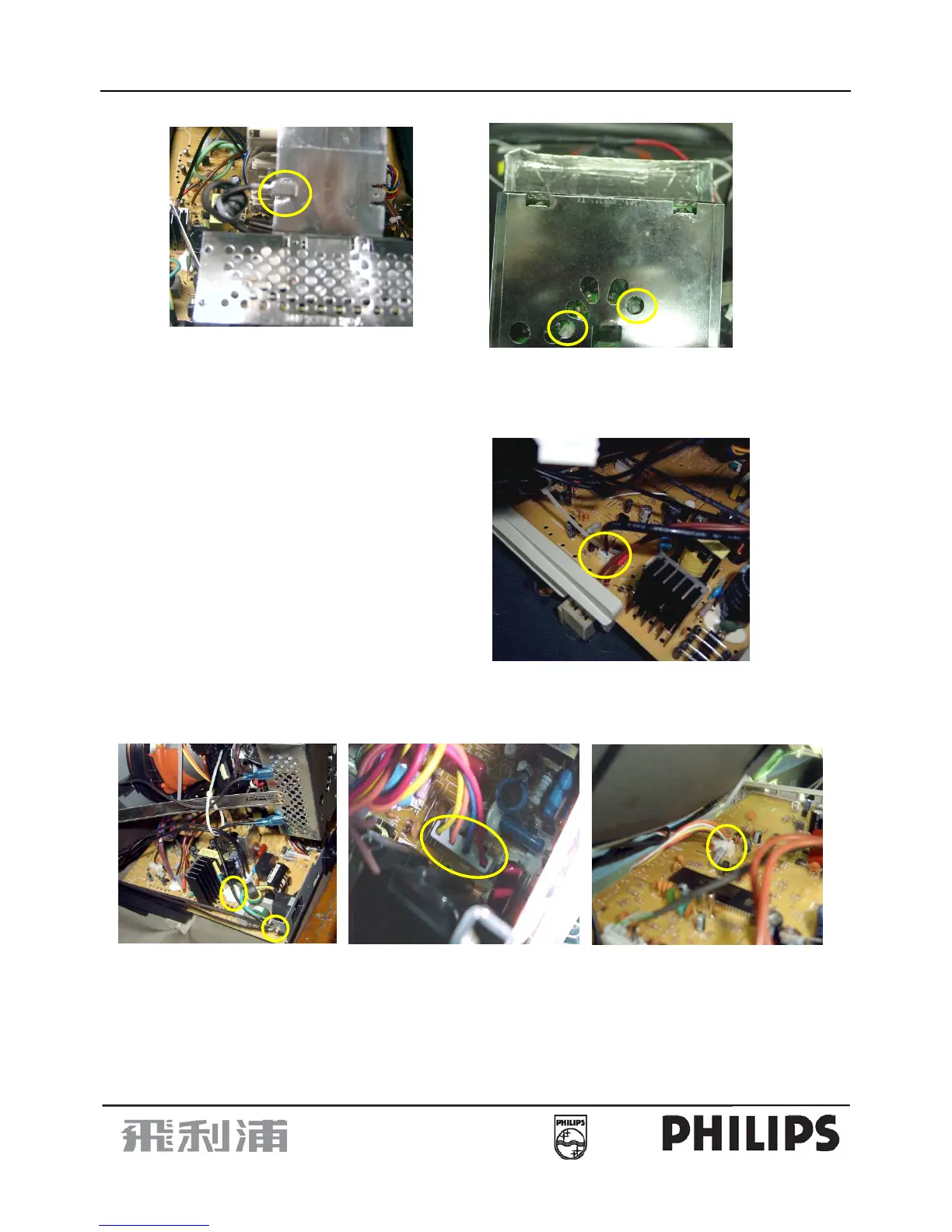

Disconnect the rotation coil from Main
board as shown in Fig. 9
Disconnect the degaussing coil and ground-screw
from Main board as shown in Fig. 10.
Disconnect the BY coil from Main board
as shown in Fig. 11.
Disconnect the key board connector P102 from
Main board as shown in Fig. 12
Disconnect the ground pins from Main board
as shown in Fig. 13
Disconnect the Hi-Pot cap between the CRT and
Main board as show in Fig. 14.
