17” CDT Color Monitor 107S7
79
Adjacent H&V < 6% (prime modes).
Overall H&V < 14% (other modes).
Adjacent H&V < 7% (other modes).
•

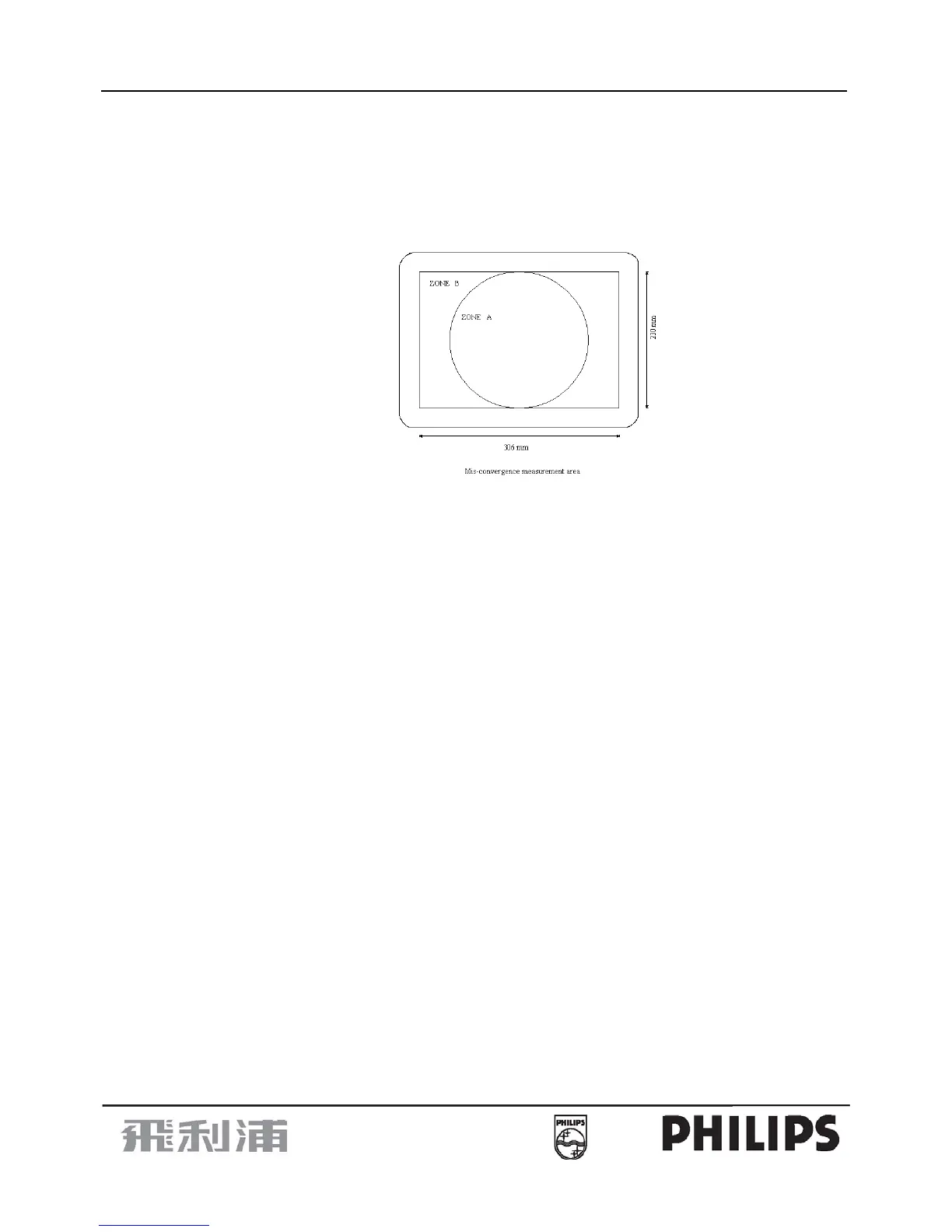

Convergence - Zone A < 0.25mm, Zone B < 0.35mm.
Zone B < 0.4mm (for modes < 50kHz).
• Jitter - < 0.1mm. (No
annoying level by visual)
3.3 Optical performance
• Focus - “me” pattern characters must be clearly identified at prime modes,
set brightness 50%, set contrast for 25Fl at full white.
• Full white luminance - 29 ± 4 fl (brightness: 50%, contrast: maximum).
• 5x5cm block luminance - 40 ± 5 fl (brightness: 50%, contrast: maximum).
•
Raster light output (w/o video signal, brightness at 50%, contrast at 0%) -
< 0.3 fl (raster has to disappear when brightness set to 0%).
• Raster light output (w/o video signal, brightness at 100%, contrast at 0%) -
> 0.3 fl.
• High Brightness (5x5cm white block, brightness at 50%, contrast at maximum)-
(check at 9300K only)
Text: 40 ± 5 fl
Internet: 60 ± 8 fl
Game: 80 ± 8 fl
Multimedia: 100 ± 10 fl
• Brightness uniformity - > 75% (9 block measurements for center to corner).
• Preset 9300K colour - x = 0.283 ± 0.015
y = 0.297 ± 0.015
•
Preset 6500K colour - x = 0.313 ± 0.015
y = 0.329 ± 0.015
•
Preset sRGB colour - x = 0.313 ± 0.015, (brightness set at 23 ± 3 fl)
y = 0.329 ± 0.015.
