ADJUST SIDE CURVE under ADJUST SHAPE allows you to adjust two of the five preset options.
These two options are PINCUSHION and BALANCED pincushion. Note: use these features only
when the picture is not square.

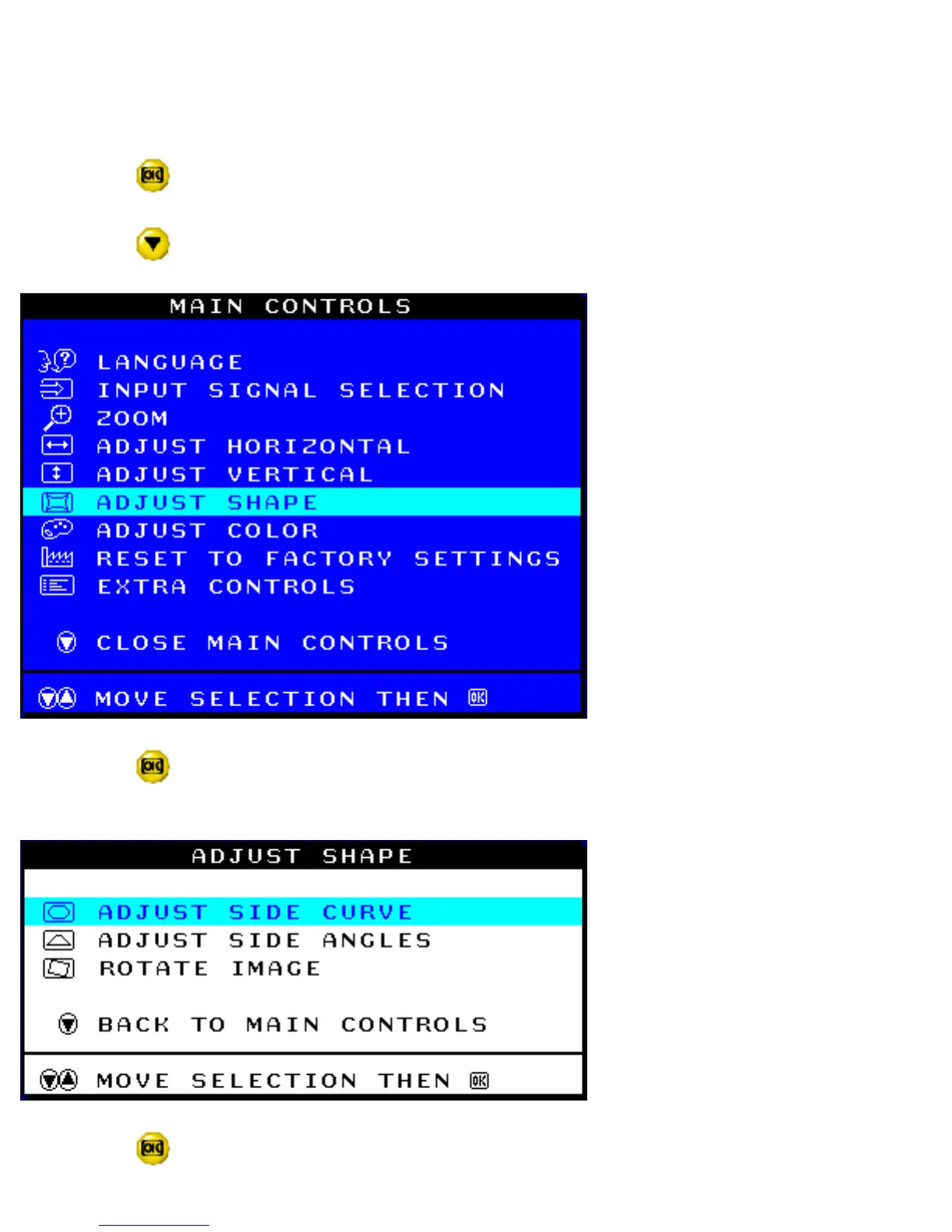

1) Press the
button on the monitor. The MAIN CONTROLS window appears.
2) Press the
button until ADJUST SHAPE is highlighted.
3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should be
highlighted.
4) Press the button. The SIDE CURVE window appears. PINCUSHION should be highlighted.
