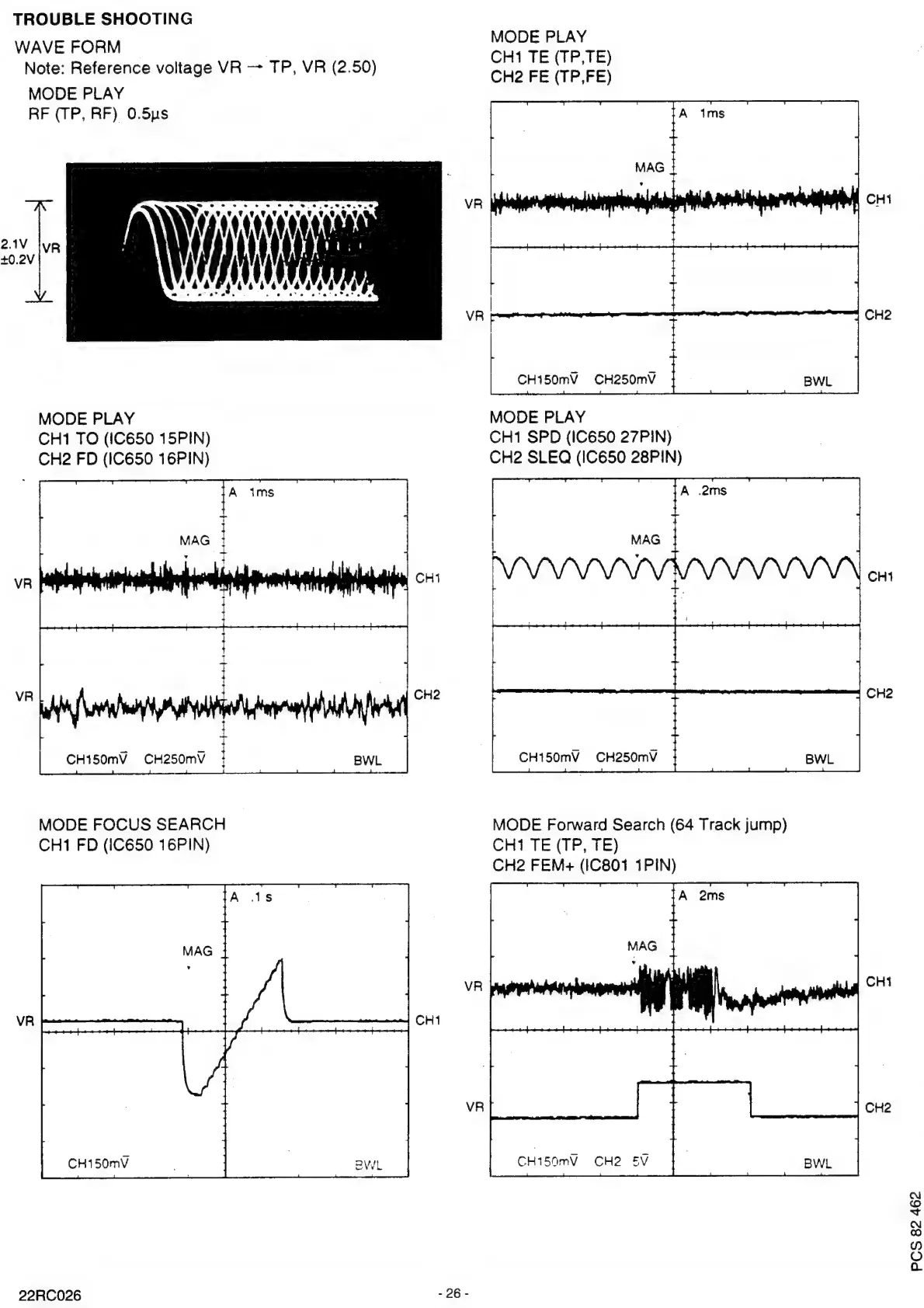

TROUBLE SHOOTING
WAVE FORM —
Note: Reference voltage VR — TP, VR (2.50)
MODE PLAY
RF (TP, RF) 0.5us
\PRXEXXXY RYE!
A
vi
MODE PLAY
CH1 TO (IC650 15PIN)
CH2 FD (IC650 16PIN)
VR
CH1
VR
CH2
CH150mV
CH250mV
MODE
FOCUS
SEARCH
CH1
FD
(iC650
16PIN)
CH1
CH150mV
22RC026
MODE PLAY
CH1 TE (TP,TE)
CH2 FE (TP,FE)
A ims
CH150mV CH250mV
MODE PLAY
CH1 SPD (IC650 27PIN)
CH2 SLEQ (IC650 28PIN)
CH150mV CH250mV
MODE Forward Search (64 Track jump)
CH1 TE (TP, TE)
CH2 FEM+ (IC801 1PIN)
CH2
CH1
CH2
