6
3

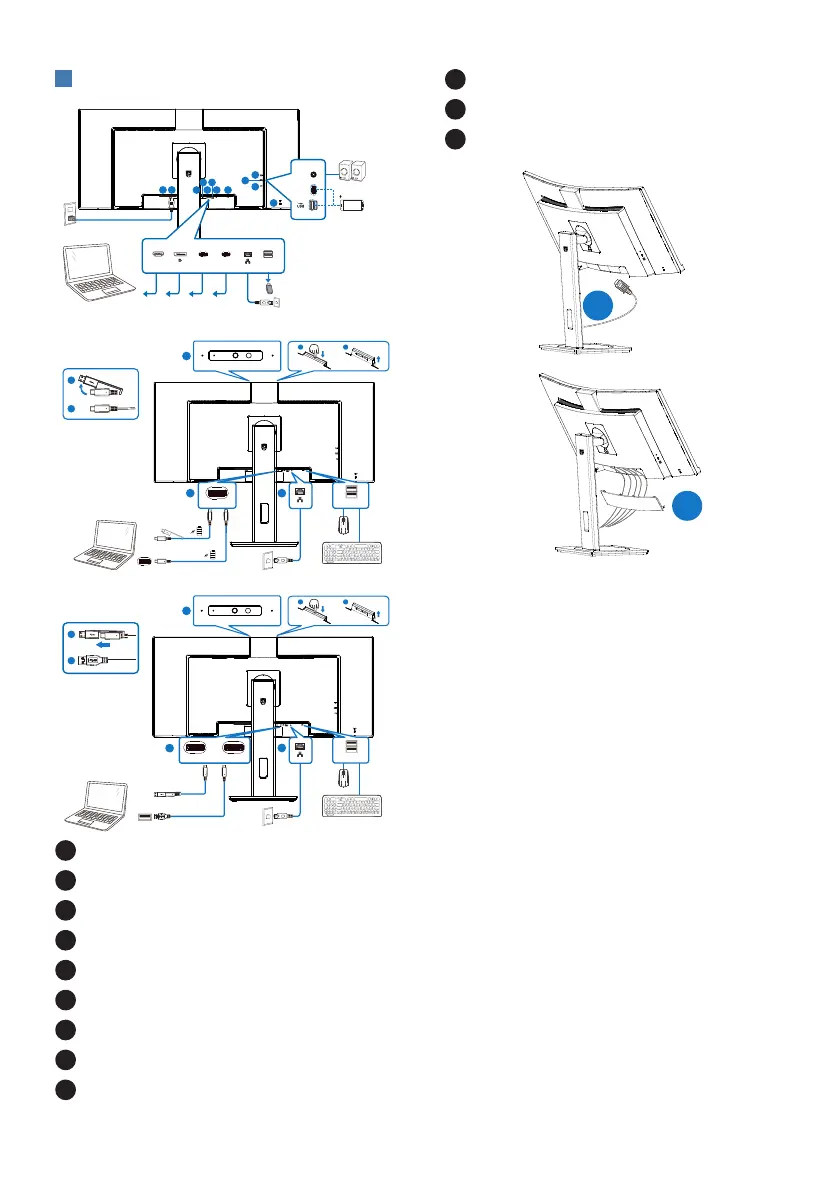

Connecting to your PC
USBC1 USBC2
(DATA )
HDMI USB
RJ45
USBC
(PD15W)
AUDIO
OUT
Fast Charger
21
3 5 7 8
9
11
12
4 6
10
USB docking (USB C-C)
OR
a
b
USBC1
USB Type-C
USB
a-1
a-2
c
1
2
USB hub (USB A-C)
OR
b
USB Type-A
USB
c
1
2
a
USBC1 USBC2
OR
a-1
a-2
1
Power Switch
2
AC power input
3
HDMI input
4
DisplayPort input
5
USBC1
6
USBC2(DATA)
7
RJ45 input
8
USB downstream
9
USB downstream/USB fast charger
10
USBC(PD 15W)
11
Audio Out
12
Kensington anti-theft lock
Connect to PC
1. Connect the power cord to the back
of the display rmly.
2. Turn o your computer and unplug
its power cable.
3. Connect the monitor signal cable to
the video connector on the back of
your computer.
4. Plug the power cord of your
computer and your monitor into a
nearby outlet.
5. After connecting cables, slide the
I/O cover into the slots on the rear
monitor and snap the I/O cover into
the place.
6. Turn on your computer and monitor.
If the monitor displays an image,
installation is complete.
7. Remove the rubber plug when using
USBC2(DATA) connector.
