2.3 Connections

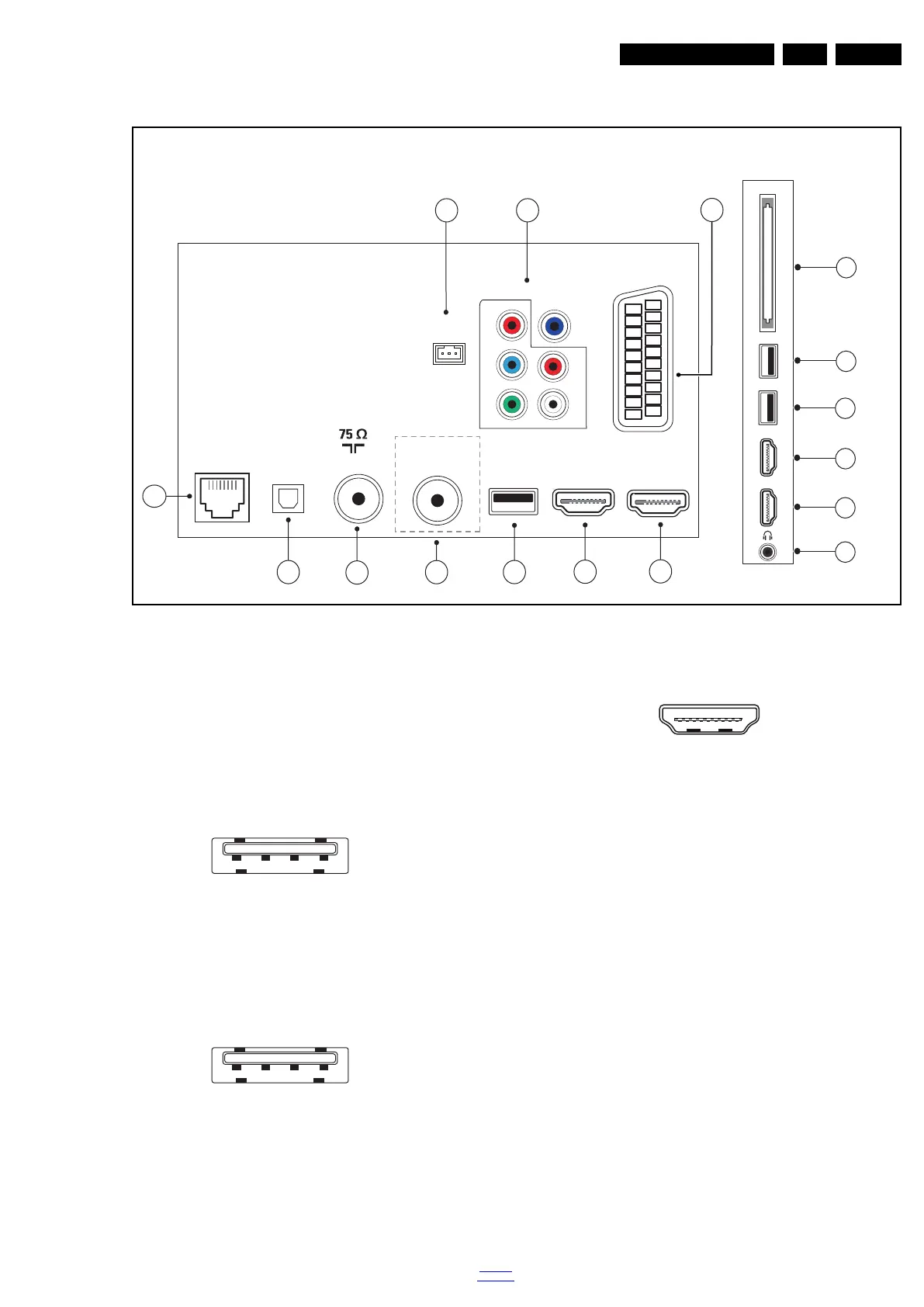

Figure 2-1 Connection overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
2.3.1 Side Connections
1 - Cinch: Digital Audio - Out
BK - Coaxial 0.4 - 0.6V
PP
/ 75 W kq
2 - USB3 2.0
Figure 2-2 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
3 - USB2 2.0
Figure 2-3 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
4- HDMI ARC/MHL: Digital Video - In, Digital Audio with
ARC - In/Out
Figure 2-4 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
HDMI 3 ARC
USB 3
USB 2
CI
NETWORK
TV ANTENNA
SERV.U
AUDIO IN
DVI
SCART
(RGB/CVBS)
(Optional)
R L
CVBS/Y Pb
Pr
DIGITAL
AUDIO OUT
SAT
HDMI 2
ARC
HDMI
1
ARC
HDMI 4 ARC/MHL
USB1
20050_001.eps
1
2
3
4
5
6
8
9
7
12
11
13
10
14
15
16
Side Connectors
Rear Connectors
1 2 3 4
10000_022_090121.eps
090121
1 2 3 4
10000_022_090121.eps
090121
10000_017_090121.eps
090428
19
1
18 2
