Technical Specs, Diversity, and Connections
EN 4 QM15.2E LA2.
2015-Sep-30
back to
div.table
2.3 Connections

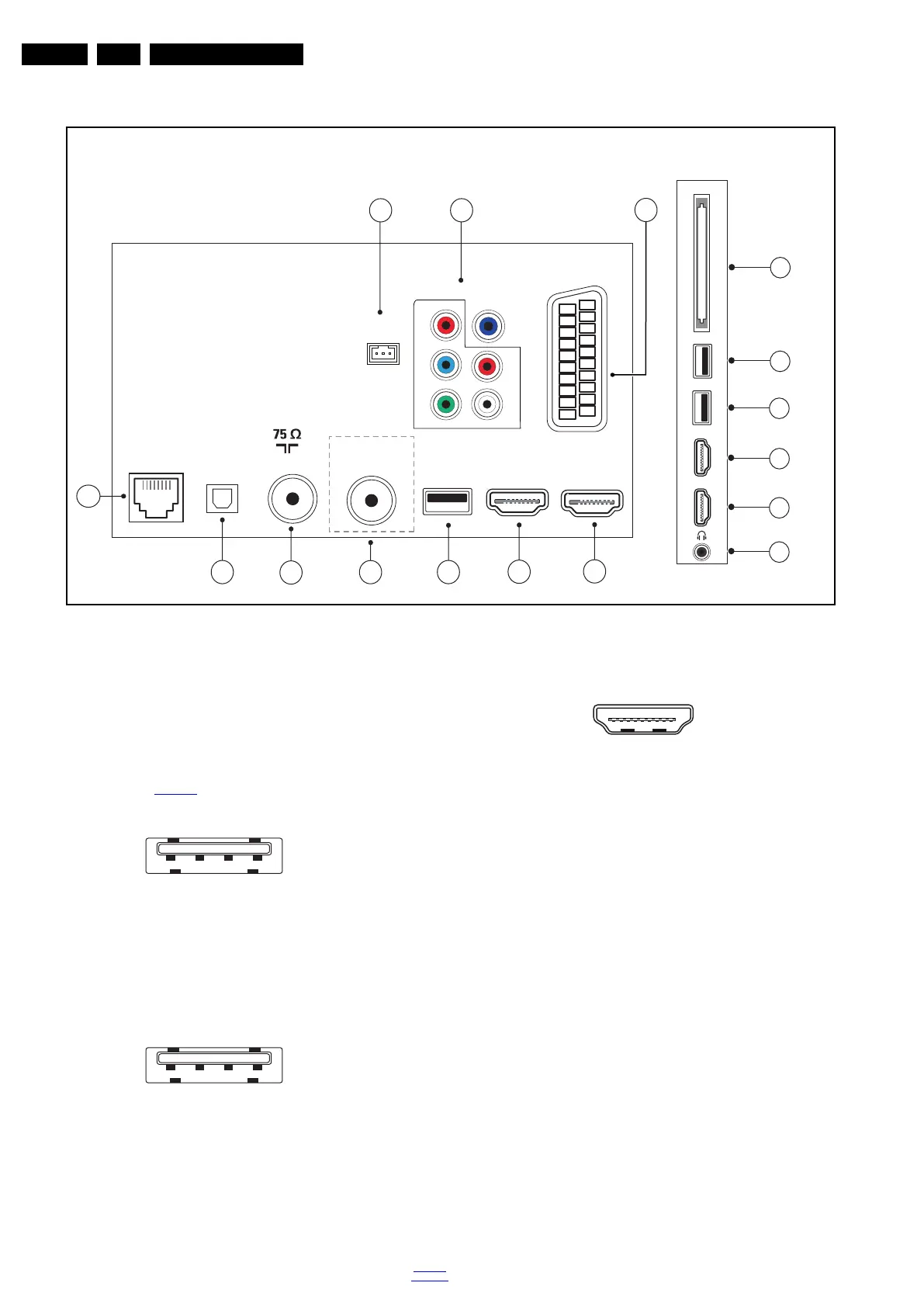

Figure 2-1 Connection overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
2.3.1 Side Connections
1 - Common Interface
68p - See figure 10-6-13
jk
2 - USB3 2.0
Figure 2-2 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gn d H
3 - USB2 2.0
Figure 2-3 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gn d H
4- HDMI ARC: Digital Video - In, Digital Audio with ARC -
In/Out
Figure 2-4 HDMI (type A) connector
1 - D2+ D ata channel j
2 - Shield Gnd H
3 - D2- D ata channel j
4 - D1+ D ata channel j
5 - Shield Gnd H
6 - D1- D ata channel j
7 - D0+ D ata channel j
8 - Shield Gnd H
9 - D0- D ata channel j
10 - CLK+ D ata channel j
11 - Shield Gnd H
12 - CLK- D ata channel j
13 - Easylink/CEC C ontrol channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL D DC clock j
16 - DDC_SDA D DC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
HDMI ARC
USB
3
USB
2
CI
NETWORK
TV ANTENNA
SERV.U
AUDIO IN DVI
SCART
(RGB/CVBS)
(Optional)
R L
CVBS/Y P b
Pr
DIGITAL
AUDIO OUT
SAT
HDMI 2
ARC
HDMI 1
ARC
HDMI ARC/MHL
USB1
19880_001.eps
1
2
3
4
5
6
8
9
7
12
11
13
10
14
15
16
Side Connectors
Rear Connectors
1 2 3 4
10000_022_090121.eps
090121
1 2 3 4
10000_022_090121.eps
090121
10000_017_090121.eps
090428
19
1
18 2
