EN 58TPS15.3A LA 11.
Styling Sheets
2015-Oct-23
back to
div.table
11. Styling Sheets

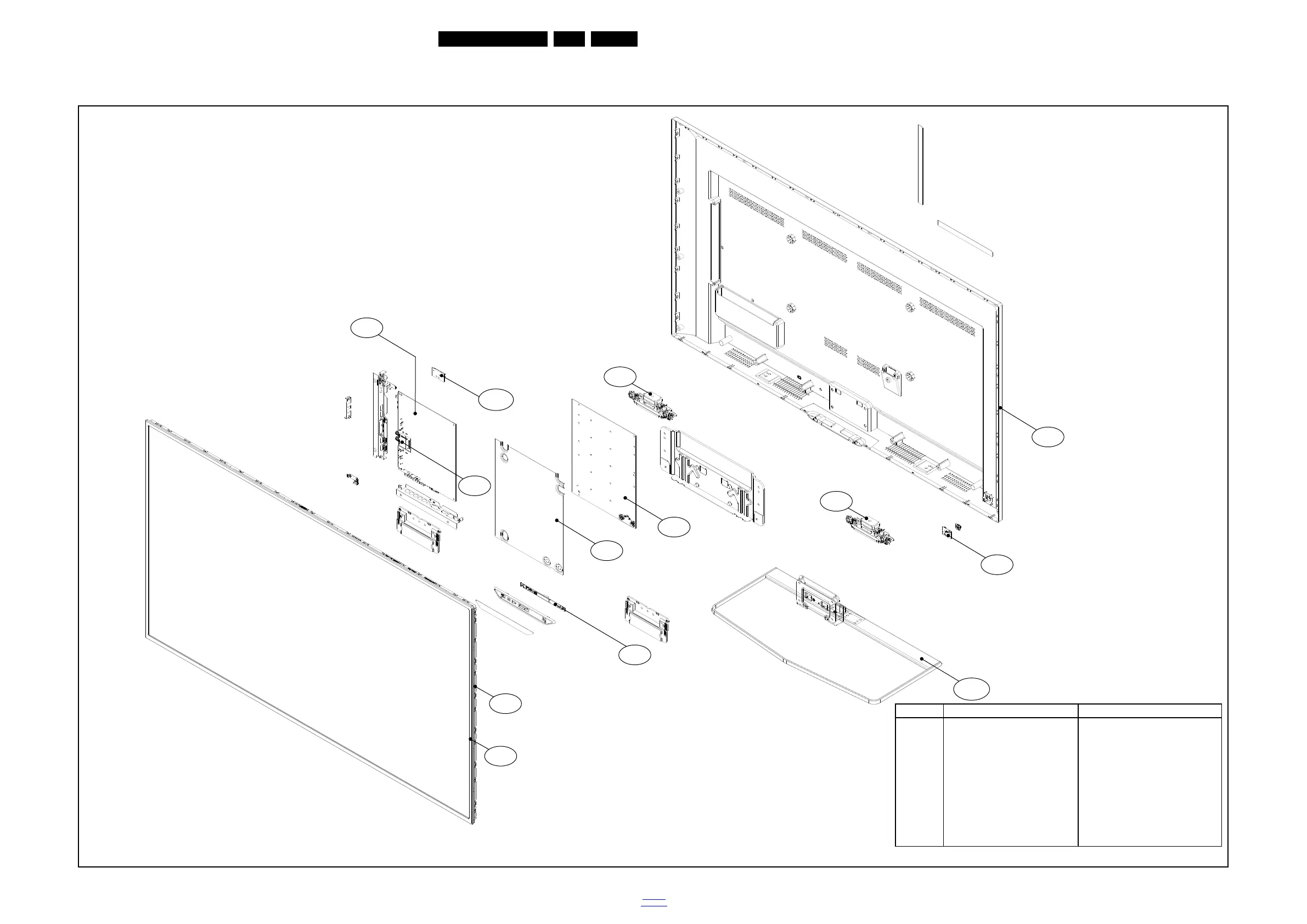

11.1 6600 series 49"
19980_800.eps
6600 series 49"
FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9
Pos No. Description Remarks
0030 Bezel
0040 Rear cover
0050 Stand Assy
0095 V0 Sheet
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1067 Tuner board
1176 Remote control Not displayed
1184 Speakers
WiFi01 WiFi_USB
0050
0095
0040
1054
1057
1050
1056
1184
1184
1053
0030
1067
WiFi01
