Philips 7629 - Page 19

Side I/O Panel Removal

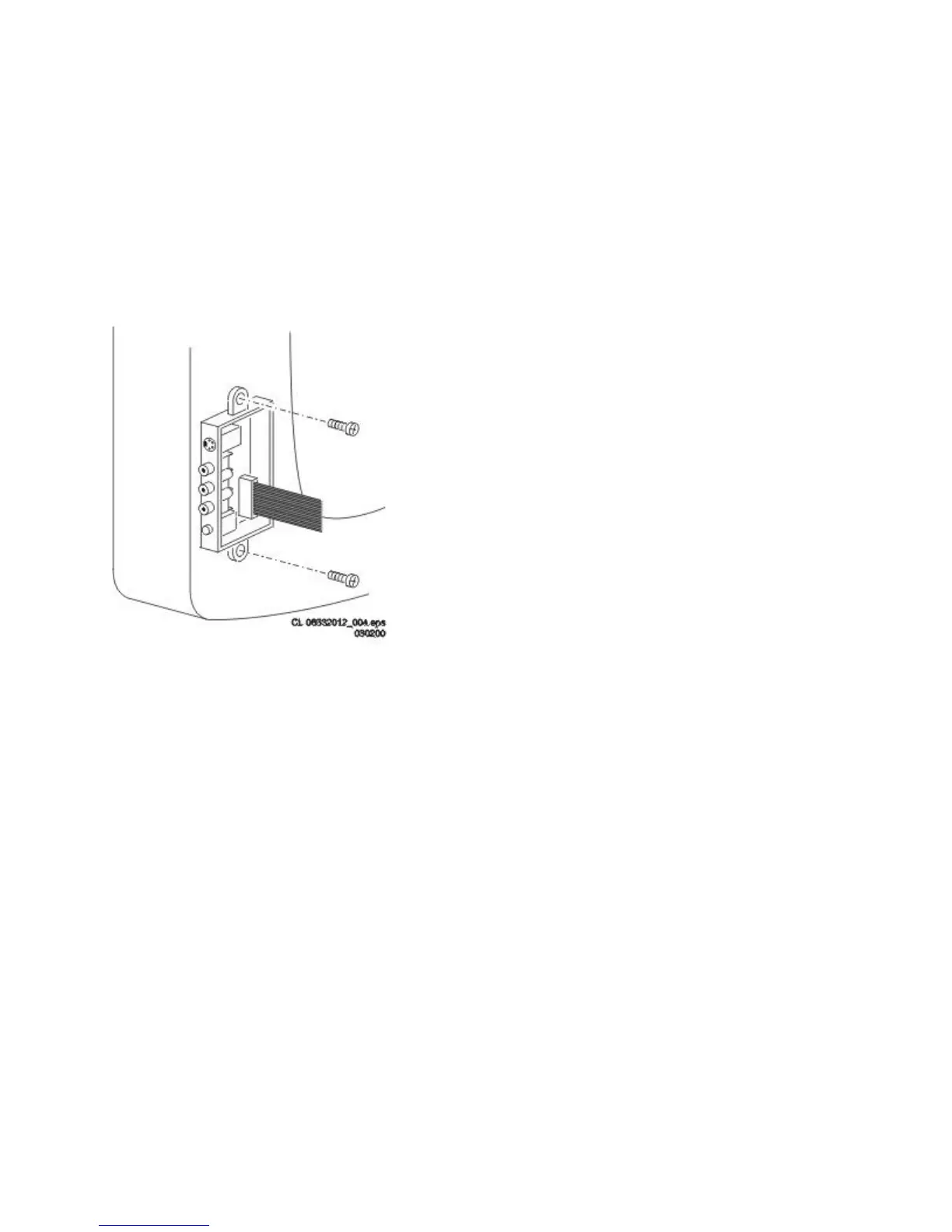

1. Remove the complete Side I/O assembly after unscrewing the 2 fixation screws.
2. Release the 2 fixation clamps and lift the board out of the bracket.
Figure:
Pip Module (If Present)
Service Position
1. Remove the module bracket from the bottom tray by pulling it backward.
2. Hook the bracket in the first row of the cabinet bottom. In other words: reposition
the bracket from [1] to [2].
