Figure:

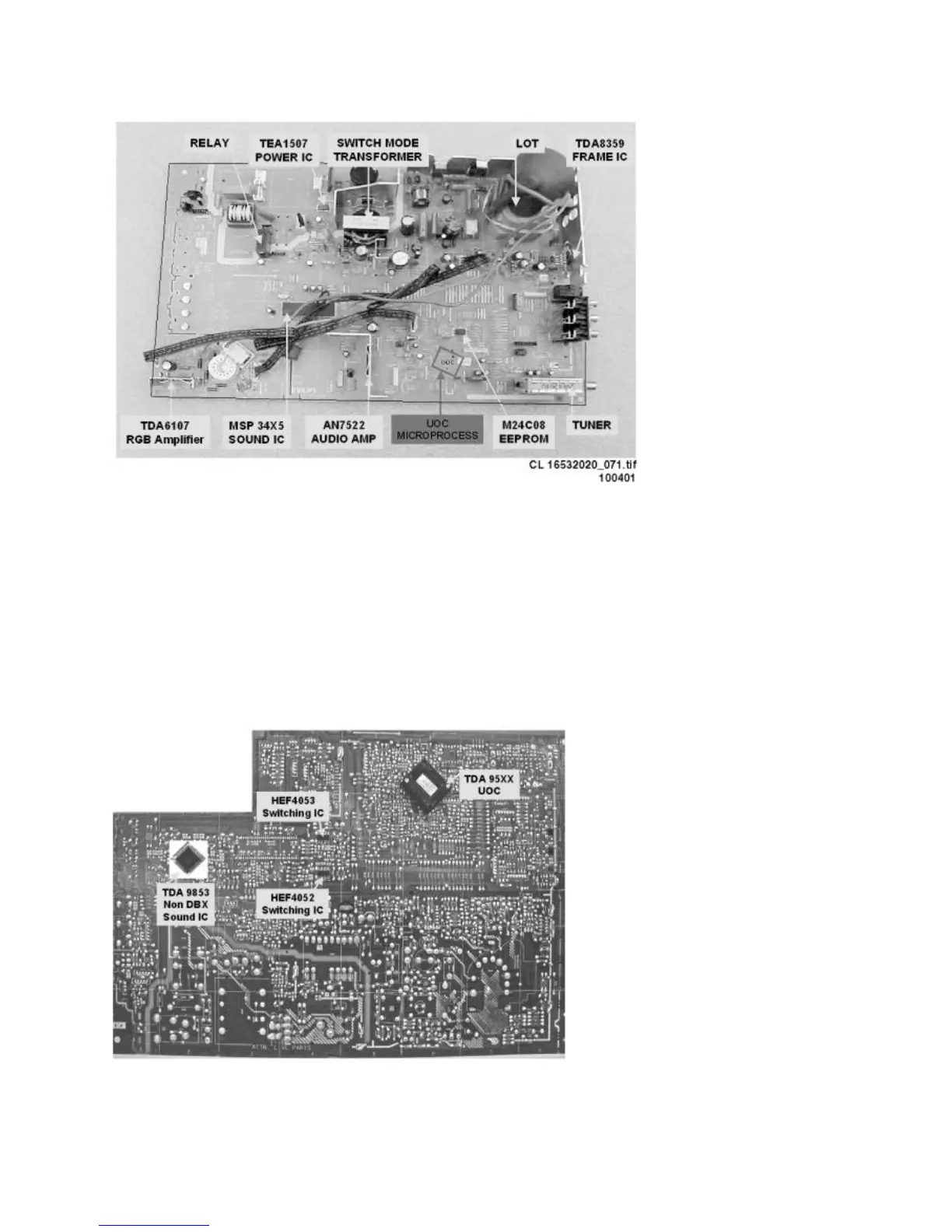

The functions for video processing, microprocessor (µP) and teletext (TXT) decoder are
combined in one IC (TDA958xH), the so-called Ultimate One Chip (UOC). This chip is
(surface) mounted on the copper side of the LSP.
Figure:
