Philips AX5301 - Remote Control Functions; Power and Battery Management; Battery Types and Installation

Batteries (supplied or optionally available)
For convenience, this model is designed with 2 different detachable battery doors.
This allows you to operate the player using 2 choices of battery size. You can use
the following batteries with this CD-player:
• alkaline batteries type AAA (LR03, UM4) or AA (LR6, UM3) preferably
Philips.
Notes:–
Old and new or different types of batteries should not be combined.
– Remove batteries if they are empty or if the player is not going to be used for
a long time.

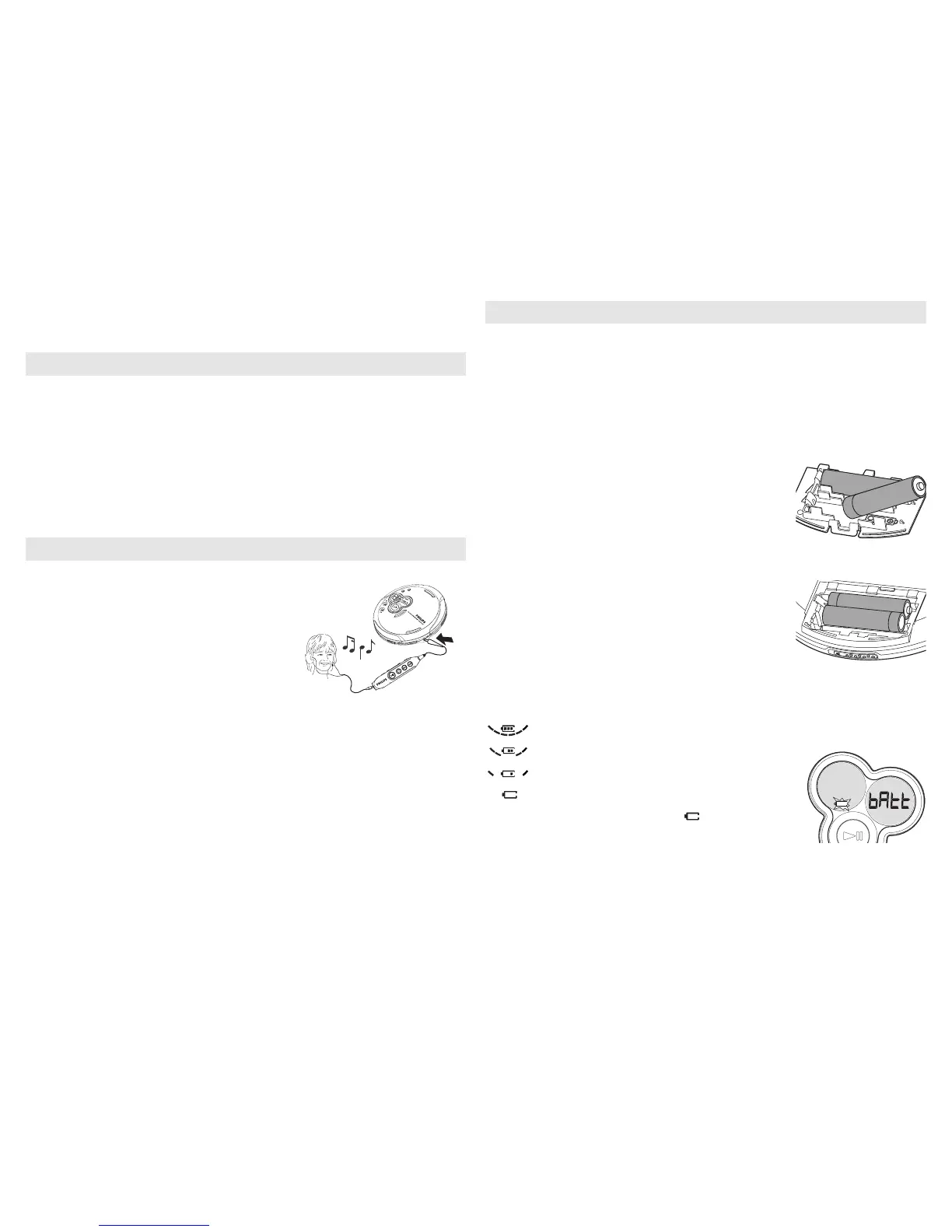

Inserting AAA (LR03, UM4) or AY 3363 batteries
1 Open the AAA battery door.
2 Insert AAA batteries as shown onto the back of the
door.
3 Replace the battery-loaded AAA door back onto the
set.
Inserting AA (LR6, UM3) batteries
To double playback time, insert AA batteries into the bat-
tery compartment and use the AA marked battery door.
•Open the battery compartment and insert either 2
normal or alkaline batteries.
Battery indication
The approximate power level of your batteries is shown in the display.
Battery full
Battery two-thirds full
Battery one-third full
Battery dead or empty. When the batteries are
dead or empty, the symbol flashes, bAtt
is displayed, and the beep tone sounds
repeatedly.
+
-
+
-
AA SIZE
LR6 / UM3
-
+
LR03/AAA /UM4
+
AAA (LR03, UM4)
AA (LR6, UM3)
CONTROLS / POWER SUPPLY
Remote Control AY 3785 ( see figure 2 )
1 p.........................3.5 mm headphone plug to connect to headphones socket
2 2; ......................switches the set on, starts playback and interrupts playback
3 9.........................stops playback and switches the set off
4 ∞ / § ...............skips and searches forward / backward tracks
5 HOLD...................locks all buttons (on the remote control only)
6 VOLUME
−−//++
......adjusts the volume
Connecting the remote control
Use the AY 3785 cord remote control.The buttons
on the remote control have the same functions as
the corresponding buttons on the set.
1 Press 9 twice to switch off the set.
2 Firmly connect the remote control to LINE
OUT/p on the set.
3 Firmly connect the headphones to the plug on
the remote control.
4 On the remote control press 2; to switch on the set and to start playback.
5 Adjust the volume on the CD player or your remote control.
Notes: – Check the HOLD switch on the remote control is adjusted to the off
position if you wish to operate the player using the remote control.
